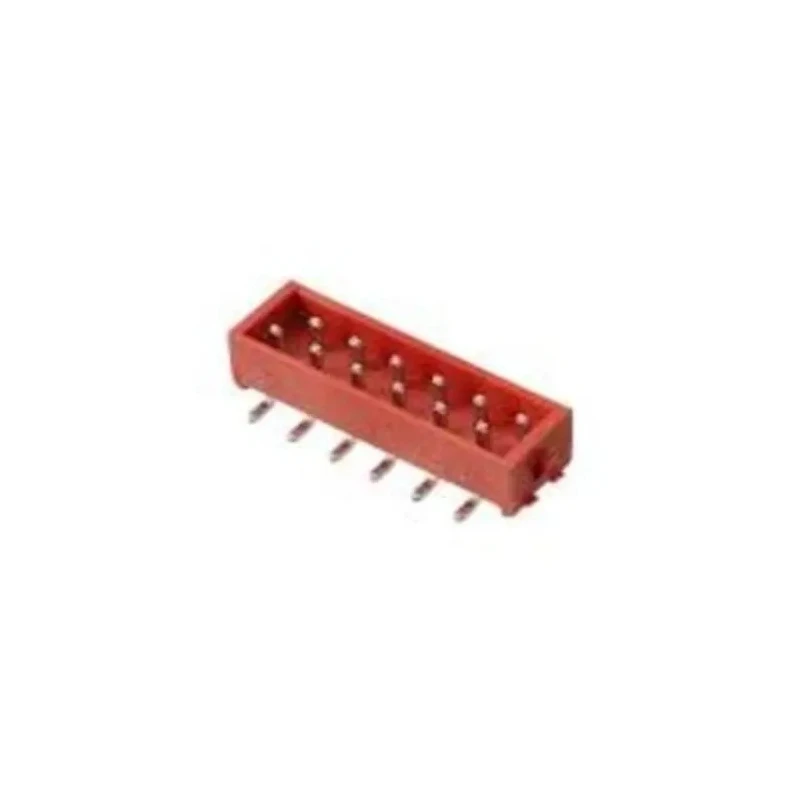

TE Connectivity Micro-MaTch Series Vertical Surface PCB Header, 12 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 8-338728-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Micro-MaTch Series Vertical Surface PCB Header, 12 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 8-338728-2

Name: TE Connectivity Micro-MaTch Series Vertical Surface PCB Header, 12 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 8-338728-2
Brand: TE Connectivity
SKU: 403410
Price: 3.18 USD
Availability: InStock



Category PCB Header Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	TE Connectivity
Orientation	Vertical
Current	1A
Mount Type	Surface
Housing Material	Polyamide 4.6
Contact Material	Copper Alloy
Series	Micro-MaTch
Termination Type	Surface Mount
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Standards/Approvals	EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL Rating Recognised
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board
Mating Pin Length	5.2mm

Key Features

This PCB header features a shrouded plug connector system with board-to-board connectivity.
It has a pitch of 1.27 mm and 12 male contacts organized in 2 vertical rows.
Constructed with polyamide 4.6 housing and copper alloy contacts plated in tin.
Designed for surface mount termination and suitable for mating pin length of 5.2 mm.
Operates reliably between -40°C and 105°C, rated for 1A current and 100V voltage.
Complies with EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, and UL Ratings.
Ideal for industrial electronic applications requiring robust and compact PCB connectors.

Product Description

TE Connectivity 8-338728-2 Micro-MaTch Series Vertical Surface PCB Header is a high-performance PCB connector with 12 contacts arranged in two rows and a 1.27 mm pitch. This shrouded, male connector is designed for board-to-board applications, offering reliable electrical contact and mechanical stability.

The housing is made of polyamide 4.6 which provides excellent durability and resistance to industrial environments. The contacts are fabricated from copper alloy and plated with tin to ensure optimal conductivity and corrosion resistance.

This connector supports surface mount technology with a mating pin length of 5.2 mm. It is designed to operate effectively within the temperature range of -40°C to 105°C, suitable for various industrial, commercial, and electronic applications.

The connector is rated to carry 1 ampere at 100 volts, making it appropriate for low power electronic assemblies. Its compact vertical orientation and shrouded design help prevent accidental disconnects and improve connector system reliability.

Standards compliance includes the EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, and UL recognition, ensuring environmental safety and quality assurance. This PCB header features a shrouded plug connector system with board-to-board connectivity.

It has a pitch of 1.27 mm and 12 male contacts organized in 2 vertical rows. Constructed with polyamide 4.6 housing and copper alloy contacts plated in tin. Designed for surface mount termination and suitable for mating pin length of 5.2 mm.

Operates reliably between -40°C and 105°C, rated for 1A current and 100V voltage. Complies with EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, and UL Ratings. Ideal for industrial electronic applications requiring robust and compact PCB connectors.

This product is part of the PCB Headers category on EnvMart and is suitable for use in electronic component manufacturing, power connectors, and board-to-board interface designs.
