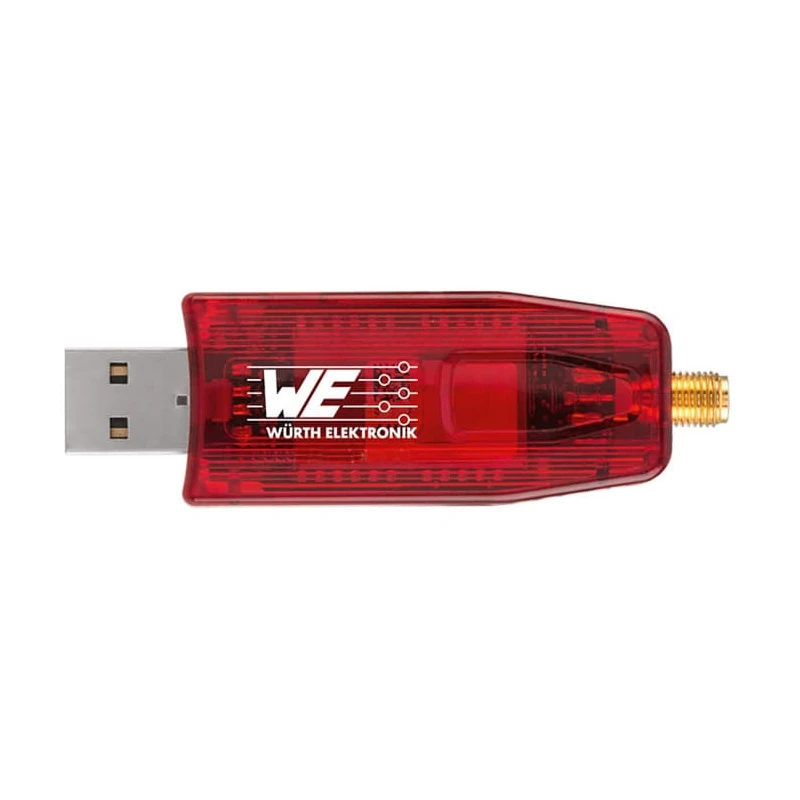

Wurth Elektronik RF Module FM USB Interface Telesto-I Series 3.6V 100kbps 2607056291001

Wurth Elektronik 2607056291001 RF Module FM is a compact, high-performance RF module with FM modulation, designed for communication and wireless applications. Operating with a USB interface, this Telesto-I series module features a proprietary module combined with a USB-UART converter IC that enables direct communication with a PC using a virtual COM port. This facilitates easy integration in various industrial and laboratory communication systems.

The module supports a maximum RF data rate of 100kbps and provides a maximum output power of -2dBm, suitable for applications requiring controlled RF transmission within the 915MHz SRD frequency band. It includes an external SMA antenna connector to enhance connectivity options. The receiver sensitivity rating of -106dBm allows for robust signal reception even in challenging environments.

This device operates at a minimum supply voltage of 3.6V and withstands harsh environments with an operating temperature range from -40°C to 85°C, making it ideal for industrial, manufacturing, commercial, and automation uses. The compact form factor with dimensions of 74mm in length, 23.65mm in width, and 12mm in height allows installation in space-constrained systems.

Though it has no specific safety approvals, the module meets regulatory requirements for reduced transmission power as specified by FCC, IC, and ARIB standards, ensuring compliance in multiple regions. The Telesto-I series RF module is manufactured in Germany, emphasizing quality and reliability.

The module operates at a minimum supply voltage of 3.6V for efficient power consumption. Supports a wide operating temperature range from -40°C to 85°C for industrial robustness. Features an external SMA antenna connector to support 915MHz SRD frequency band applications.

Maximum output power is -2dBm, ensuring controlled transmission strength. Receiver sensitivity of -106dBm enhances signal detection capability. Physical dimensions are compact: Length 74mm, Width 23.65mm, Height 12mm for easy integration.

Designed with a USB-UART converter IC allowing communication through a virtual COM port. Complies with FCC, IC, and ARIB standards for reduced transmission power regulations.

This Wurth Elektronik RF Module FM is suitable for use in industrial automation, communication systems, laboratories, and commercial wireless setups. Its robust specifications support reliable wireless data transmission and reception with ease of PC interface connectivity. Explore more RF modules and wireless communication solutions at EnvMart for comprehensive industrial and technical applications.
