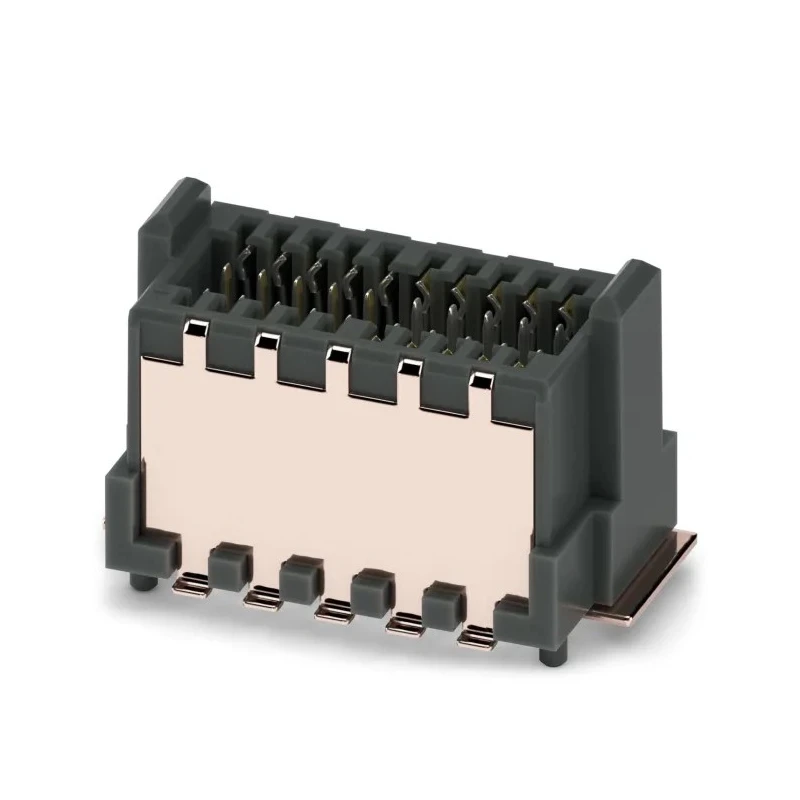

Phoenix Contact FP 0.8/20-MV-SH Series Surface PCB Header, 20 Contacts, 0.8 mm Pitch, 2 Rows, Shrouded 1053609

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact FP 0.8/20-MV-SH Series Surface PCB Header, 20 Contacts, 0.8 mm Pitch, 2 Rows, Shrouded 1053609

Name: Phoenix Contact FP 0.8/20-MV-SH Series Surface PCB Header, 20 Contacts, 0.8 mm Pitch, 2 Rows, Shrouded 1053609
Brand: PHOENIX CONTACT
SKU: 401093
Price: 7.23 USD
Availability: InStock



Category PCB Headers Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	China
Voltage	500V
Brand	Phoenix Contact
Current	1.7A
Model	1053609
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	FP 0.8/20-MV-SH
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	0°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold, Nickel
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board
Shielded SMD male connector, Nominal current at 20 °C	1.7 A, Test voltage: 500 V AC, number of positions: 20, pitch: 0.8 mm, colour: black, contact surface: Gold

Key Features

High nominal current capacity of 1.7 A ensuring reliable power transmission.
Compact 0.8 mm pitch suitable for dense PCB layouts.
Constructed with durable liquid crystal polymer housing for enhanced longevity.
Gold and nickel plated copper alloy contacts providing excellent conductivity and corrosion resistance.
Designed as a shielded SMD male connector for surface mounting applications.
Operates efficiently within 0°C to 125°C temperature range for varied environments.
Supports a test voltage of 500 V AC, ensuring electrical safety compliance.
Ideal for board-to-board connector systems in electronic and industrial equipment.

Product Description

Phoenix Contact 1053609 FP 0.8/20-MV-SH Series Surface PCB Header is engineered for high-performance electronic connectivity, featuring a robust design with 20 male contacts configured in 2 rows at a fine 0.8 mm pitch. The shrouded housing made from liquid crystal polymer provides excellent mechanical protection and resilience against environmental stresses.

This header supports a nominal current of 1.7 A at 20°C, withstanding test voltages up to 500 V AC, making it suitable for reliable power and signal transmission in demanding applications. Its gold and nickel plated copper alloy contacts ensure superior conductivity and resistance to corrosion, critical for long-term use in industrial, laboratory, and commercial electronics.

Designed as a shielded SMD male connector, it mounts on surface PCBs securely and efficiently, with a wide operating temperature range from 0°C up to 125°C, supporting diverse operating environments including industrial automation, manufacturing controls, and electronic assemblies.

Nominal current rating of 1.7 A ensuring stable electrical performance. Pitch of 0.8 mm supports high-density PCB configurations. Housing material liquid crystal polymer for enhanced durability and insulation. Gold and nickel plated copper alloy contacts for excellent signal integrity and corrosion resistance.

Surface mount technology compatible with modern assembly processes. Shielded design improves EMI/RFI resistance for sensitive applications. Wide operating temperature range from 0°C to 125°C. Test voltage up to 500 V AC for safe electrical operation.

This PCB header is broadly applicable in electronics manufacturing, assembly lines, telecommunications equipment, and other industrial electronic systems requiring compact and reliable board-to-board connections.

Discover more from Phoenix Contact’s extensive PCB connector solutions at EnvMart for your circuit design and manufacturing needs.
