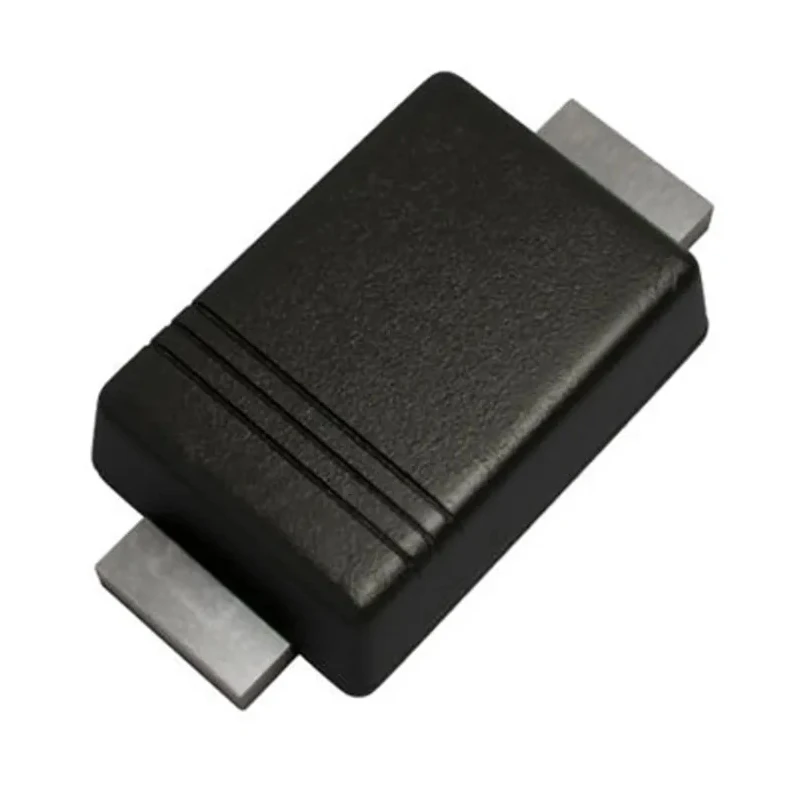

ROHM Schottky Diode 30 V 1 A Surface Mount Diode SOD-323HE RB168VAM-30TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.8mm |
| Length | 2.1mm |
| Model | RB168VAM-30TR |
| Width | 1.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323HE |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 0.3μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5A |
| Maximum Forward Voltage Vf | 0.73V |
Key Features
- This diode features a 2-pin SOD-323HE package suitable for compact PCB layouts.
- It has a peak non-repetitive forward surge current rating of 5 A allowing short overload handling.
- The maximum forward voltage drop is 0.73 V, contributing to low power loss.
- Designed with a small mold type PMDS construction for high reliability and super low reverse leakage current.
- It supports an operating temperature up to 150°C for demanding environments.
- Complies with RoHS standards and meets automotive standard AEC-Q101.
Product Description
ROHM RB168VAM-30TR is a high-performance Schottky diode designed for surface mount technology. It features a compact 2-pin SOD-323HE package with dimensions of 2.1 mm length, 1.5 mm width, and 0.8 mm height, making it ideal for space-constrained electronics.
This diode supports a maximum continuous forward current of 1 A and withstands a peak reverse repetitive voltage of 30 V, ensuring robust protection in power management and switching circuits.
The device’s peak non-repetitive forward surge current is rated at 5 A, enabling it to handle transient current surges without damage. Its maximum forward voltage of 0.73 V ensures efficient power conversion with minimal losses.
Engineered for reliability, the small mold type PMDS construction provides super low reverse current (IR), enhancing device longevity and performance stability in automotive, industrial, and consumer electronics applications.
The RB168VAM-30TR operates safely up to 150°C, making it suitable for demanding industrial and automotive temperature environments. It conforms to the RoHS directive for environmentally conscious design and meets the AEC-Q101 automotive standard for automotive-grade components.
Compact 2-pin SOD-323HE surface mount package optimized for PCB space saving. Maximum continuous forward current of 1 A for reliable conduction capabilities. Peak reverse repetitive voltage of 30 V provides effective voltage blocking.
Low forward voltage drop of 0.73 V enhances power efficiency. High surge current tolerance with 5 A peak non-repetitive forward surge current rating. Small mold construction for durability and low reverse leakage current.
Operates reliably at high temperatures up to 150°C. Compliant with RoHS and meets automotive AEC-Q101 standards.
This Schottky Diode is ideal for industrial, automotive, and electronic applications requiring efficient switching, power rectification, and voltage clamping. EnvMart customers can rely on ROHM’s RB168VAM-30TR for high performance and robust reliability in a compact footprint. Browse more semiconductor and diode products in the Electronics & Electricals category at EnvMart for complementary components and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the RB168VAM-30TR is 1 A.
This model has a peak reverse repetitive voltage rating of 30 V.
The diode can operate safely at temperatures up to 150°C.
The maximum forward voltage drop is 0.73 V, contributing to low power loss.
It comes in a compact 2-pin SOD-323HE package, which is suitable for surface mounting.
The diode has a peak non-repetitive forward surge current rating of 5 A, allowing it to handle transient current surges.
The dimensions of the diode are 2.1 mm in length, 1.5 mm in width, and 0.8 mm in height.
It meets the automotive standard AEC-Q101, making it suitable for automotive applications.
The peak reverse current is rated at 0.3 μA, indicating low reverse leakage current.
Yes, the RB168VAM-30TR complies with RoHS standards for environmentally conscious design.
This model is a Schottky rectifier, known for its efficient switching and low forward voltage drop.
It is suitable for industrial, automotive, and consumer electronics applications requiring efficient switching and power rectification.
