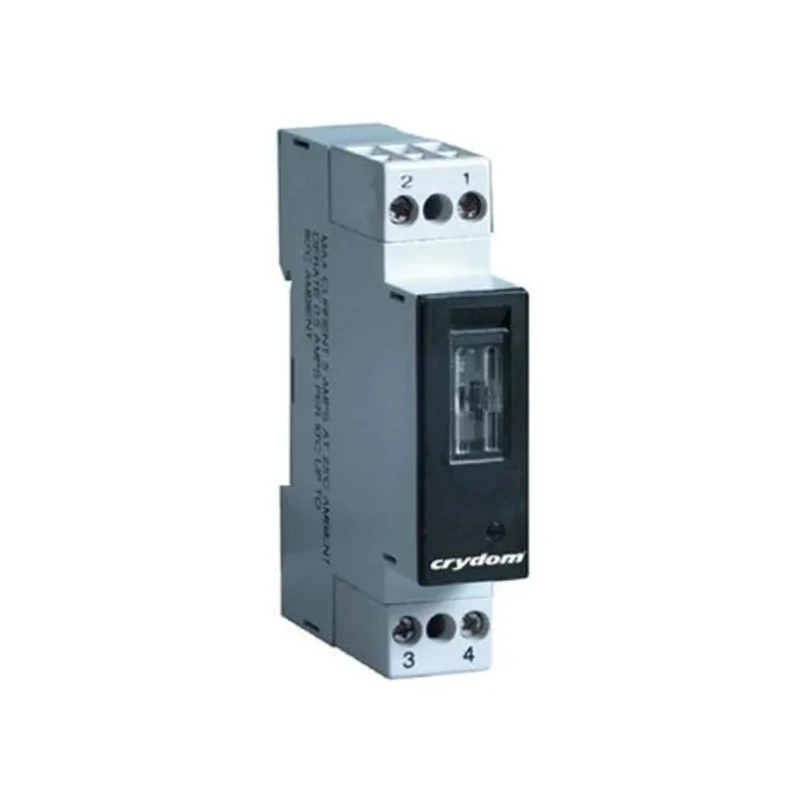

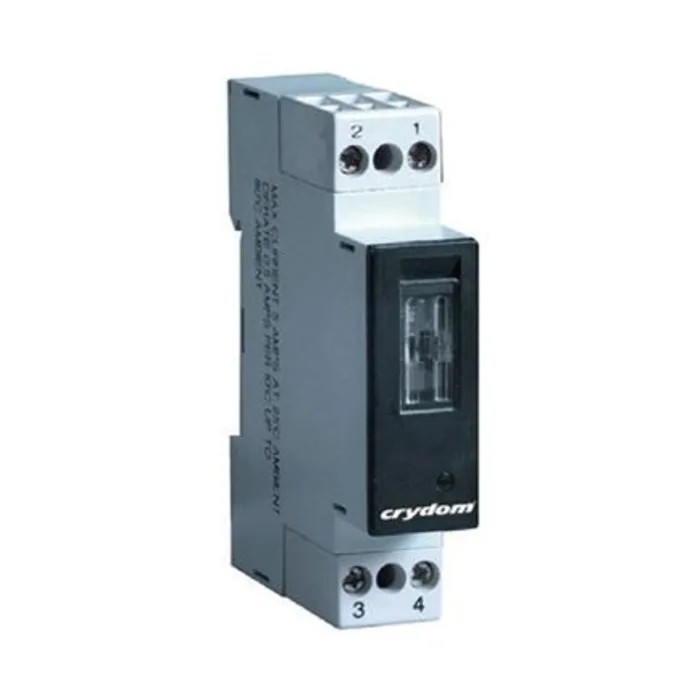

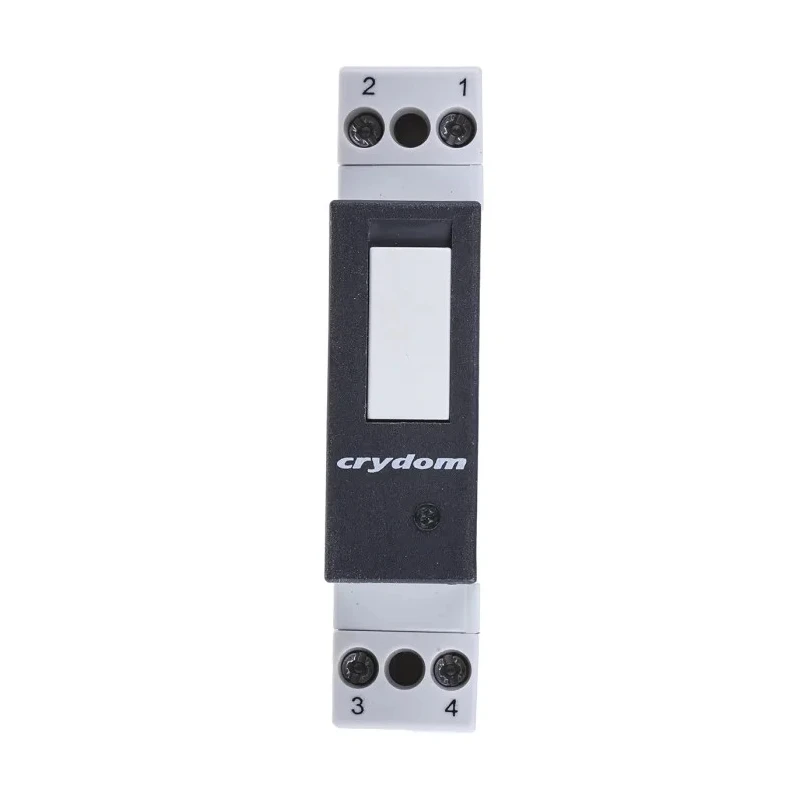

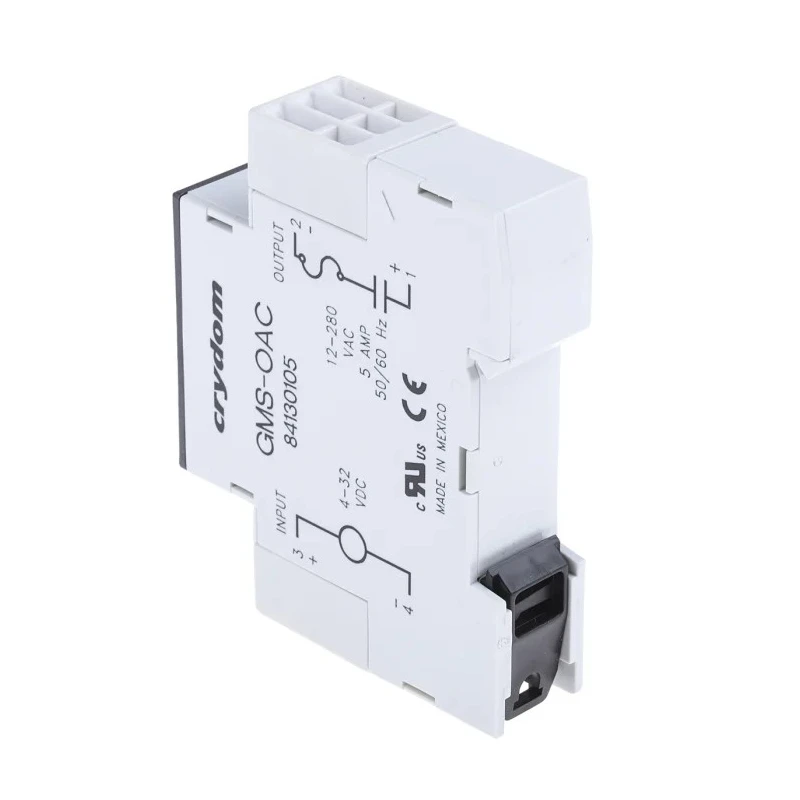

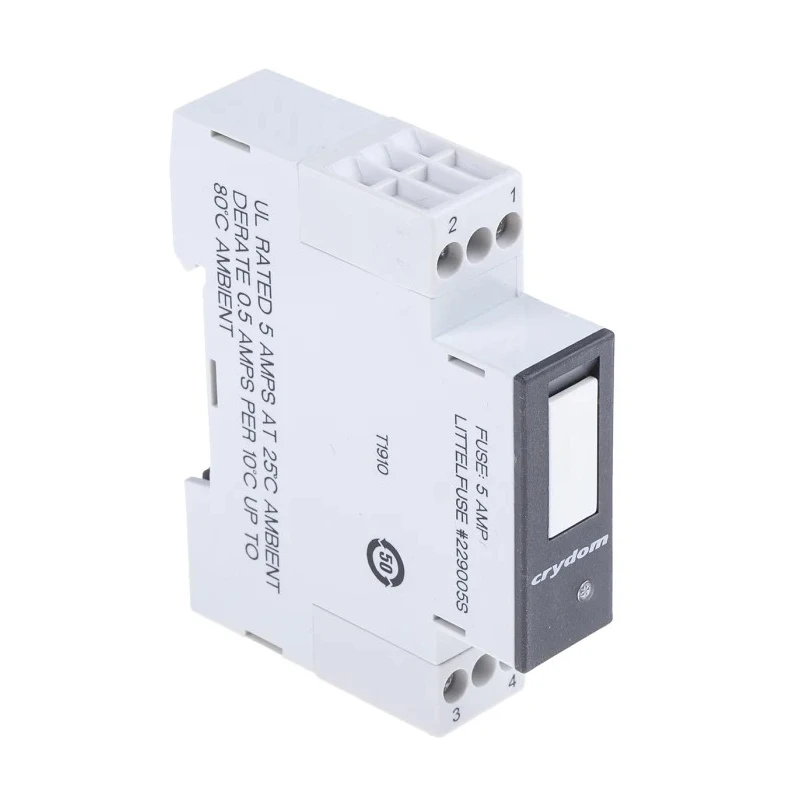

Crydom GMS Series Solid State Relay 5A Load 280V AC Load 32V DC Control DIN Rail Mount 84130105
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 81mm |
| Length | 17.5mm |
| Model | 84130105 |
| Mount Type | DIN Rail |
| Series | GMS |
| Maximum Operating Temperature | 80°C |
| Capacitance | 6pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 5A |
| Standards/Approvals | CE, UL |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 12V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.1mArms |
| Sensata / Crydom DRA Solid State Interface Relay, Control | 32V dc DIN Rail ScrewBrand: Sensata / Crydom |
| Crouzet Interface Relay ModuleBrand | Crouzet |
Key Features
- This relay supports a maximum load voltage of 280V AC for versatile power management.
- The control voltage range from 4V DC to 32V DC enables flexible interfacing with control circuits.
- Zero Cross Switching function reduces electrical noise and extends relay life.
- Compact dimensions of 81mm height and 17.5mm length optimize panel space usage.
- Operating temperature range from -30°C to 80°C suits harsh environmental conditions.
- Equipped with a screw terminal type for secure wiring connections.
- LED indicator provides easy visual diagnostics during operation.
- Optical isolation at 4kV prevents interference between control and load circuits.
Product Description
Crydom 84130105 Solid State Relay, part of the GMS series, is designed for robust industrial automation and control systems requiring reliable power switching. It operates with a maximum load current of 5A and supports AC loads up to 280V, making it ideal for motor control, heating elements, and other low-power devices.
The relay features a DIN rail mount for easy integration into control panels and screw terminals for secure electrical connections. It utilizes zero cross switching technology to minimize electrical noise and switching transients, enhancing system longevity and performance.
Operating efficiently between -30°C and 80°C, this relay performs reliably in extreme environmental conditions. The built-in LED indicator allows for quick status monitoring, simplifying troubleshooting.
With an optical isolation rating of 4kV and low I/O capacitance (8pF), the relay ensures clear signal integrity and protection against interference between input and output circuits. The compact size and lightweight design (31.2 grams) reduce panel clutter and mechanical load on mounting equipment.
Certified to CE and UL standards, it meets quality and safety regulations, making it suitable for industrial, commercial, and automation applications such as water and gas metering, industrial motor control, and general signal conditioning.
LED indicator for visual diagnostics. 4kV optical isolation for input-output interference prevention. Low I/O capacitance of 8pF for reliable signal transmission. Compact and lightweight design for flexible installation.
Wide operating temperature range from -30°C to +80°C. DIN rail mounting for easy integration into control panels. Screw terminal connections for enhanced electrical security. Zero Cross Switching function for reduced electrical noise.
CE and UL certified for safety and reliability. Ideal for industrial automation and control applications. Explore the full range of Crydom Solid State Relays at EnvMart for dependable industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load voltage for this model is 280V AC, allowing for versatile power management in various applications.
It supports a control voltage range from 4V DC to 32V DC, enabling flexible interfacing with control circuits.
This solid state relay can handle a maximum load current of 5A, making it suitable for low-power devices.
The relay has a height of 81mm and a length of 17.5mm, which helps optimize panel space usage.
Zero cross switching reduces electrical noise and switching transients, which enhances system longevity and performance.
It operates efficiently within a temperature range of -30°C to 80°C, making it suitable for harsh environmental conditions.
This model is designed for DIN rail mounting, facilitating easy integration into control panels.
It is equipped with screw terminals, ensuring secure wiring connections for reliable operation.
This solid state relay is certified to CE and UL standards, meeting quality and safety regulations for industrial applications.
It features an optical isolation rating of 4kV, which prevents interference between control and load circuits.
This unit weighs 31.2 grams, contributing to its compact and lightweight design for flexible installation.
It is suitable for applications such as motor control, heating elements, and general signal conditioning in industrial automation.
