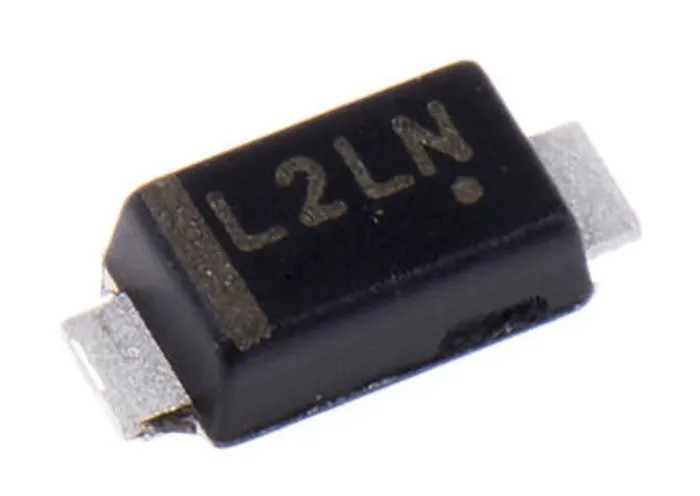

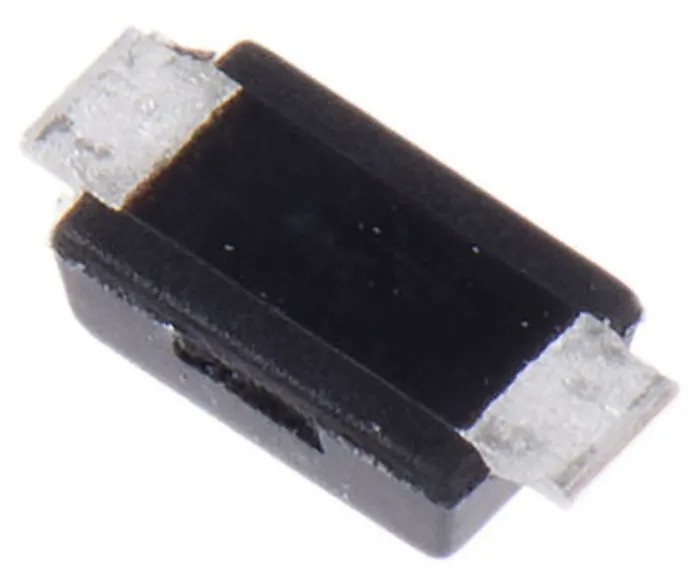

ROHM 200 V 700 mA Fast Recovery Diode, Single Configuration, 2-Pin SOD-123 Package RF071MM2STR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.8mm |
| Length | 2.6mm |
| Model | RF071MM2STR |
| Width | 1.6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 700mA |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 15A |
| Maximum Forward Voltage Vf | 850mV |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- Compact SOD-123 surface mount package ideal for high-density PCB designs.
- Fast recovery rectifier type with 25 ns peak reverse recovery time.
- Single diode configuration suitable for efficient switching applications.
- Maximum forward voltage drop of 850 mV ensuring low power loss.
- Peak reverse current of 10 μA providing reliable reverse blocking.
- Supports surge currents up to 15 A peak non-repetitive forward surge current.
- Operates safely up to 150°C maximum operating temperature.
- No compliance or automotive certifications declared.
Product Description
ROHM RF071MM2STR is a fast recovery diode designed for surface mounting applications in electronics manufacturing. It offers a peak reverse repetitive voltage of 200 V and can continuously conduct forward currents up to 700 mA, making it suitable for power rectification and switching circuits.
This diode features a compact SOD-123 2-pin package, providing a small footprint with dimensions 2.6 mm length, 1.6 mm width, and 0.8 mm height, compatible with high-density PCB layouts in industrial and consumer electronics.
Its fast recovery rectifier type construction ensures a peak reverse recovery time of only 25 ns, which minimizes switching losses and improves efficiency in high-frequency operation.
The device handles surge currents up to 15 A peak non-repetitive forward surge, allowing transient tolerance in demanding applications. The maximum forward voltage drop of 850 mV reduces power dissipation during conduction.
The diode’s peak reverse current is limited to 10 microamperes, ensuring high reliability and performance in reverse blocking scenarios. Operating temperatures up to 150°C allow the diode to function reliably in elevated thermal conditions typical for automotive, industrial, and consumer electronic environments.
This component finds use in power supplies, inverters, motor drives, industrial automation, lighting ballasts, and other fast switching and rectification applications in the electronics and electrical industries.
Compact SOD-123 surface mount package. Fast recovery time of 25 ns. Maximum forward voltage of 850 mV. High surge current capability of 15 A. Wide operating temperature up to 150°C. Explore our extensive range of semiconductor components and diodes at EnvMart for reliable industrial-grade electronic solutions.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage of this diode is 200 V.
This model can continuously conduct forward currents up to 700 mA.
The peak reverse recovery time is 25 ns, which helps minimize switching losses.
The maximum forward voltage drop is 850 mV, ensuring low power loss during operation.
The SOD-123 package dimensions are 2.6 mm in length, 1.6 mm in width, and 0.8 mm in height.
This diode supports surge currents up to 15 A peak non-repetitive forward surge current.
The maximum operating temperature is 150°C, allowing it to function reliably in elevated thermal conditions.
The peak reverse current is limited to 10 μA, providing reliable reverse blocking performance.
This model is designed for surface mounting applications.
It is commonly used in power supplies, inverters, motor drives, industrial automation, and lighting ballasts.
The diode configuration is single, suitable for efficient switching applications.
This model is a fast recovery rectifier type, designed for high-frequency operation.
