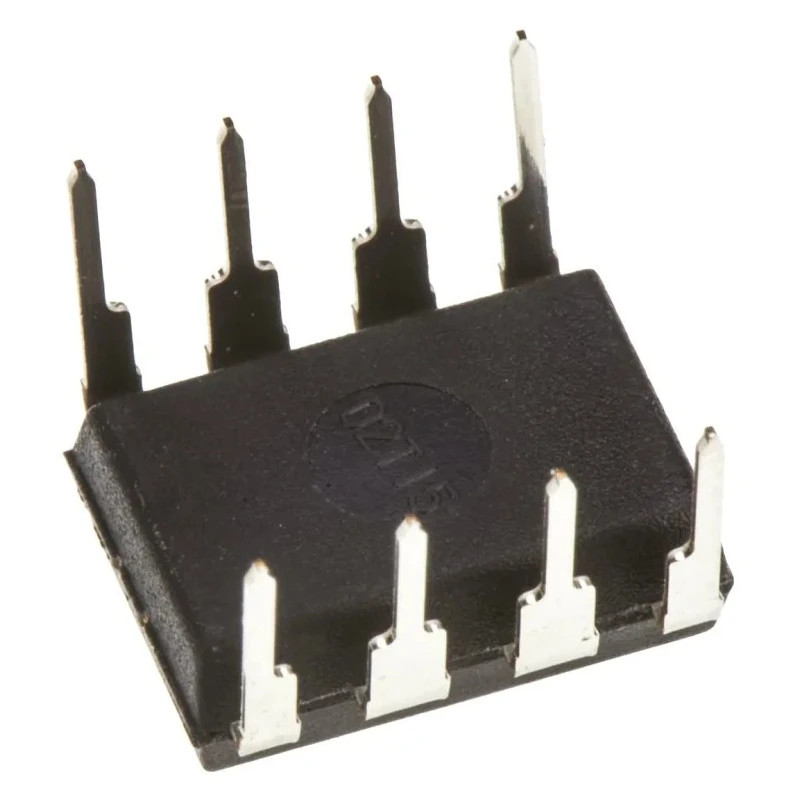

Texas Instruments Operational Amplifier Dual Channel 1.7 MHz Gain Bandwidth 16V PDIP 8-Pin TLC252CP

Texas Instruments TLC252CP is a dual channel operational amplifier designed for precision analog electronics. Featuring a gain bandwidth product of 1.7 MHz, it delivers efficient amplification across a wide frequency range. The device supports a minimum supply voltage of 3V and a maximum of 16V, making it compatible with varied power supply requirements.

Housed in an 8-pin PDIP package with through hole mounting, the TLC252CP offers easy integration into printed circuit boards. It features a low input offset voltage of 12 mV and low input bias current of 600 pA, which together ensure accurate signal amplification with minimal distortion or drift.

The amplifier's slew rate of 3.6 V/µs enables it to handle rapid changes in input signals efficiently. It operates reliably across a temperature range of 0°C to 70°C, ideal for industrial, laboratory, and consumer electronics environments.

Measuring 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, the compact footprint suits space-limited applications. Its linCMOS design emphasizes low power consumption while maintaining high performance.

Dual channel operational amplifier with low power consumption. 1.7 MHz gain bandwidth product for precise frequency response. Wide supply voltage compatibility from 3V to 16V. Low offset voltage and bias currents for minimal signal errors.

Through hole mounting in PDIP 8-pin package for versatile PCB layout. Slew rate of 3.6 V/µs supports fast signal changes. Operating temperature range from 0°C to 70°C ensures stable operation. Compact dimensions enable use in space-constrained designs.

This operational amplifier is commonly used in instrumentation, signal conditioning, analog computation, and general amplification tasks within industrial automation, laboratory instrumentation, and embedded electronics systems. Its robust electrical characteristics and packaging make it a reliable choice for a wide variety of electronic design applications.
