Texas Instruments Operational Amplifier 4.5 MHz, 5-Pin SC-70 Surface Mount, 3V-12V Supply LMV841MG/NOPB

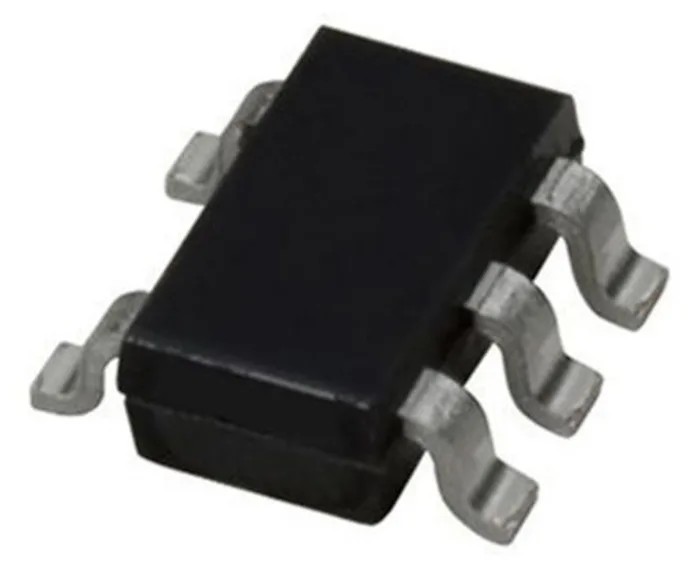

Texas Instruments LMV841MG/NOPB is a low voltage CMOS operational amplifier designed for high performance in compact applications. Featuring a gain bandwidth product of 4.5 MHz, it delivers reliable amplification with low input bias current and fast slew rate. Housed in a small 5-pin SC-70 surface mount package, this device operates from 3 volts up to 12 volts, suitable for various analog signal processing tasks.

Its operating temperature range of -40°C to 125°C makes it robust for demanding environments requiring stable operation across industrial temperature ranges. The ultra-low input bias current of 300 picoamperes and input offset voltage of 800 microvolts help in achieving high precision in analog circuits. With output current capability of 15 milliamperes, it can comfortably drive loads common in sensor signal conditioning, instrumentation, and portable devices.

This operational amplifier complies with RoHS standards, ensuring environmental safety and compatibility with modern manufacturing processes. The SC-70 package allows for automated surface mount technology placement, reducing PCB manufacturing times and costs.

Applications include industrial instrumentation, consumer electronics, data acquisition systems, and medical equipment where reliable, low power analog amplification is essential. This single-channel amplifier features a gain bandwidth product of 4.5 MHz.

Operates with a minimum supply voltage of 3 volts and maximum supply up to 12 volts. Input bias current is ultra-low at 300 picoamperes enhancing signal integrity. Slew rate of 2.5 volts per microsecond supports fast output changes.

Designed to operate in temperatures ranging from -40°C to 125°C. Compact package size measuring 2 mm length, 1.25 mm width, and 0.9 mm height. Output current capability of up to 15 milliamperes ensures drive strength. The device is RoHS compliant and suitable for surface mount PCB assembly.

Non-automotive standard device ensuring standard commercial electronic applications. Explore EnvMart's extensive range of semiconductor Operational Amplifiers suitable for industrial and commercial electronics design and development projects.
