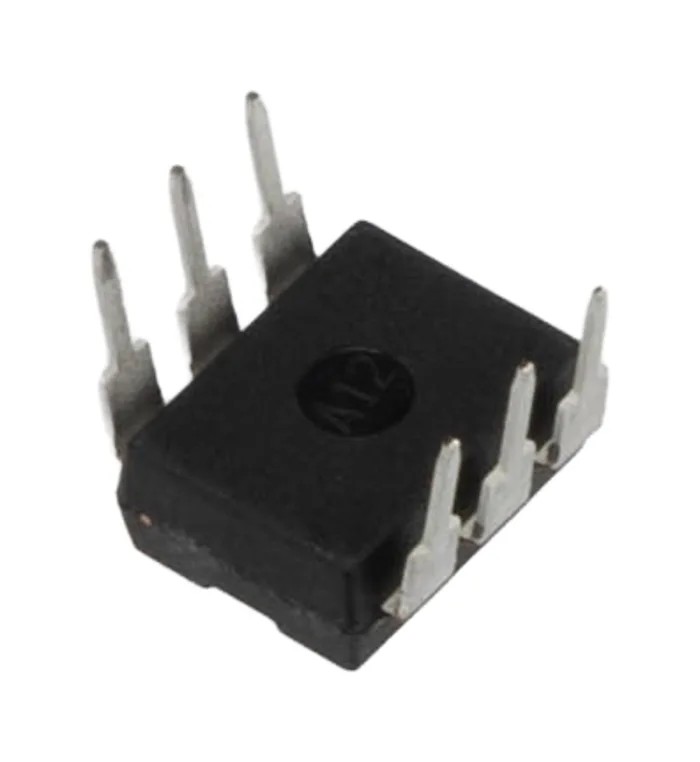

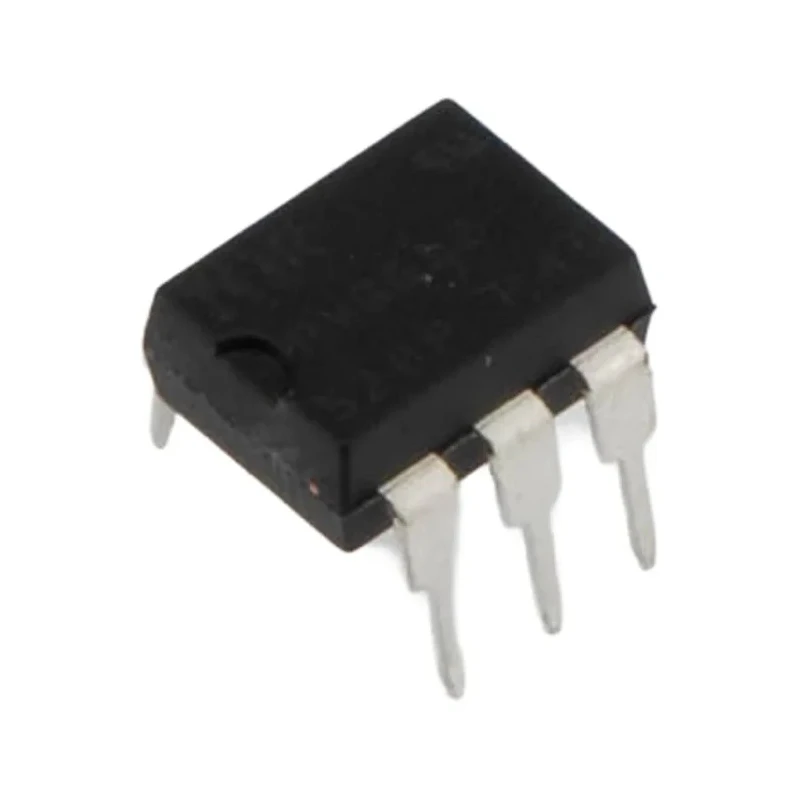

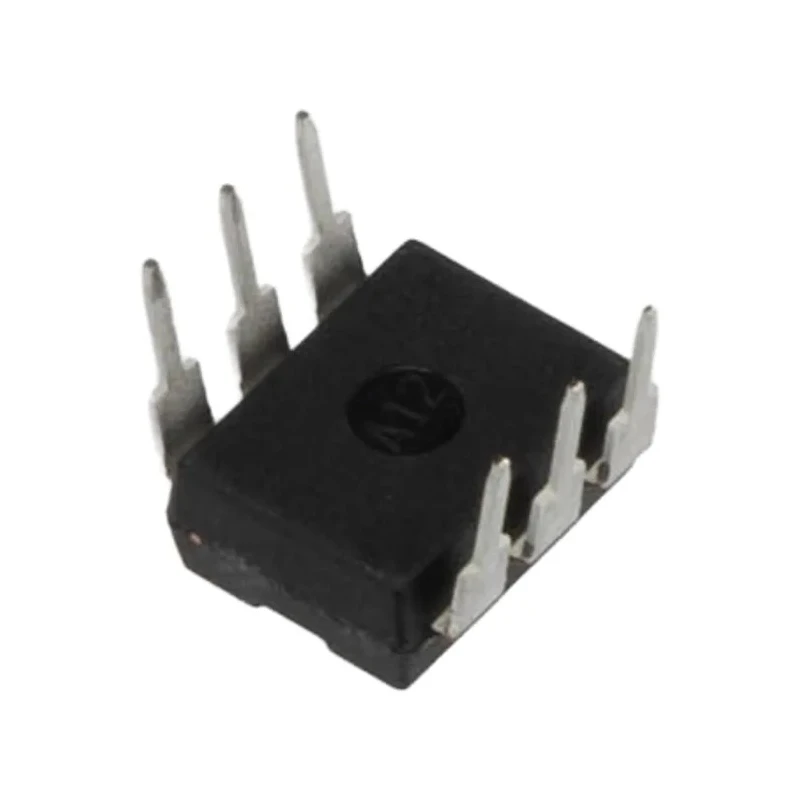

Infineon Solid State Relay PVG612 Series, 2 A Load, PCB Mount, 60 V Load PVG612

The Infineon PVG612 Series Solid State Relay provides a compact and reliable solution for general purpose analogue signal switching applications in industrial and automation environments. With a maximum load current capability of 2 A and a load voltage of up to 60 V, this relay is designed for PCB mount installation, featuring a PDIP package ensuring ease of use in printed circuit board assemblies.

The relay is a single pole, normally open type with SPST contact configuration, using Infineon's HEXFET power MOSFET technology for transistor output switching, allowing fast and bounce-free operation. This provides improved longevity compared to electromechanical relays, with solid-state reliability in harsh industrial conditions.

Designed to operate reliably across a wide temperature range from -40°C to 85°C, the PVG612 series offers excellent isolation with 4,000 VRMS I/O isolation and low off-state leakage thanks to its 1,000 V/μsec dv/dt rating. It incorporates a novel photovoltaic generator inside, enabling efficient transistor driving with minimal input current requirements, enhancing signal sensitivity and reducing power consumption.

The compact PDIP package measures 8.6 mm in length, 6.5 mm in width, and 3.4 mm in height, making it suitable for dense PCB layouts. The relay's capacitance rating at 130 pF ensures cleaner signal switching and minimal noise.

Compliant with RoHS environmental standards, this solid-state relay suits various industrial, electrical, and automation use cases requiring fast, reliable, and low-maintenance switching solutions.

The relay is ideal for use in manufacturing equipment, control panels, and automation devices. Its solid-state design reduces mechanical wear and maintenance needs compared to traditional relays. Suitable for applications requiring high isolation and fast switching performance.

Ensures signal integrity with low input sensitivity and high off-state resistance. Complies with environmental regulation through RoHS certification. Explore our Electronics & Electricals category for a wide range of reliable relays and Solid State Relay options by Infineon and other trusted brands on EnvMart.
