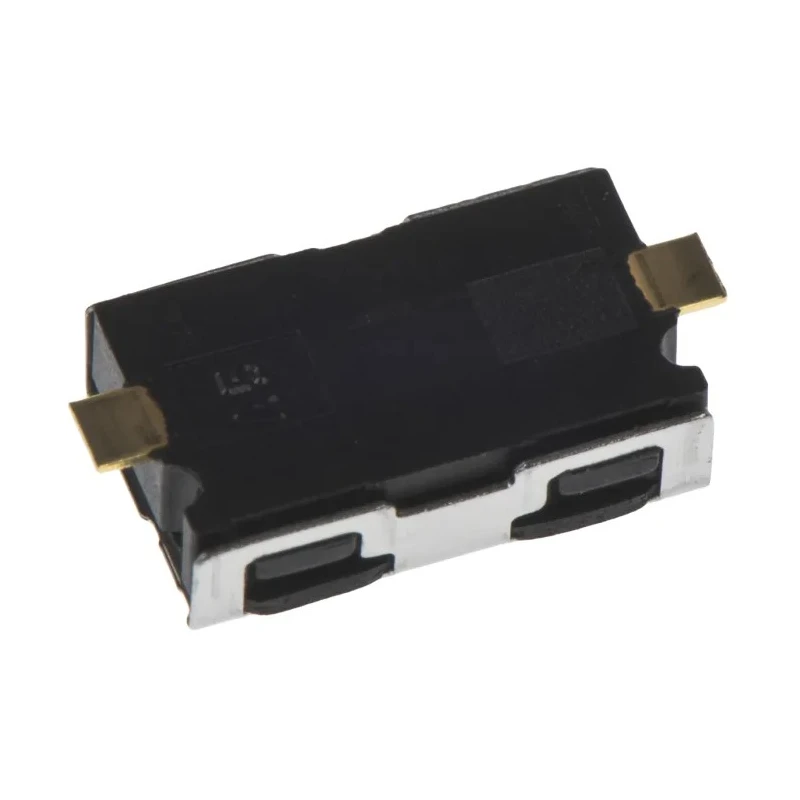

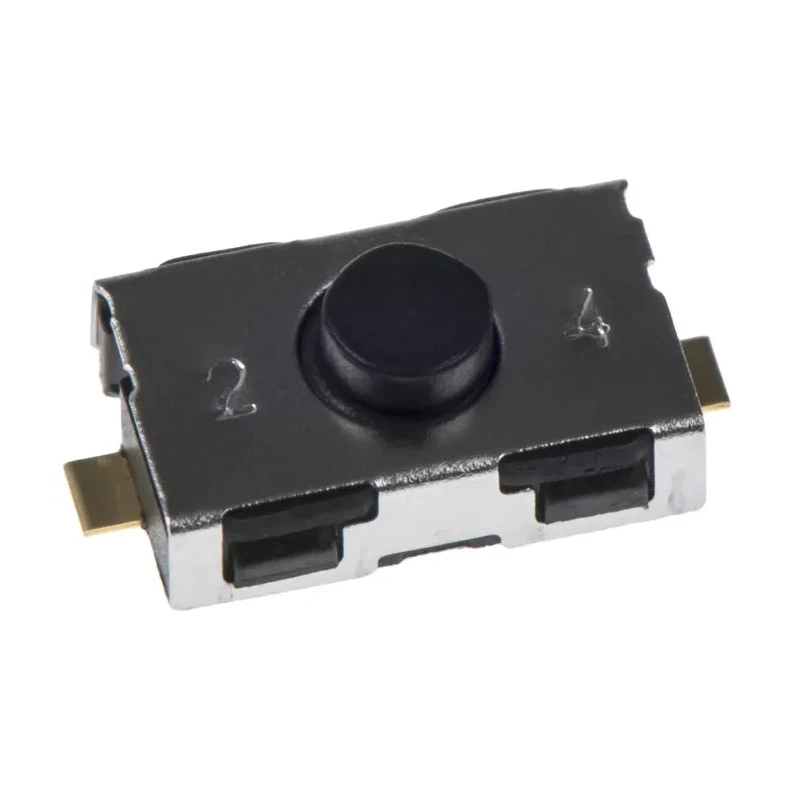

C & K IP50 Black Tactile Switch Button 0.8 mm SPST 10mA 32 V dc Surface Mount KSR224G LFG

Name: C & K IP50 Black Tactile Switch Button 0.8 mm SPST 10mA 32 V dc Surface Mount KSR224G LFG
Brand: C & K
SKU: 394745
Price: 20.22 USD
Availability: InStock



Category Tactile Switches Brand C & K Condition New

Specifications

Country of Origin	France
Brand	C & K
Height	2.5mm
Length	7.3mm
Model	KSR224G LFG
IP Rating	IP50
Width	3.8mm
Mount Type	Surface
Series	KSR
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Switch Operation	Off-On
Actuator Colour	Black
Actuator Length	0.8mm
Contact DC Voltage	32V dc
Actuator Style	Button
Actuator Orientation	Top
Switch Contact Current	10mA
Operating Force	2N
Mechanical Life	200000Operations
2 types of contacts available	Gold (1 VA) or silver (0.2 VA)

Key Features

The switch is IP50 rated, providing protection against dust ingress.
It has a compact form factor with dimensions of 7.3 mm length, 3.8 mm width, and 2.5 mm height.
The actuator is black, button style, oriented at the top, and requires an operating force of 2N.
It offers a mechanical life of up to 200,000 operations, suitable for high reliability applications.
Operating temperature ranges from -40°C up to 125°C ensure wide environmental compatibility.
The switch is compliant with RoHS and comes with the assurance of manufacturing origin from France.
This tactile switch is ideal for automotive, industrial electronics, communication devices, and computing equipment.

Product Description

The C & K KSR224G LFG is a precision subminiature tactile switch featuring a 0.8 mm black button actuator, designed for surface mount applications. It supports Single Pole Single Throw (SPST) contact configuration and operates safely at 10mA current and 32 V dc voltage, making it highly suitable for sensitive electronic devices.

Its IP50 rating provides basic dust protection ensuring durability in industrial environments. The compact dimensions of 7.3 mm length, 3.8 mm width, and 2.5 mm height enable compact PCB designs while maintaining mechanical integrity.

The tactile switch requires an actuation force of 2N, ensuring a responsive but deliberate control input. The actuator is positioned at the top, providing convenient access for manual operation or automated assembly.

Designed for demanding environments, the switch operates reliably across a temperature range from -40°C to 125°C. It offers a mechanical life expectancy of 200,000 switching cycles ensuring long-term performance in industrial, automotive, and communication applications.

Manufactured in France, this KSR series switch complies with RoHS standards, guaranteeing environmentally friendly materials and manufacturing processes.

Typical applications include automotive electronics, cellular phones and accessories, industrial electronics, computing, and network equipment. Supplied on reels, this switch facilitates efficient automated insertion for bulk manufacturing.

The switch is IP50 rated, providing protection against dust ingress. Compact form factor with 7.3 x 3.8 x 2.5 mm dimensions. Actuator color is black, styled as a button with a top orientation. Operating force is 2 Newtons, enabling tactile feedback.

Mechanical life of 200,000 operations ensures durability. Operating temperature range from -40°C to 125°C. Compliant with RoHS and manufactured in France. Ideal for automotive, industrial, and communication electronics. Explore more Tactile Switches and related products within the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
