Panasonic White Tactile Switch Push Plate 3.8 mm SPST 20 mA Surface EVQQ2B01W

Free Delivery in India | Lowest Global Shipping Charges

Panasonic White Tactile Switch Push Plate 3.8 mm SPST 20 mA Surface EVQQ2B01W

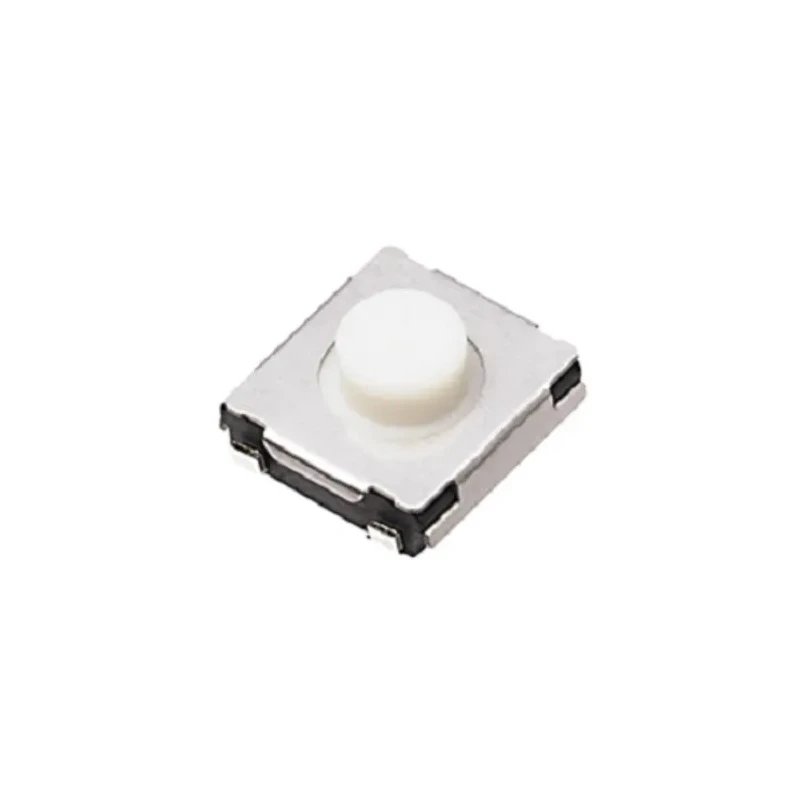

Name: Panasonic White Tactile Switch Push Plate 3.8 mm SPST 20 mA Surface EVQQ2B01W
Brand: Panasonic
SKU: 355250
Price: 0.36 USD
Availability: InStock



Category Tactile Switches Brand Panasonic Condition New

Specifications

Country of Origin	Malaysia
Brand	Panasonic
Model	EVQQ2B01W
Mount Type	Surface
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Terminal type	J Bend
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	238-3754Brand: PanasonicManufacturers Part No.: EVQQ2B01W
Switch Operation	Push-On
Actuator Colour	White
Actuator Length	3.8mm
Actuator Style	Push Plate
Actuator Orientation	Straight
Switch Contact Current	20mA
Operating Force	0.5N
Mechanical Life	2000000Cycles

Key Features

The switch features a white push plate actuator with a length of 3.8 mm.
It operates with a SPST contact configuration and supports a maximum contact current of 20 mA.
Designed for surface mount installation with a J bend terminal type.
Operates with a low force of 0.5 N and has a mechanical life expectancy of 2,000,000 cycles.
Rated to operate in temperatures up to 70 °C, suitable for various electronic applications.
The actuator style is a straight push plate type offering short travel push operation.
This tactile switch is manufactured in Malaysia to high-quality standards.

Product Description

Panasonic EVQQ2B01W is a white tactile switch push plate designed for use in electronic devices requiring precise and reliable input controls. Featuring a 3.8 mm actuator length with a white push plate, it offers a compact footprint with external dimensions of 6.5 mm by 6.0 mm and a height of 1.8 mm. The switch uses a SPST (Single Pole Single Throw) contact configuration with a J bend terminal type, making it suitable for surface mounting applications.

This push-on type tactile switch is ideal for incorporation in PC mice, car audio systems, and other electronic equipment where tactile feedback is important. It supports a contact current rating of 20 mA at voltages ranging from 10 μA 2 V DC up to 15 V DC in resistive load conditions. The operating force required to actuate the switch is 0.5 N, providing a light touch response.

Constructed to endure demanding usage, the switch offers a mechanical life of up to 2,000,000 cycles and operates reliably in temperatures ranging from - 40 °C to +70 °C. It is a non-illuminated switch with a straight orientation actuator designed for push travel short travel operation.

Manufactured in Malaysia, this Panasonic tactile switch meets industry performance standards and is well-suited for integration in various industrial, commercial, and consumer electronic applications.

The switch's surface mount configuration simplifies installation and integration into modern circuit boards. The actuator’s white color and push plate design ensure clear visual identification and ease of use. The long mechanical life ensures minimal replacement and maintenance costs in high-use situations.

Operating within a broad temperature range makes it suitable for diverse environmental conditions. The compact size and reliable operation enhance product design flexibility and user experience.

This tactile switch is part of the extensive range of electronic switches and components available for industrial automation, consumer electronics, and electrical control systems. Browse EnvMart's catalog for Panasonic components to find compatible accessories and related products to suit your project requirements.
