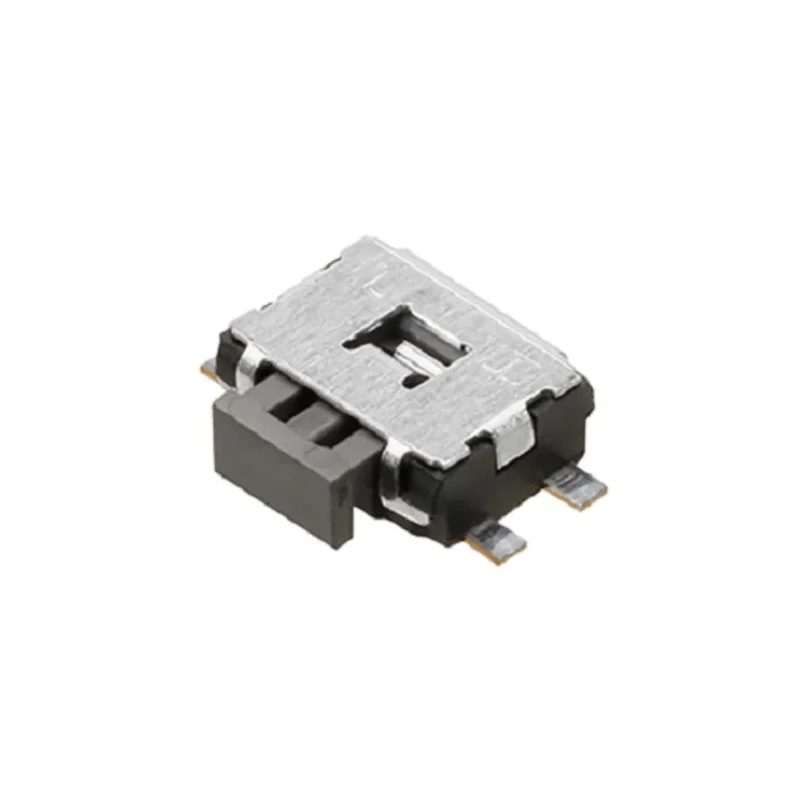

Panasonic Black Tactile Switch Push Plate 2.6 mm SPST 50mA 12 V dc Surface EVQPUC02K
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 1.66mm |
| Model | EVQPUC02K |
| Mount Type | Surface |
| Series | EVQP |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Terminal type | Straight |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 238-3752Brand: PanasonicManufacturers Part No.: EVQPUC02K |
| Switch Operation | Push-On |
| Actuator Colour | Black |
| Actuator Length | 2.6mm |
| Contact DC Voltage | 12V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 50mA |
Key Features
- Compact 4.7 mm x 3.5 mm size with 1.66 mm height for space-saving applications.
- Black push plate actuator provides reliable tactile feedback.
- SPST switch operation with straight terminal type for easy integration.
- Operates at a maximum of 12 V DC and 50mA contact current.
- Durable construction suitable for use up to 70°C operating temperature.
- Designed for surface mounting with push-on snap action operation.
- Complies with no specific standards or approvals.
- Manufactured in China ensuring consistent quality and performance.
Product Description
Panasonic EVQPUC02K Black Tactile Switch Push Plate is a small-sized, reliable side-operational surface mount switch designed for electronic control systems and applications requiring precise tactile response. It features a compact form factor with dimensions of 4.7 mm by 3.5 mm and a height of 1.66 mm, making it suitable for integration in space-constrained circuit boards and electronic devices. The push plate actuator is black in color with a length of 2.6 mm, providing a distinct and responsive touch.
This switch uses a Single Pole Single Throw (SPST) contact configuration with a straight terminal type, delivering a contact rating of 50mA at 12 V DC, ideal for low voltage electronic applications. Its push-on snap action style guarantees a positive mechanical switch operation, enhancing user tactile feedback.
Designed to operate reliably within a temperature range from - 20 °C to +70 °C, this Panasonic tactile switch supports up to 100,000 operational life cycles, ensuring durability in industrial, electrical automation, and consumer electronic applications. Though not illuminated and without specific standard certifications, it meets typical industry performance expectations.
The surface mount form factor facilitates easy assembly on printed circuit boards (PCBs), especially in compact and portable electronic devices. Typical applications include control panels, keypads, instrumentation, electrical appliances, and industrial automation controls.
Compact size suitable for PCB mounting in electronic devices and equipment. Reliable SPST configuration with push-on switching mechanism. Low power switching rating of 50mA at 12 V dc for signal circuits. Durable actuator with black color and 2.6 mm length push plate design.
Operates over a wide temperature range up to 70°C for varied environments. Manufactured in China under Panasonic’s quality standards. Explore the wider range of Panasonic tactile and push button switches in the EnvMart catalog for comprehensive electrical and automation solutions.
Explore more products in our Tactile Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration, which is suitable for a variety of low voltage applications.
The maximum operating temperature for this unit is 70°C, allowing it to function effectively in a range of environments.
The switch has compact dimensions of 4.7 mm x 3.5 mm and a height of 1.66 mm, making it ideal for space-constrained applications.
It has a contact current rating of 50mA, which is suitable for low power signal circuits.
This switch operates at a maximum voltage of 12 V DC, making it suitable for low voltage electronic applications.
It uses a straight terminal type, facilitating easy integration into electronic circuits.
The actuator style of this model is a push plate, which provides a tactile response when activated.
This tactile switch is rated for up to 100,000 operational life cycles, ensuring longevity in its applications.
Typical applications include control panels, keypads, instrumentation, electrical appliances, and industrial automation controls.
This model is manufactured in China, adhering to Panasonic’s quality standards.
The actuator of this switch is black, providing a distinct appearance and tactile feedback.
It is designed for surface mounting, allowing for easy assembly on printed circuit boards (PCBs).
