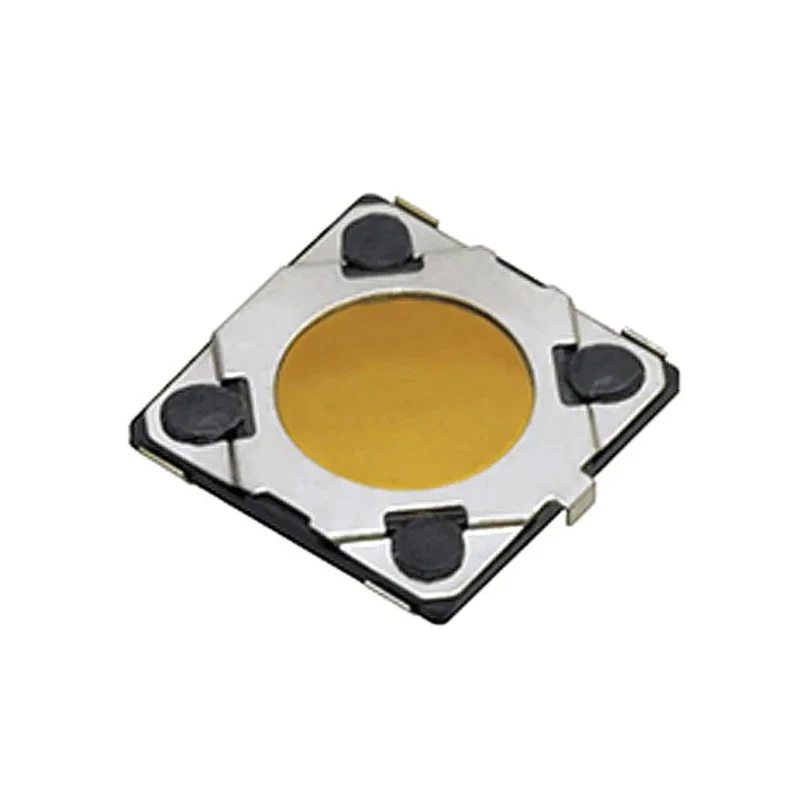

Panasonic Black Surface Mount IP67 Tactile Switch Push Plate 4.3 mm, SPST 20mA 15 V dc

Panasonic EVQ7P6B40 is a black SMT tactile switch featuring a surface mount design and IP67 ingress protection, suitable for applications requiring momentary SPST switching with a 20mA 15 V dc contact rating. This tactile switch is engineered with a 4.3 mm long vertical push plate actuator for a crisp, positive click feel, ideal for use in industrial, electrical automation systems, and electronic device controls.

The switch dimensions are compact with a 4.1 mm by 4.1 mm footprint, making it suitable for densely packed circuit boards. It employs a J bend terminal ensuring solid PCB mounting stability. It operates reliably in temperature conditions from -20°C up to 70°C, supporting a wide variety of environments.

This tactile switch offers an operating force of 1 Newton and a mechanical life expectancy of 1,000,000 operations. Compliance with RoHS directives guarantees environmentally conscious manufacturing standards.

Its IP67 rating protects against dust ingress and temporary water immersion, making it suitable for rugged industrial equipment and high-reliability automation systems. Its sharp tactile response and low contact resistance reduce bounce noise, enhancing signal integrity.

Manufactured in Japan, this switch assures precision engineering and consistent quality.

Key features include a momentary switch operation with surface mount configuration and vertical push plate actuator, facilitating easy integration into electrical and automation projects. The switch is typically used in electronics manufacturing, laboratory instruments, HVAC controls, and industrial automation applications.

Explore Panasonic's range of Tactile Switches for reliable and precise switching solutions on EnvMart. The switch operates momentarily with a vertical push plate actuator for clear tactile feedback. Compact dimensions of 4.1 mm length, 4.1 mm width, and a 4.3 mm actuator length ensure space efficiency.

Designed for surface mounting with J bend terminal type for reliable PCB connections. Operating temperature ranges from -20°C to 70°C for versatile environmental resistance. Mechanical life rating of 1,000,000 operations assures durable performance.

Designed compliant with RoHS environmental standards and IP67 ingress protection rating. Low contact resistance and small contact bounce noise improve circuit reliability. Manufactured in Japan ensuring high quality and precision.
