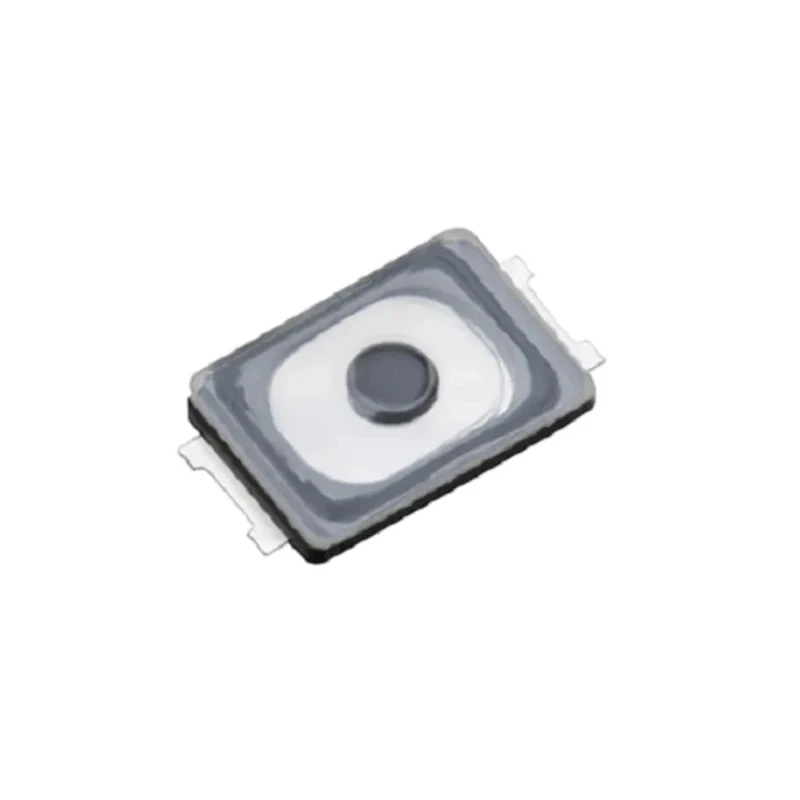

Panasonic Black Tactile Switch Push Plate 0.85 mm SPST 20mA Surface Mount IP67

Panasonic EVPAWED40 tactile switch is a durable and reliable component designed for electronic and electrical applications requiring a compact switching solution. This switch features a black push plate actuator with a 0.85 mm length and SPST (Single Pole Single Throw) contact configuration, enabling straightforward on-off operation through a push-on mechanism.

The switch is surface mount type, making it ideal for integration into portable electronic equipment such as mobile phones and portable audio devices where space conservation and efficient operation are critical. It is engineered with a robust mechanical life of 300,000 cycles and can operate under temperatures up to 85°C, ensuring longevity in demanding industrial and consumer electronics environments.

Its IP67 rating certifies full protection against dust ingress and temporary immersion in water, expanding usability to harsh environments. The actuator requires an operating force of 3.3 N, providing tactile feedback and reliable user interaction. Electrical rating supports contact currents up to 20mA at 15 V DC resistive loads, suitable for low power signal switching.

Designed for high operability with a push plate actuator style. Operates with a mechanical force of 3.3 N. Offers an IP67 ingress protection rating for dust and water resistance. Suitable for portable electronic equipment such as mobile phones and audio devices.

Rated for a maximum operating temperature of 85°C. Has a mechanical life of 300,000 cycles for durability. Actuator orientation and terminal type are straight for easy mounting. Compact dimensions with a height of 0.6 mm and actuator length 0.85 mm.

This tactile switch is widely used in industrial automation, consumer electronics manufacturing, and maintenance operations where reliable switching and environmental resistance are priorities. The component enables engineers and technicians to design efficient, compact control interfaces with reliable performance.
