Panasonic Grey Tactile Switch Push Plate, 2.2 mm Actuator Length, SPST 20mA 15 V DC, Surface Mount EVPAAU02Q

Free Delivery in India | Lowest Global Shipping Charges

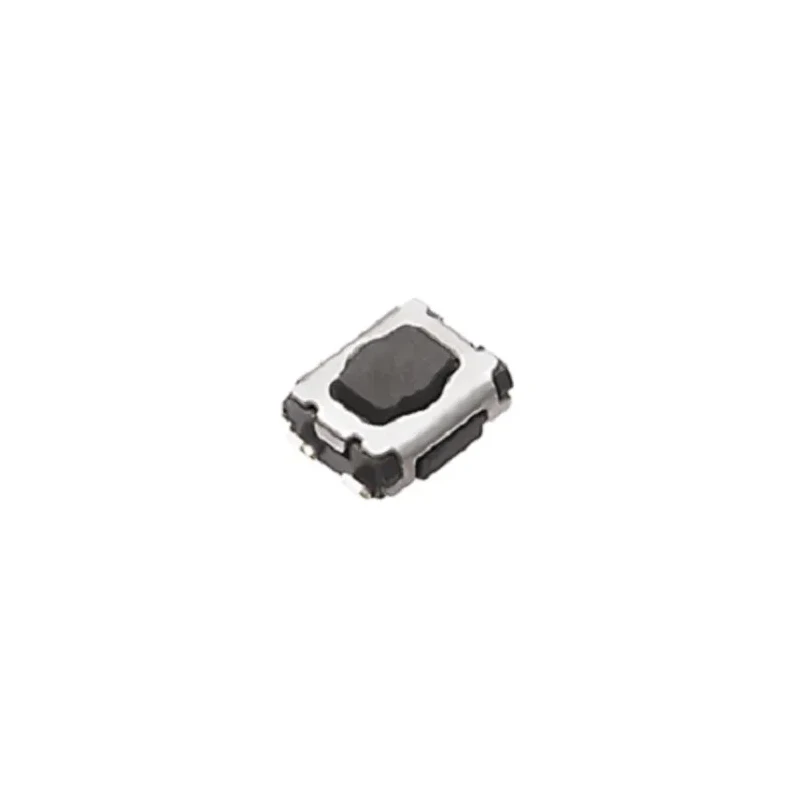

Panasonic Grey Tactile Switch Push Plate, 2.2 mm Actuator Length, SPST 20mA 15 V DC, Surface Mount EVPAAU02Q

Name: Panasonic Grey Tactile Switch Push Plate, 2.2 mm Actuator Length, SPST 20mA 15 V DC, Surface Mount EVPAAU02Q
Brand: Panasonic
SKU: 353251
Price: 0.93 USD
Availability: InStock



Category Tactile Switches Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	1.7mm
Model	EVPAAU02Q
Mount Type	Surface
Series	EVPA
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Terminal type	J Bend
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	238-3697PBrand: PanasonicManufacturers Part No.: EVPAAU02Q
Switch Operation	Push-On
Actuator Colour	Grey
Actuator Length	2.2mm
Contact DC Voltage	15V dc
Actuator Style	Push Plate
Actuator Orientation	Straight
Switch Contact Current	20mA
Operating Force	7N
Mechanical Life	100000Cycles

Key Features

This switch features a 7N operating force ensuring reliable actuation.
The mechanical life is rated up to 100,000 cycles for durability.
It has a compact height of 1.7 mm with external dimensions of 3.5 mm by 2.9 mm.
The actuator style is a push plate with straight orientation for consistent performance.
Designed to operate in temperatures from - 40 °C to +85 °C.
Terminal type is J Bend suitable for surface mounting installation.
Ideal for portable electronic equipment and keyless entry system applications.
Provides reliable snap-action push-on operation for precise user input.

Product Description

Panasonic EVPAAU02Q is a grey tactile switch featuring a 2.2 mm push plate actuator length and a Single Pole Single Throw (SPST) contact configuration rated at 20mA 15 V DC. This surface mount switch offers reliable, snap-action push-on operation with a compact height of 1.7 mm and external dimensions of 3.5 mm by 2.9 mm.

The switch requires a 7 Newton maximum operating force for actuation and is engineered for a mechanical life cycle of 100,000 operations, ensuring long-term durability in industrial and commercial electronics applications.

The actuator is designed with a straight orientation and is grey in color, providing tactile feedback suitable for keypads and portable electronic devices. Terminal connection is via J Bend type optimized for surface mount use.

Operating temperature ranges from - 40 °C to +85 °C, suitable for a variety of environmental conditions including industrial automation, control systems, and instrumentation.

This tactile switch is commonly used in portable electronics, keyless entry systems, and other applications requiring precise manual control switches. It does not come with specific standards or approvals certifications.

This switch provides a reliable snap-action push-on operation for precise user input. Compact and low-profile design fits well in space-constrained applications. High durability with a mechanical life of up to 100,000 cycles.

Robust temperature range supports harsh environment operation. Grey push plate actuator enables clear tactile feedback. Explore more tactile and keypad switches and related electrical components in the Electronics & Electricals category on EnvMart.
