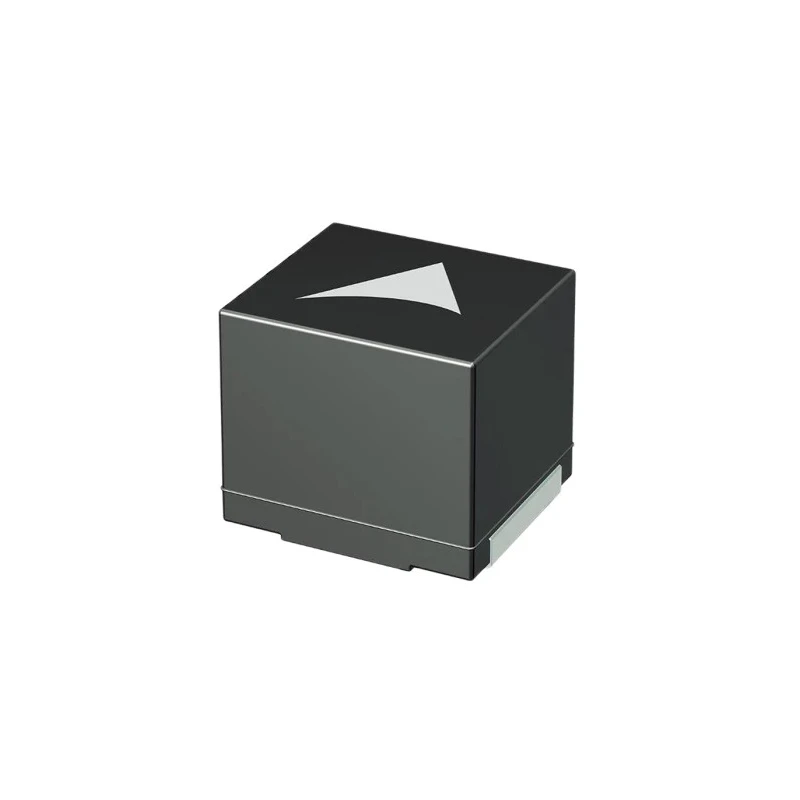

TDK Wirewound Surface Mount Inductor SIMID Series 100 μH ±10% 510 mA Idc 6.1 MHz B82442T1104K050

Free Delivery in India | Lowest Global Shipping Charges

TDK Wirewound Surface Mount Inductor SIMID Series 100 μH ±10% 510 mA Idc 6.1 MHz B82442T1104K050



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	5mm
Length	5.6mm
Model	B82442T1104K050
Depth	5mm
Packaging	Tape & Reel
Series	SIMID
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-55°C
Core Material	Ferrite
Inductance	100μH
Standards/Approvals	RoHS
Package/Case	2220
Maximum DC Current	510mA
Pin Count	2
Maximum DC Resistance	990mΩ
Inductance Tolerance	±10 %
Termination Style	Solder
Maximum Self Resonant Frequency	6.1MHz
Minimum Quality Factor	20
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200
High Inductance values	1 μH to 10000 μH

Key Features

The inductor features a ferrite core construction for optimal magnetic performance.
Operates reliably between -55°C to 150°C, suitable for automotive and industrial environments.
Packaged in tape and reel with 2220 case size for efficient surface mounting.
Maximum DC resistance of 990 mΩ and a quality factor of at least 20 at resonance.
Qualified to AEC-Q200 automotive standard and RoHS compliant.
Wirewound and moulded with solder terminations for durable connections.
Maximum self-resonant frequency rated at 6.1 MHz for high-frequency operation.
Ideal for DC/DC converters, telecommunication, automotive electronics, and power filtering.

Product Description

TDK B82442T1104K050 is a wirewound surface mount inductor from the SIMID series, featuring a ferrite core for enhanced magnetic properties and stability. The component provides an inductance value of 100 μH with a ±10% tolerance and supports a maximum DC current of 510 mA, making it suitable for high-performance electronic circuits.

Designed for performance and reliability, this inductor operates across a wide temperature range from -55°C to 150°C, meeting the rigorous requirements of automotive standards, specifically AEC-Q200 certification. Its construction includes laser-welded winding and is moulded with flame-retardant materials, ensuring durability under harsh conditions.

The package/case size is 2220 with dimensions of approximately 5.6 mm length, 5 mm height, and 5 mm depth. Its terminations are designed for soldering on surface mount technology (SMT) boards, enhancing assembly efficiency and mechanical strength.

The device exhibits a maximum DC resistance of 990 mΩ and a minimum quality factor of 20, with a maximum self-resonant frequency rated at 6.1 MHz, suitable for use in high-frequency filtering applications.

This inductor is ideal for applications such as filtering supply voltages, coupling and decoupling in DC/DC converters, switch-mode power supplies, automotive electronics, telecommunications, consumer devices, and industrial electronics.

The wirewound construction with a ferrite drum core ensures stable inductive performance. High inductance values ranging from 1 μH to 10,000 μH provide design flexibility. Rated currents from 46 mA to 3510 mA accommodate various power requirements.

Compliance with RoHS and halogen-free standards supports environmental regulations. Lead-free reflow soldering compatibility aligns with modern manufacturing processes.

For commercial and industrial applications seeking a reliable surface mount inductor with robust thermal, electrical, and mechanical characteristics, the TDK SIMID B82442T1104K050 model is a suitable choice. Explore more products in the Surface Mount Inductors category on EnvMart for extended options.
