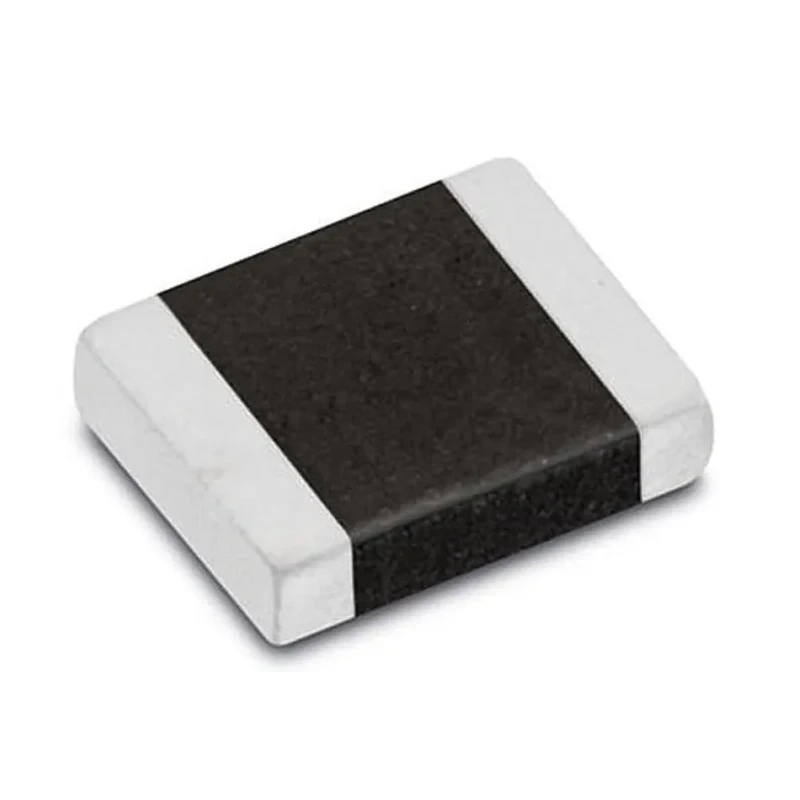

Wurth Elektronik WE-PMCI 0603 Shielded Multilayer Surface Mount Inductor with Ferrite Core 1 μH ±15 % 1.2 A 74479262210

Wurth Elektronik 74479262210 WE-PMCI 0603 Shielded Multilayer Surface Mount Inductor is designed for use in demanding electronic applications where size, efficiency, and magnetic shielding matter. This power chip inductor features a 0603 package size with compact dimensions (1.6 mm length, 0.8 mm height, 0.8 mm depth), and is constructed with a ferrite core providing stable inductance of 1 μH with ±15% tolerance.

The moulded construction and shielded design minimize electromagnetic interference and prevent crosstalk, critical for sensitive circuits such as high current DC-DC converters and portable devices including tablets, cameras, and smartphones. The inductor supports continuous DC currents up to 1.2 A and operates over a wide temperature range from -40°C up to 125°C, suitable for industrial and automotive electronic applications.

The WE-PMCI series components offer high efficiency with maximum DC resistance around 195 mΩ and a high self-resonant frequency of 80 MHz enabling use in high frequency power supply circuits. The 2-pin surface mount termination allows for automated PCB assembly with tape and reel packaging, accommodating modern manufacturing processes.

Applications include battery-powered devices, portable electronics, high frequency switching power supplies, and other environments requiring compact, reliable inductors with minimized EMI effects. This device complies with RoHS, IEC 61249-2-21, JEDEC JS709B, and REACH standards, ensuring environmental and quality compliance.

Features a compact 0603 moulded low profile case for surface mount technology. Magnetically shielded to eliminate crosstalk between components. Ferrite core ensures stable inductance with good temperature stability. Handles up to 1.2 A maximum DC current for high-current applications.

Maximum DC resistance of 195 mΩ reduces power loss and heat generation. Self-resonant frequency of 80 MHz supports high switching frequency circuits. Operating temperature range from -40°C to 125°C for reliability. Complies with RoHS, IEC, JEDEC, and REACH standards for quality assurance.

The Wurth Elektronik WE-PMCI series is a robust choice for engineers designing power management components in industrial, laboratory, commercial electronics, and consumer portable devices. Browse more quality inductors and electronic components at EnvMart to find complementary products for your design projects.
