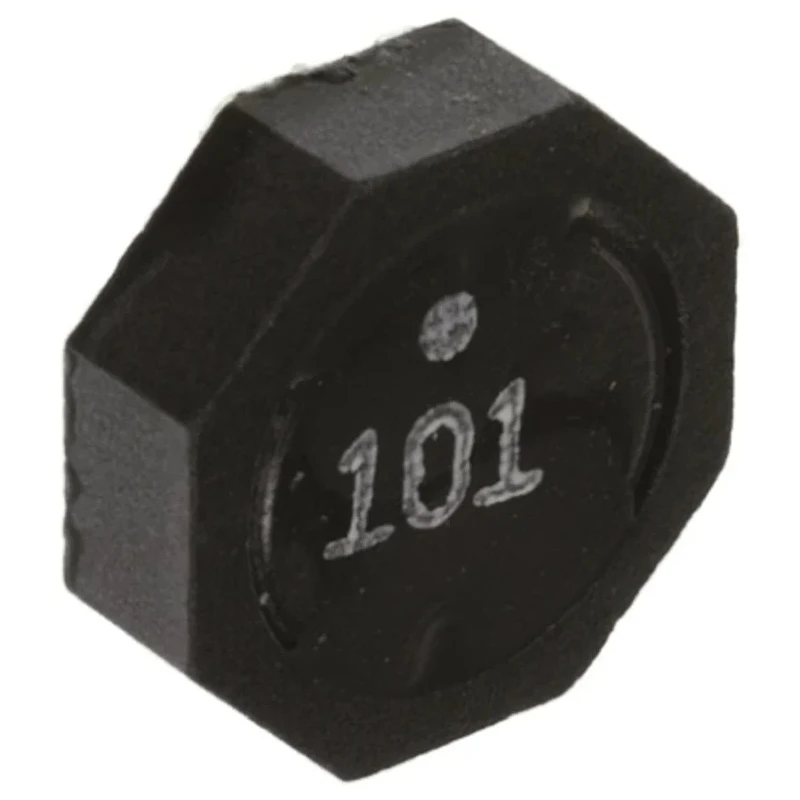

Wurth Elektronik Shielded Wirewound Surface Mount Inductor 68 μH ±30% 1.5 A Idc 744066680
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 7.4mm |
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 3.8mm |
| Length | 10mm |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 68μH |
| Package/Case | 1038 |
| Maximum DC Current | 1.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 216mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 7MHz |
| Inductor Construction | Wirewound |
| RoHS, REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3 | 2013 |
Key Features
- This inductor features a ferrite core with wirewound construction for robust performance.
- Designed with magnetically shielded structure to minimize leakage fields.
- Compact 1038 package size measuring 10 mm in length and 7.4 mm in diameter.
- Exhibits low resistance of 216 mΩ and operates reliably between -40°C to +125°C.
- Suitable for surface mount PCB assembly using tape and reel packaging.
- Meets RoHS, REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, and IEC standards for quality assurance.
- Optimized for applications including portable power devices, DC/DC converters, embedded PCs, and telemetry systems.
Product Description
Wurth Elektronik model 744066680 is a shielded wirewound surface mount inductor offering an inductance of 68 μH with a tolerance of ±30%. It supports a maximum DC current of 1.5 A and is constructed with a ferrite core providing magnetic shielding that reduces leakage fields. The product comes in a compact 1038 package case with dimensions 10 mm length, 7.4 mm diameter, and 3.8 mm height suitable for space-constrained PCB layouts.
This inductor exhibits a maximum DC resistance of 216 milliohms, ensuring efficient power handling. It is rated for a wide operating temperature range from -40°C to +125°C, catering to demanding industrial and commercial environments. The maximum self-resonant frequency is 7 MHz, ideal for high-frequency applications.
The component is supplied in tape and reel format suited for automated surface mount technology (SMT) assembly. It complies with several international standards including RoHS, REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, and IEC standards, ensuring quality and reliability in various electronic applications.
Typical uses include portable power devices such as PDAs, digital cameras, PCMCIA cards and displays, DC/DC converters, embedded PCs, and mobile data gathering and telemetry systems. Its wirewound construction offers stability and performance in circuits requiring magnetic shielding and current handling capabilities.
This inductor features a ferrite core with wirewound construction for robust performance. Designed with magnetically shielded structure to minimize leakage fields. Compact 1038 package size measuring 10 mm in length and 7.4 mm in diameter.
Exhibits low resistance of 216 mΩ and operates reliably between -40°C to +125°C. Suitable for surface mount PCB assembly using tape and reel packaging. Meets RoHS, REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, and IEC standards for quality assurance.
Optimized for applications including portable power devices, DC/DC converters, embedded PCs, and telemetry systems. Explore the Wurth Elektronik range in the Electronics & Electricals category on EnvMart for high-quality inductors and components.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 68 μH with a tolerance of ±30%.
It supports a maximum DC current of 1.5 A.
The inductor has a length of 10 mm, a diameter of 7.4 mm, and a height of 3.8 mm.
It operates reliably between -40°C to +125°C.
The maximum DC resistance is 216 mΩ.
It is constructed with a ferrite core, providing magnetic shielding to minimize leakage fields.
The maximum self-resonant frequency is 7 MHz.
It is supplied in tape and reel format, suitable for automated surface mount technology (SMT) assembly.
It complies with RoHS, REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, and IEC standards.
This inductor features a wirewound construction, which offers stability and performance in circuits.
It is optimized for applications including portable power devices, DC/DC converters, embedded PCs, and telemetry systems.
The termination style is surface mount, making it suitable for PCB assembly.
