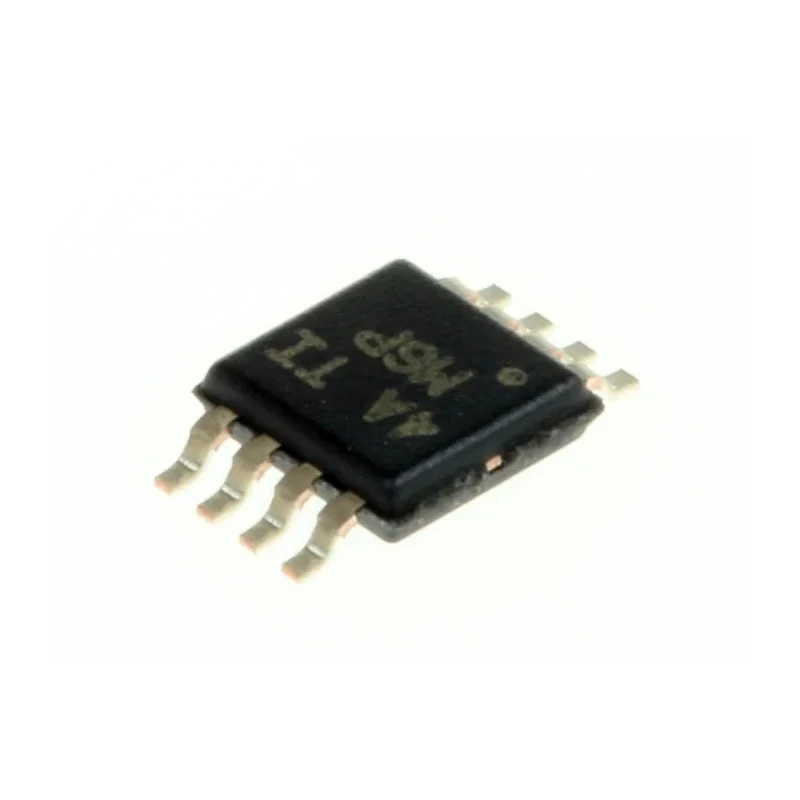

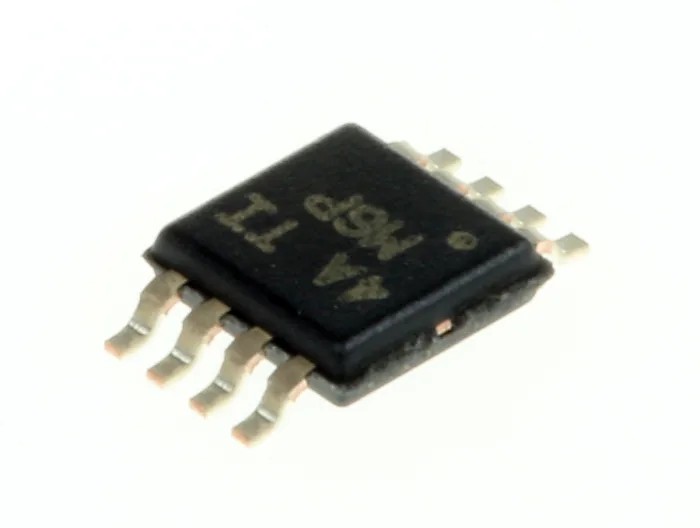

Texas Instruments Operational Amplifier 700 kHz 8-Pin 30V MSOP LM358ADGKR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.97mm |
| Length | 3mm |
| Model | LM358ADGKR |
| Width | 3mm |
| Mount Type | Surface |
| Series | LM358A |
| Output Current | -60mA |
| Maximum Operating Temperature | 70°C |
| Package Type | MSOP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 700kHz |
| Input Bias Current | -250 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 50 nA |
Key Features
- Dual channel operational amplifier designed for cost-effective general purpose use.
- Operates with a supply voltage range from 5V to 30V.
- Input offset voltage specified at 7 mV for precise signal amplification.
- Slew rate of 0.3 V/μs ensures good transient response.
- Compact MSOP package measures 3 mm length, 3 mm width, and 0.97 mm height.
- Wide operating temperature range from 0°C to 70°C.
- Low input bias current of -250 nA for efficient performance.
- RoHS compliant and suitable for diverse electronics applications.
Product Description
Texas Instruments LM358ADGKR is a dual-channel operational amplifier featuring a gain bandwidth product of 700 kHz. Packaged in a compact 8-pin MSOP surface mount package with dimensions 3 mm by 3 mm by 0.97 mm height, it is optimized for general purpose amplification in electronic circuits.
This operational amplifier supports a wide supply voltage range from 5V up to 30V, making it versatile for various power conditions. Its low input offset voltage of 7 mV and input bias current of -250 nA provide accurate signal processing. The slew rate of 0.3 V/μs ensures stable and fast response to input signal changes, suitable for analog signal conditioning.
The device operates reliably within an ambient temperature range of 0°C to 70°C and meets RoHS environmental compliance standards. With a maximum output current capability of -60 mA, it supports moderate load requirements in audio, industrial, and laboratory applications.
The LM358A series from Texas Instruments is well-suited for industrial, laboratory, HVAC, manufacturing, audio, and other commercial electronics projects requiring stable and efficient amplification. The MSOP package allows easy integration into surface-mount assembly lines for automated production.
Dual operational amplifier channels in a single package. Wide voltage supply range from 5 V to 30 V enhances flexibility. Low input offset voltage and bias current supports precision. Suitable for applications in industrial and audio amplification.
Compact and space-saving MSOP surface mount package. Complies with RoHS regulations ensuring environmental safety. Designed for use in PCB assembly with reel packaging option. Provides moderate output current of up to -60 mA.
Available as supplied on reel packaging for efficient insertion into SMT machinery, aiding production efficiency. Explore more Operational Amplifiers and semiconductor components by Texas Instruments and other top brands at EnvMart to complete your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LM358ADGKR is 700 kHz, making it suitable for a variety of amplification tasks in electronic circuits.
This operational amplifier operates with a supply voltage range from 5V to 30V, providing flexibility for different power conditions.
The input offset voltage is specified at 7 mV, which supports precise signal amplification in various applications.
The maximum output current capability of this model is -60 mA, allowing it to support moderate load requirements.
The MSOP package measures 3 mm in length, 3 mm in width, and 0.97 mm in height, making it compact for surface mount applications.
It operates reliably within an ambient temperature range of 0°C to 70°C, suitable for various environmental conditions.
The slew rate is 0.3 V/μs, which ensures a stable and fast response to changes in input signals.
This model features a surface mount design, allowing for easy integration into automated production processes.
The input bias current is -250 nA, which contributes to its efficient performance in signal processing applications.
Yes, it complies with RoHS regulations, ensuring environmental safety in its application.
The LM358ADGKR is a dual-channel operational amplifier, featuring two operational amplifier channels in a single package.
The input offset current is specified at 50 nA, which is important for maintaining accuracy in signal amplification.
