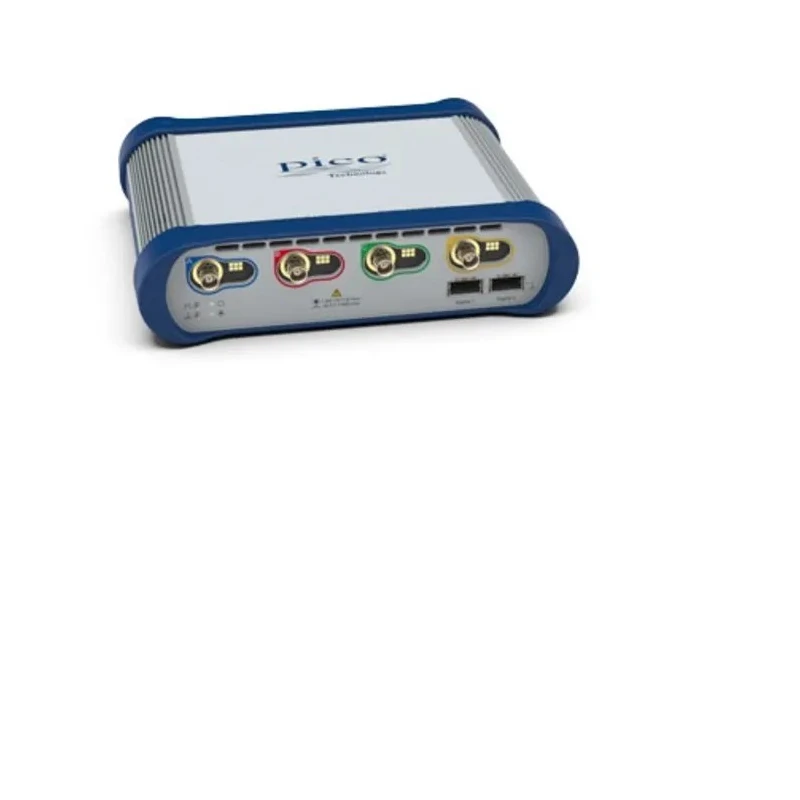

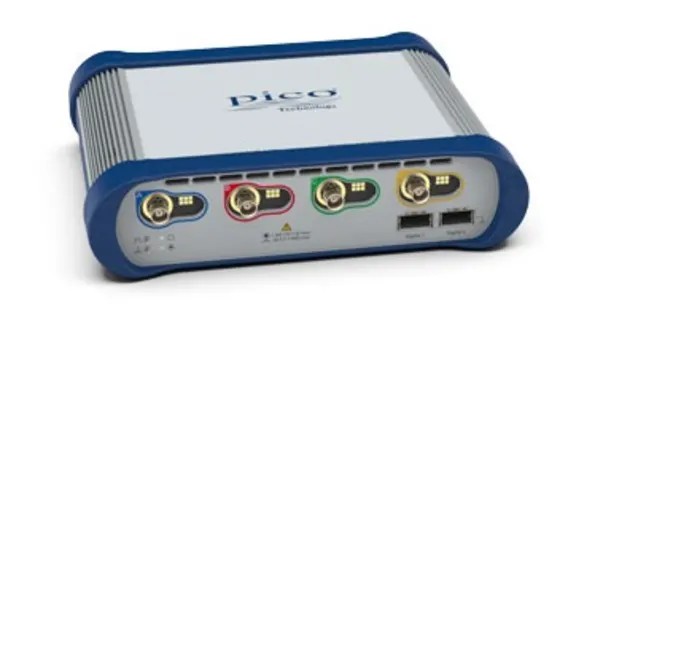

Pico Technology PC Based Oscilloscope 1 GHz Bandwidth 4 Channel USB Interface PicoScope 6406E
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Warranty | 5 years |
| Brand | Pico Technology |
| Model | PicoScope 6406E |
| Bandwidth | 1GHz |
| Series | PicoScope 6000E |
| Pollution Degree | EN 61010 pollution degree 2 |
| Interfaces | USB cable, 1 |
| Number Of Channels | 4 |
| Safety Compliance | Designed to EN 61010-1:2010 + A1:2019 |
| Vertical Resolution | 8 bit |
| EMC Compliance | Tested to EN61326-1:2013 and FCC Part 15 Subpart B |
| Interface Type | USB |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 2mV/div |
| Standards/Approvals | EN 61010, EN 613261:2013, REACH, RoHS, WEEE |
| Minimum Time Base | 20ns/div |
| Maximum Vertical Sensitivity | 4V/div |
| Advanced triggers | edge, window, Pulse width, window Pulse width, level dropout, window dropout, interval, runt and logic |
| P2056 10 | 1 500 MHz passive probes |
| Environmental compliance | RoHS, REACH, WEEE |
| Standards/ApprovalsEN 61010, EN 613261 | 2013, REACH, RoHS, WEEE |
Key Features
- Offers up to 1 GHz bandwidth with 8-bit to 12-bit FlexRes ADC resolution.
- Includes 4 analog channels and supports up to 16 digital MSO channels.
- Sampling rate of 5 GS/s with 200 MS capture time at full speed.
- Integrates a 50 MHz 14-bit arbitrary waveform generator with a 300,000 waveforms per second update rate.
- Comes with PicoScope 6, PicoLog®, and PicoSDK® software for enhanced functionality.
- Equipped with 21 serial protocol decoders and user-definable alarms.
- Advanced triggering options including edge, window, pulse width, dropout, interval, runt, and logic triggers.
- Compact and portable with USB power source for convenient use.
Product Description
Pico Technology PicoScope 6406E is a high-performance, PC based oscilloscope delivering 1 GHz bandwidth with 4 analog USB-connected channels, ideal for advanced debugging and signal integrity analysis.
The 6000E Series features a unique FlexRes ADC providing selectable vertical resolution from 8 to 12 bits, enabling detailed amplitude and timing resolution to reveal glitches, timing errors, and complex signal anomalies. With up to 5 GS/s real-time sampling and 200 million samples memory depth, it captures comprehensive waveform data for intricate analysis.
This oscilloscope supports mixed-signal analysis with up to 16 digital MSO channels, making it suitable for embedded system design and verification in power electronics, mechatronics, and automotive engineering.
Enhanced with a 50 MHz, 14-bit arbitrary waveform generator featuring 300,000 waveforms per second update rate, the unit is versatile for stimulus and simulation testing. Its advanced triggering system provides multiple modes such as edge, window, pulse width, dropout, interval, runt, and logic triggers for precise event capturing.
Compliance with EN 61010, EN 61326-1:2013, REACH, RoHS, and WEEE ensures operational safety and environmental responsibility.
The package contains the PicoScope 6000E Series PC oscilloscope, P2056 10:1 500 MHz passive probes, user’s guide, universal 12 V power adaptor, 1.8 m USB cable, and a protective storage/carry case.
This Oscilloscope is suited for industrial, laboratory, research, development, and complex embedded system applications requiring detailed multi-channel waveform analysis. Offers up to 1 GHz bandwidth with 8-bit to 12-bit FlexRes ADC resolution.
Includes 4 analog channels and supports up to 16 digital MSO channels. Sampling rate of 5 GS/s with 200 MS capture time at full speed. Integrates a 50 MHz 14-bit arbitrary waveform generator with a high update rate. Comes with PicoScope 6, PicoLog®, and PicoSDK® software for enhanced functionality.
Equipped with 21 serial protocol decoders and user-definable alarms. Advanced triggering options including edge, window, pulse width, dropout, interval, runt, and logic triggers. Complies with EN 61010, EN 61326-1:2013, REACH, RoHS, and carries a 5-year warranty.
Supplied with passive probes, power adaptor, USB cable, user guide, and storage case. Explore the Pico Technology range at EnvMart for industrial-grade measuring and testing instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PicoScope 6406E offers a bandwidth of 1 GHz, making it suitable for advanced signal analysis.
This model includes 4 analog channels and supports up to 16 digital MSO channels for mixed-signal analysis.
It has a maximum sampling rate of 5 GS/s, allowing for high-speed data capture.
The vertical resolution of the PicoScope 6406E is selectable from 8 bits to 12 bits, providing flexibility in amplitude resolution.
It features advanced triggering options including edge, window, pulse width, dropout, interval, runt, and logic triggers.
The oscilloscope comes with PicoScope 6, PicoLog®, and PicoSDK® software for enhanced functionality.
The minimum vertical sensitivity is 2 mV/div, while the maximum is 4 V/div, allowing for a wide range of signal amplitudes to be measured.
The minimum time base of the PicoScope 6406E is 20 ns/div, enabling precise timing measurements.
It complies with EN 61010-1:2010 + A1:2019 and has been tested to EN61326-1:2013 and FCC Part 15 Subpart B for EMC compliance.
The package includes the oscilloscope, P2056 10:1 500 MHz passive probes, a user’s guide, a universal 12 V power adaptor, a 1.8 m USB cable, and a protective storage/carry case.
This model comes with a 5-year warranty, ensuring support for an extended period.
The oscilloscope is manufactured in the United Kingdom, reflecting its quality standards.
