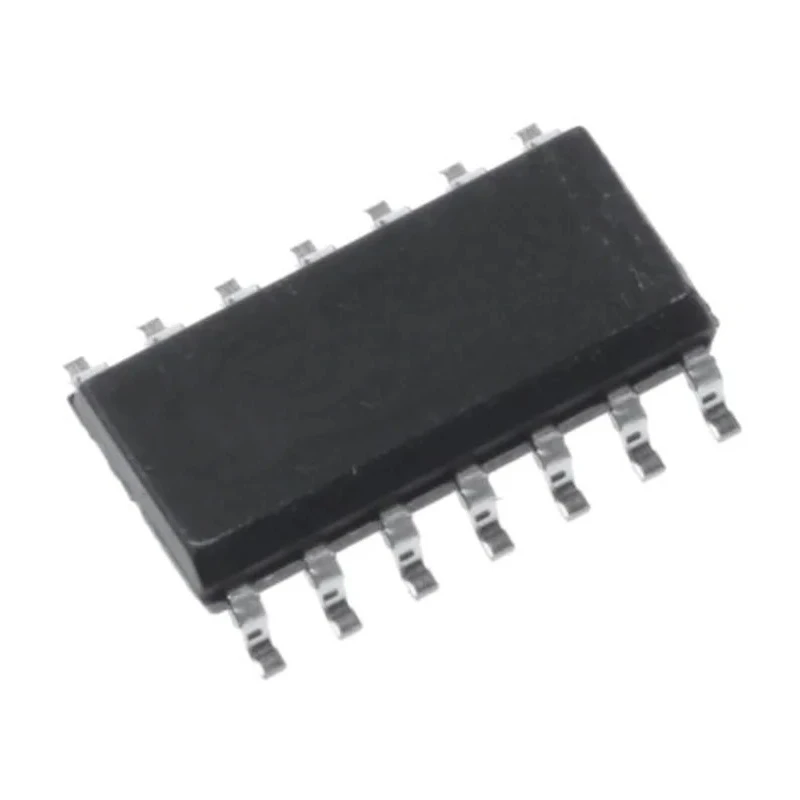

STMicroelectronics Operational Amplifier 3.5 MHz 14-Pin SO Surface Mount 16V TS274AIDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.65mm |
| Length | 20mm |
| Model | TS274AIDT |
| Width | 7.1mm |
| Mount Type | Surface |
| Series | TS274 |
| Output Current | 60mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 3.5MHz |
| Input Bias Current | 300 pA |
| Vos - Input Offset Voltage | 6.5 mV |
| Slew Rate | 5.5V/μs |
| Input Offset Current | 200 pA |
Key Features
- Operates with a gain bandwidth product of 3.5 MHz for reliable signal amplification.
- Designed with a 14-pin SO surface mount package suitable for compact PCB layouts.
- Supports a wide supply voltage range from 3V to 16V for versatile applications.
- Includes four amplifier channels in a single package to enable multi-signal processing.
- Low input bias current of 300 pA to ensure minimal input signal distortion.
- High slew rate of 5.5 V/µs for quick response to signal changes.
- Wide operating temperature range from -40°C to 125°C for industrial environments.
- Input offset voltage of 6.5 mV and very low input offset current of 200 pA for precise operation.
Product Description
STMicroelectronics TS274AIDT Operational Amplifier is a high-performance, 3.5 MHz bandwidth device housed in a 14-pin SO surface mount package designed for efficient PCB assembly. It operates with a supply voltage range of 3V to 16V and offers excellent slew rate and bandwidth characteristics, making it suitable for precision amplification in industrial, automotive, and consumer electronic applications.
This quad-channel operational amplifier integrates four independent amplifiers, providing versatile multi-channel signal processing within limited PCB space. The device supports output currents up to 60 mA and features low input offset voltage and current, enhancing signal accuracy and stability.
Designed for robust functionality, the TS274AIDT maintains performance over a wide temperature range, from -40°C to 125°C, ensuring reliable operation in demanding environments including manufacturing, automotive electronics, and instrumentation.
Its small footprint dimensions of 20mm length, 7.1mm width, and 1.65mm height allow effective use in compact devices. Being RoHS compliant, it adheres to environmental safety standards.
Operates with a gain bandwidth of 3.5 MHz for precision amplification. Four channels in a single surface mount package for multi-signal applications. Wide operating supply voltage from 3V to 16V supports flexible power configurations.
Low input bias current and offset voltage enable accurate signal conditioning. High slew rate ensures fast response to signal changes in dynamic systems. Output current capability up to 60 mA allows driving a range of loads.
Wide operating temperature range suitable for industrial and automotive use. Compact 14-pin SO package for efficient PCB design. RoHS compliant to meet regulatory requirements.
This Operational Amplifier is ideal for electronic design, industrial instrumentation, automotive electronics, and other applications requiring stable, precise, and multi-channel signal amplification. Explore the Electronics & Electricals category on EnvMart for more semiconductor amplifiers and professional components to suit your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3.5 MHz, making it suitable for reliable signal amplification.
It operates with a supply voltage range from 3V to 16V, allowing for versatile applications across different power configurations.
This model integrates four independent amplifier channels within a single package, enabling multi-signal processing.
The TS274AIDT can deliver an output current of up to 60 mA, suitable for driving a range of loads.
It has a wide operating temperature range from -40°C to 125°C, making it suitable for industrial and automotive applications.
The dimensions of this operational amplifier are 20 mm in length, 7.1 mm in width, and 1.65 mm in height, allowing for effective use in compact devices.
The input bias current is specified at 300 pA, which helps to minimize input signal distortion.
This operational amplifier features a slew rate of 5.5 V/µs, ensuring a quick response to signal changes.
The input offset voltage is 6.5 mV, contributing to its precise operation in signal conditioning applications.
Yes, this operational amplifier is RoHS compliant, adhering to environmental safety standards.
It is housed in a 14-pin SO surface mount package, designed for efficient PCB assembly.
The TS274AIDT is part of the TS274 series, which includes similar operational amplifiers for various applications.
