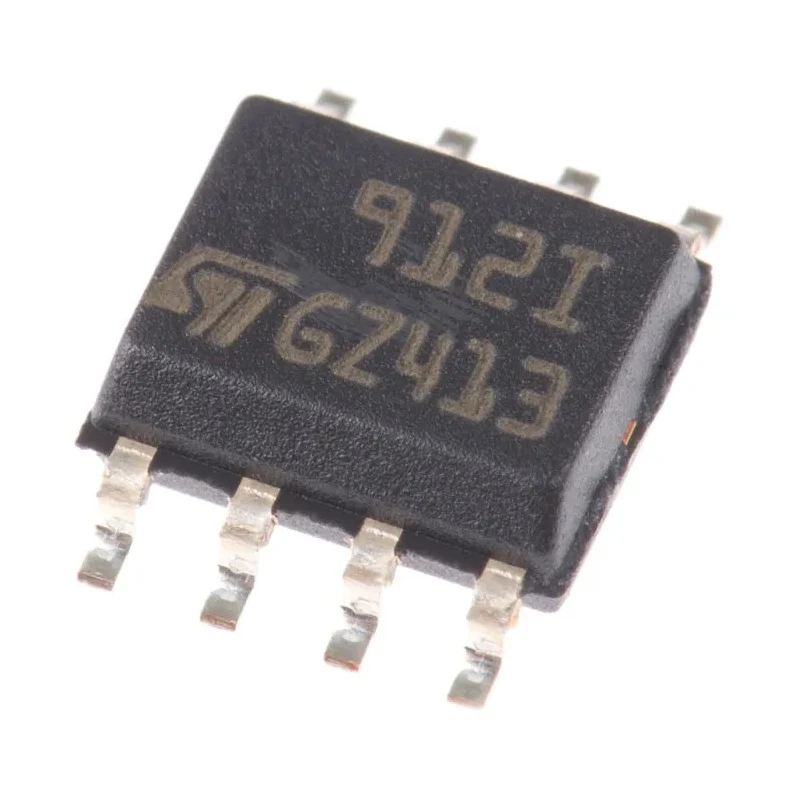

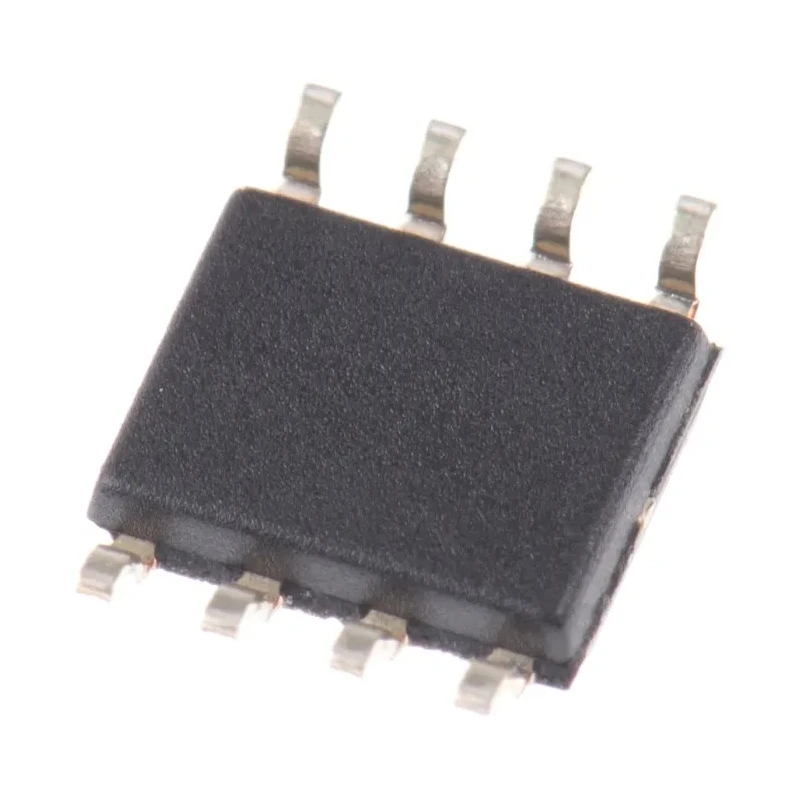

STMicroelectronics Operational Amplifier 1 MHz, 8-Pin SOIC, 16V TS912ID
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TS912ID |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | TS912 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 300 pA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 0.8V/μs |
| Low input offset voltage | 5 mV max. (A grade) |
| Input Offset Current | 200 pA |
| Low input bias current | 1 pA typical |
Key Features
- Features dual channels for versatile signal amplification.
- Operates within a supply voltage range of 3V to 16V.
- Low input bias current of 1 pA typical for precision applications.
- Input offset voltage maximum 12 mV with 5 mV max for A grade variant.
- Slew rate of 0.8 V/μs supports moderate speed signal processing.
- AEC-Q100 automotive qualification ensures reliable performance.
- Designed for single or dual supply operation from 2.7V to 16V.
- Output current rating up to 40mA for driving various loads.
Product Description
STMicroelectronics TS912ID Operational Amplifier is a low power, dual-channel amplifier designed for high precision signal conditioning in industrial and automotive applications. It operates with a gain bandwidth product of 1 MHz, featuring rail-to-rail input and output voltage ranges within a single or dual supply voltage from 2.7 V to 16 V. The device offers exceptionally low input bias current of 1 pA typical and low input offset voltage, which makes it suitable for sensitive measurement systems and precision amplification.
Packaged in an 8-pin SOIC form factor with compact dimensions (4.9 mm length, 3.9 mm width, 1.25 mm height), the TS912ID integrates seamlessly into densely packed PCB layouts. Its slew rate of 0.8 V/μs enables efficient handling of dynamic signals, while the output current capacity of 40 mA supports a variety of load conditions. The device meets the AEC-Q100 automotive standard, ensuring reliability under stringent environmental conditions.
Typical applications include industrial instrumentation, signal conditioning, sensor interface systems, battery-powered devices, and automotive electronic circuits. With operation guaranteed from -40°C to 125°C, it is well suited for temperature-critical environments.
Dual-channel operational amplifier with CMOS inputs for low power consumption. Rail-to-rail input and output for maximum dynamic range. Low input offset voltage for precision measurements. Single or dual supply operation from 2.7 V to 16 V.
Compact 8-pin SOIC surface mount package. AEC-Q100 automotive qualification for robust performance. Low input bias current to minimize measurement error. Output current capability of 40 mA enhances drive strength. Wide temperature operating range for industrial applications.
Ideal for industrial, automotive, and general-purpose electronics.
Explore the STMicroelectronics range of Operational Amplifiers at EnvMart for reliable, high-performance amplification solutions tailored to demanding industrial and automotive requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TS912ID operational amplifier is 1 MHz.
This model has an output current rating of up to 40 mA.
It operates within a supply voltage range of 3V to 16V.
The dimensions of the TS912ID are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
The maximum input offset voltage for the TS912ID is 12 mV, with a 5 mV maximum for the A grade variant.
The slew rate of the TS912ID is 0.8 V/μs.
The TS912ID meets the AEC-Q100 automotive standard.
The typical input bias current for the TS912ID is 1 pA.
This model is suitable for industrial instrumentation, signal conditioning, sensor interface systems, and automotive electronic circuits.
The minimum operating temperature for the TS912ID is -40°C.
The TS912ID is designed for surface mounting.
The input offset current for the TS912ID is 200 pA.
