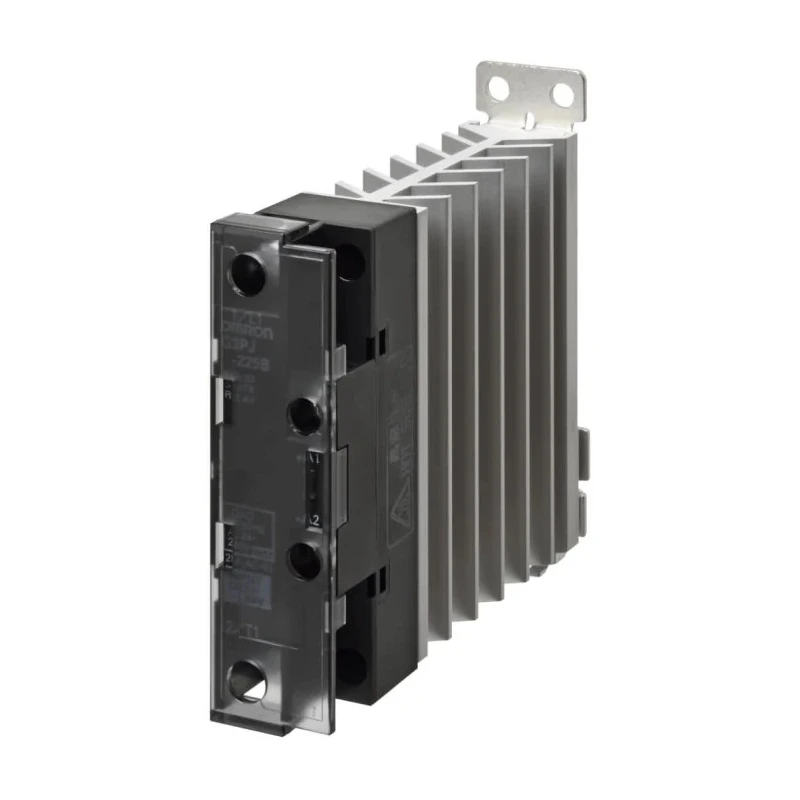

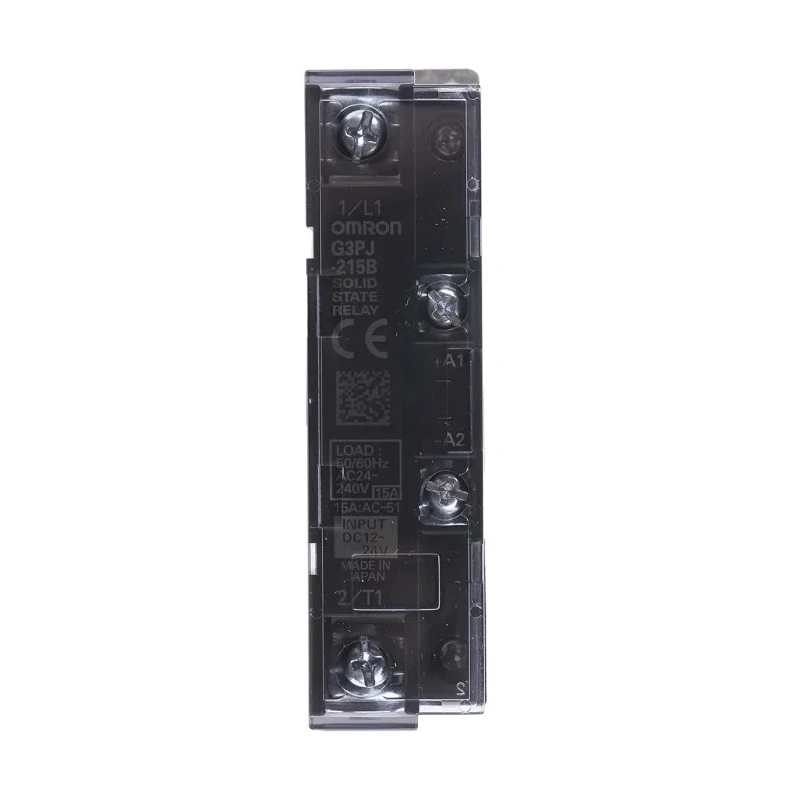

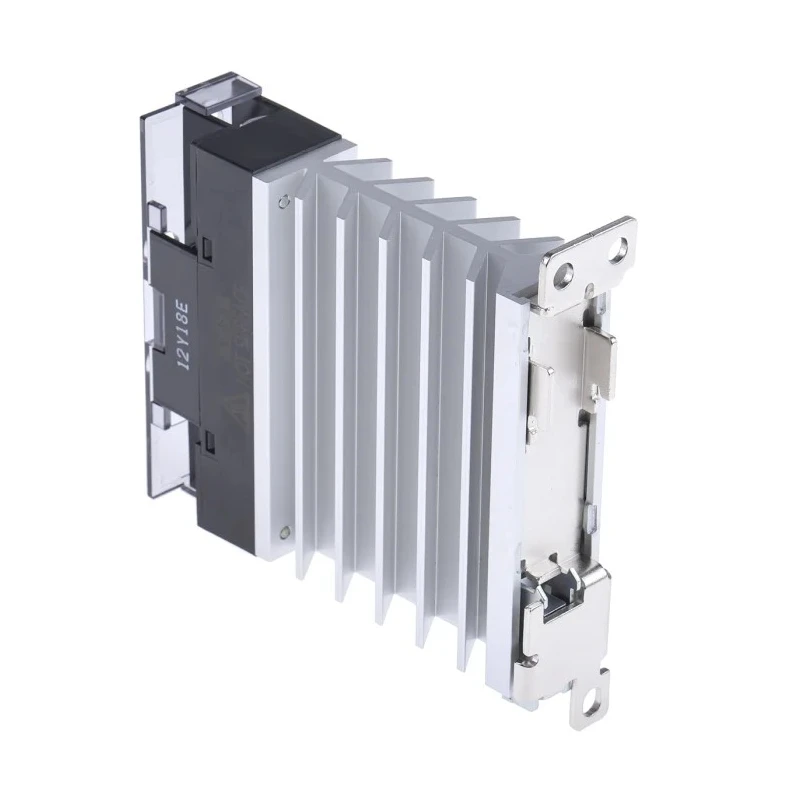

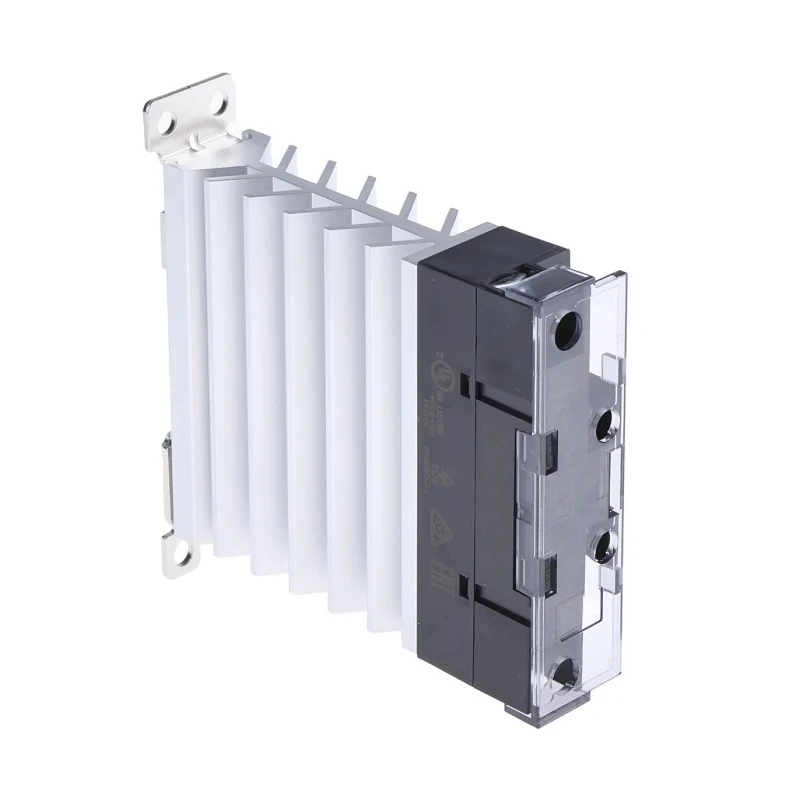

Omron Solid State Relay 15 A Load, 264 V AC Load, DIN Rail Mount, 24 V DC Control G3PJ

Omron G3PJ Solid State Relay with model code G3PJ is optimized for controlling single-phase AC loads up to 15 A and a maximum load voltage of 264 V AC. This DIN rail mount relay operates on a DC control voltage ranging from 12 V to 24 V, making it ideal for various industrial, automation, and process control applications.

Designed with a zero cross switching function, it only activates when the load voltage crosses zero, thereby reducing electrical noise and prolonging the lifespan of connected devices. The triac output ensures smooth AC load switching, suitable for lighting control, low-power motor starting, and other alternating current applications.

The relay features a rapid operating time of 1 millisecond and screw terminal contacts that facilitate quick and reliable installation. Its slim form factor with dimensions 22.5 mm (length) x 100 mm (height) x 100 mm (depth) allows fitting in constrained spaces, while the built-in LED indicator provides instant operational feedback.

Rated to reliably operate in harsh conditions with temperatures from -30°C up to +80°C, this relay is robust enough for industrial process control, pharmaceutical manufacturing, and mechanical engineering environments. It meets international standards including CE, cULus, and TUV, evidencing quality and compliance.

Manufactured in Japan, this G3PJ series Solid State Relay offers enhanced durability and performance with minimal maintenance due to its no moving parts design. The product's compact size, safety features, and efficient switching function make it an essential component for automation and control panels.

Operates reliably between -30°C to +80°C ambient temperature. DIN rail mounting enables straightforward installation. LED indicator for real-time operating status. Off-state leakage current kept below 10 mA to minimize energy waste.

Certified to CE, cULus, and TUV standards. Zero cross switching ensures reduced noise and smooth switching. Compact size suitable for space-constrained installations. Suitable for industrial, pharmaceutical, and mechanical engineering applications.
