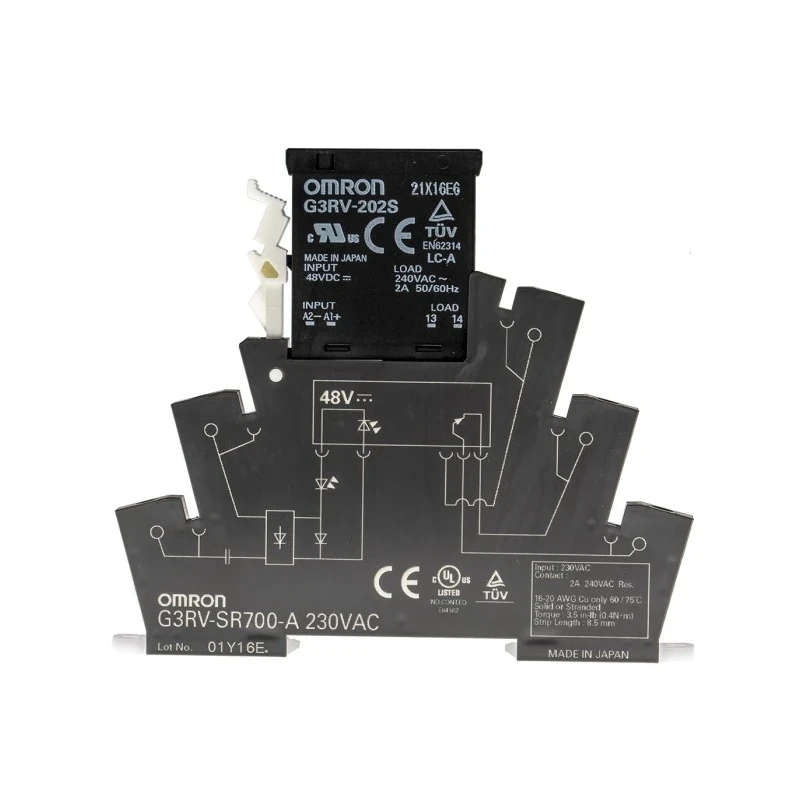

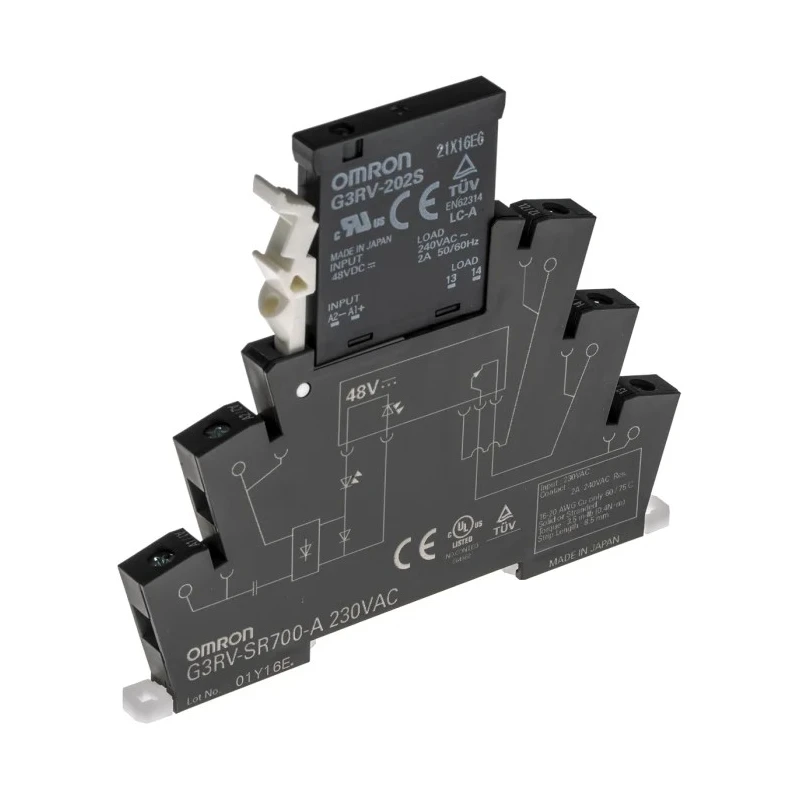

Omron Solid State Interface Relay DIN Rail Screw Terminal 230 V AC Control Voltage G3RV-SR
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Model | G3RV-SR |
| Maximum Control Voltage | 230V ac |
| Omron G3RV-ST Solid State Interface Relay, Control | 230V ac DIN Rail ScrewBrand: Omron |
Key Features
- Slim design with 6.2 mm width for panel space optimization.
- AC output with triac and zero cross function reduces electrical noise.
- Rated load voltage range 75 to 264 V AC and load current 0.1 to 2 A at 25°C ambient.
- Fast operate time of 1/2 cycle plus 1 ms and release time 60 ms max.
- Inrush current resistance up to 30 A for 1 cycle at 60 Hz enhances durability.
- Operating temperature range from -30°C to +55°C for versatile environments.
- Vibration and shock resistant for reliable performance in industrial use.
- Mounts easily on DIN rails with screw terminals allowing easy wiring.
Product Description
Omron G3RV-SR700-A AC230 Solid State Interface Relay is a low profile I/O SSR that offers a compact 6.2 mm width for efficient panel design and downsizing in industrial and automation control panels.
This relay operates with a rated control voltage of 230 V AC and features a DIN rail screw terminal mount, providing flexible installation and reduced wiring time by 60% compared to standard SSRs. The relay incorporates a zero cross function which allows switching at the AC load power supply's zero voltage crossing point, greatly reducing electrical noise and interference on power lines and in open spaces.
The G3RV-SR700-A AC230 model supports a wide load voltage range from 75 to 264 V AC, with load currents ranging from 0.1 to 2 A at an ambient temperature of 25°C. It withstands inrush currents up to 30 A for one electrical cycle at 60 Hz which protects the relay in demanding switching conditions. The operating temperature range from -30°C to +55°C ensures reliable operation across diverse industrial environments.
Vibration resistance and shock endurance make this relay suitable for use in manufacturing, laboratory equipment, HVAC, and other machinery controls. The solid state relay's output ON voltage drop is minimal at 1.6 V RMS max, with low leakage current of 5 mA max at 200 V AC, making it energy efficient.
Weighting approximately 38 grams, the relay adds minimal load while offering high performance and durability. Accessories such as DIN rail mounting supports and spacer plates are available for convenient assembly and panel integration.
Slim 6.2 mm wide design for compact panel layouts. Zero cross switching to minimize electrical noise. Wide load voltage 75-264 V AC and load current 0.1-2 A. High inrush current resistance of 30 A for 1 cycle at 60 Hz. Ambient operating temperature from -30°C to +55°C.
Vibration and shock resistant for rugged industrial use. Easy DIN rail screw terminal mounting. Low output voltage drop and leakage current. Lightweight at 38 grams. Ideal for automation, manufacturing, HVAC, and control panels.
Explore EnvMart's extensive Electronics & Electricals collection for more quality relays and industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated load voltage range for this solid state relay is from 75 to 264 V AC.
This model can handle a load current of 0.1 to 2 A at an ambient temperature of 25°C.
The control voltage for the Omron G3RV-SR relay is 230 V AC.
This relay has an inrush current resistance of up to 30 A for one cycle at 60 Hz.
The operating temperature range for this relay is from -30°C to +55°C.
The zero cross function allows for switching at the AC load power supply's zero voltage crossing point, which reduces electrical noise and interference.
This relay has a slim design with a width of 6.2 mm, optimizing panel space.
This relay mounts easily on DIN rails using screw terminals, facilitating straightforward wiring.
The relay weighs approximately 38 grams.
This relay is suitable for use in manufacturing, laboratory equipment, HVAC, and other machinery controls.
The output ON voltage drop for this relay is minimal at 1.6 V RMS max.
The maximum leakage current for this model is 5 mA at 200 V AC.
