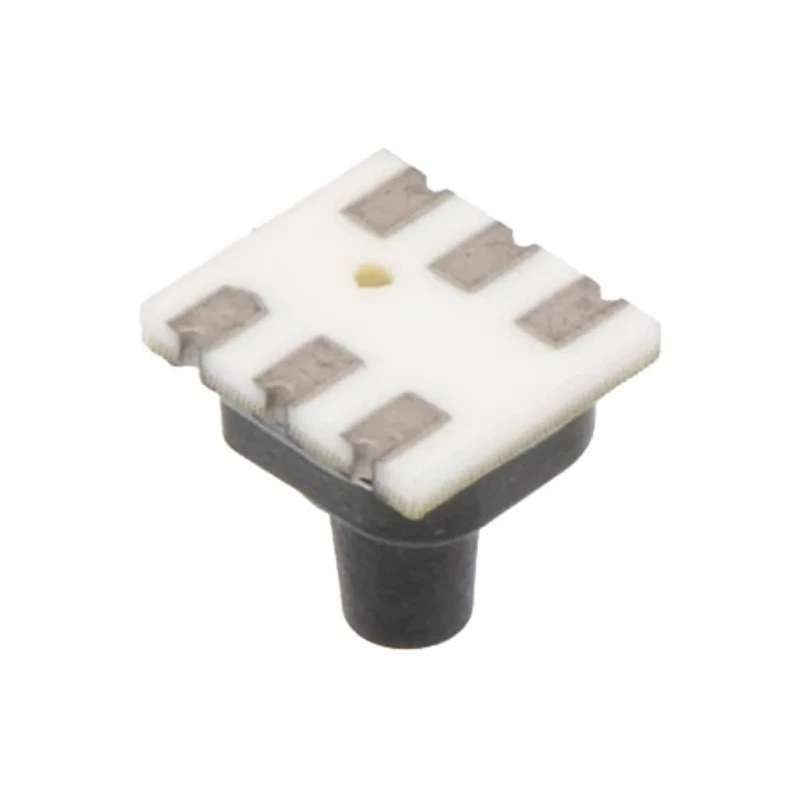

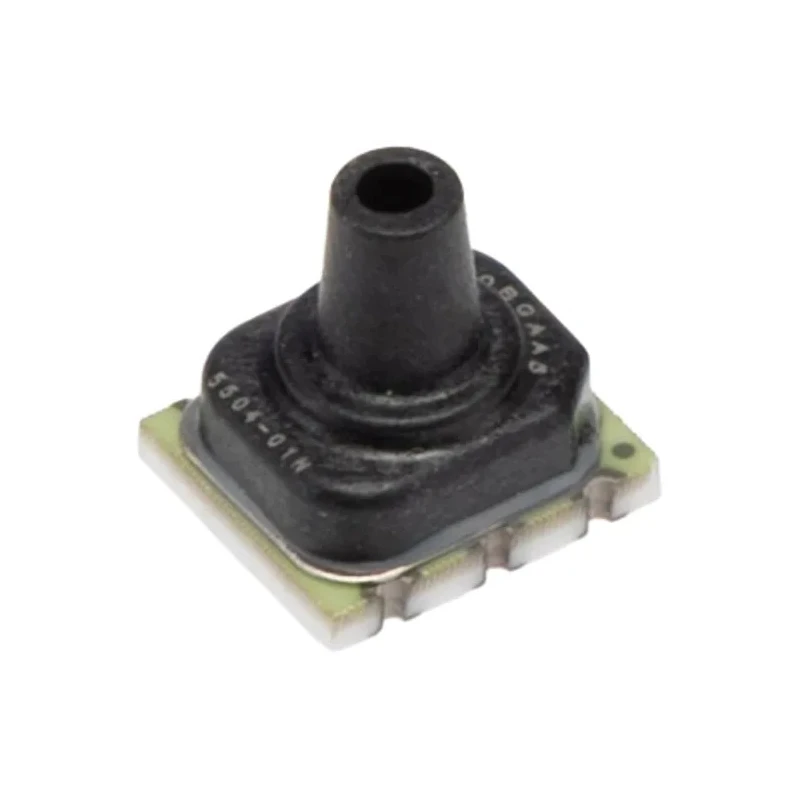

Honeywell Technologies Piezoresistive Differential Pressure Sensor Surface Mount 6 Pin LLSMT ABPLLNT010BGAA5
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 10 bar |
| Height | 7.23mm |
| Length | 7.3mm |
| Model | ABPLLNT010BGAA5 |
| Sensor Type | Differential Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Surface |
| Series | ABP |
| Maximum Operating Temperature | 85°C |
| Port Type | Single Axial Barbless |
| Package Type | LLSMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0bar |
| Maximum Overload Pressure | 17bar |
Key Features
- Operates with 3.3 V dc or 5 V dc single power supply.
- Measures gauge and differential pressure up to 10 bar operating pressure.
- High accuracy with ±0.25% full scale span (FSS).
- Compact LLSMT surface mount package with 6 pins for easy PCB integration.
- Wide operating temperature range from -40°C to 85°C.
- Pressure unit measurements varying between 60 mbar and 10 bar.
- Complies with RoHS and REACH regulations for environmental safety.
- Suitable for medical applications such as blood pressure monitoring and ventilators.
Product Description
Honeywell Technologies ABPLLNT010BGAA5 is a high precision piezoresistive differential pressure sensor featuring a surface mount 6-pin LLSMT package with compact dimensions (6.3 mm width, 7.3 mm length, 7.23 mm height). It is designed for accurate measurement of gauge and differential pressures with a maximum operating pressure of 10 bar and a maximum overload pressure of 17 bar.
This sensor operates from a supply voltage range of -0.3 V minimum to 5.25 V maximum, with a typical single power supply of 3.3 V or 5 V dc. It delivers excellent accuracy of ±0.25% full scale span stability and a total error band within ±1.5% FSS (Total Error Band, TEB).
The ABP series sensor is engineered to meet demanding industrial and medical requirements. It is utilized in medical equipment such as CPAP machines, blood pressure monitors, patient monitoring systems, and ventilators due to its reliable and precise pressure sensing capabilities.
Additionally, industrial applications benefit from these sensors in air brakes, HVAC systems for temperature and pressure regulation, pneumatic control and regulation devices, and gas valve monitoring systems. Its compliance with IPC/JEDEC J-STD-020.1 moisture sensitivity level 1 and environmental regulations like RoHS and REACH ensure durability and sustainability.
The device uses a single axial barbless port type and is RoHS compliant, supporting environmentally safe manufacturing standards. It is manufactured in China and supports operating temperatures ranging from -40°C to 85°C.
Operates on 3.3 or 5 V dc single power supply. Highly accurate measurement with ±0.25% FSS stability. Wide pressure range suitable for medical and industrial applications. Compact 6 pin LLSMT surface mount package for PCB integration.
Robust design with high maximum overload pressure of 17 bar. Meets IPC/JEDEC moisture sensitivity and environmental standards. Suitable for medical devices such as ventilators and blood pressure monitors. Applicable in HVAC, pneumatic control, and gas valve monitoring industries.
Wide operating temperature from -40°C to 85°C ensures reliability. Manufactured in China. Explore more Pressure Sensor ICs, industrial sensors, and semiconductor components at EnvMart for reliable and high-quality solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 10 bar.
It has an accuracy of ±0.25% full scale span (FSS).
The operating temperature range is from -40°C to 85°C.
This model operates with a single power supply of either 3.3 V dc or 5 V dc, with a maximum supply voltage of 5.25 V.
The sensor has a width of 6.3 mm, a length of 7.3 mm, and a height of 7.23 mm.
It features a single axial barbless port type.
This sensor is suitable for medical applications such as blood pressure monitoring and ventilators, as well as industrial applications in HVAC systems and pneumatic control.
The maximum overload pressure is 17 bar.
Yes, it complies with RoHS and REACH regulations for environmental safety.
This sensor has 6 pins for easy PCB integration.
The total error band (TEB) is within ±1.5% full scale span (FSS).
It is manufactured in China.
