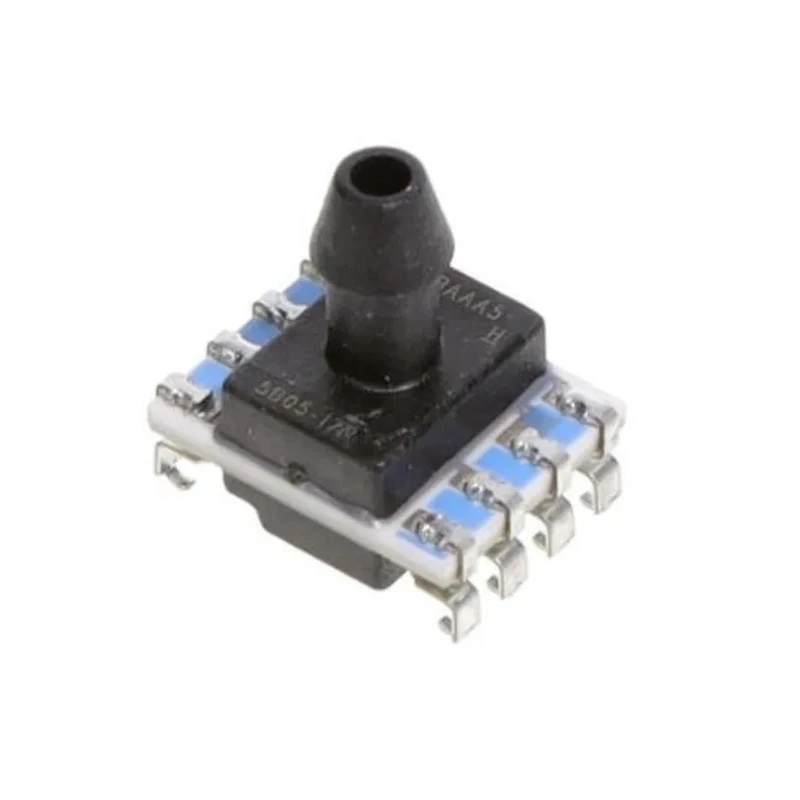

Honeywell Technologies Piezoresistive Pressure Sensor 1 bar 85 °C HSCMANV001BAAA5

Honeywell HSCMANV001BAAA5 piezoresistive pressure sensor is a board-mounted device designed for precise absolute pressure measurements with a maximum operating pressure of 1 bar and temperature tolerance up to 85 °C. Manufactured to ISO 9001 standards, it features a single axial barbed port to connect with media and is calibrated and temperature-compensated on-board, ensuring high accuracy and stability.

This sensor provides a ±0.25% full-scale accuracy, reducing the need for software compensation in electronic control systems. It supports both ratiometric analogue outputs and digital 14-bit outputs compatible with SPI and I2C communication protocols, allowing versatile integration with microcontrollers and embedded systems.

Designed for use with non-corrosive, non-ionic gases, and certain non-corrosive liquids (for ranges above 40 mbar, applied only to Port 1), the sensor is ideal for pneumatic control, HVAC systems, laboratory instrumentation, medical ventilators, respiratory monitoring systems, barometry, and flow calibration applications. Its low power consumption under 10 mW makes it suitable for battery-powered devices.

The sensor operates reliably in harsh industrial environments and meets moisture sensitivity J-STD-020E for reflow, MIL-STD-202G standards for vibration and shock, and life testing for millions of pressure cycles.

Operating temperature ranges from -20 °C to 85 °C with ASIC compensation correcting for offset, sensitivity, non-linearity, and temperature effects, enabling accurate readings across the calibrated span. This high-performance sensor enhances system reliability in industrial, laboratory, HVAC, medical, and pneumatic applications.

Provides ±0.25% full-scale accuracy for precise pressure measurements. Single axial barbed port designed for absolute pressure sensing. Board-mounted device suitable for integration in control systems. Calibrated and temperature-compensated on-board for reliable output.

Supports ratiometric analogue or 14-bit digital outputs compatible with SPI and I2C. Low power consumption under 10 mW extends battery life in portable applications. Operates within temperature range of -20 °C to 85 °C. Compatible with non-corrosive, non-ionic gases and selected liquids.

Complies with ISO 9001 manufacturing standards for quality assurance. Explore more Pressure Sensors and pneumatic tools at EnvMart for industrial and technical applications.
