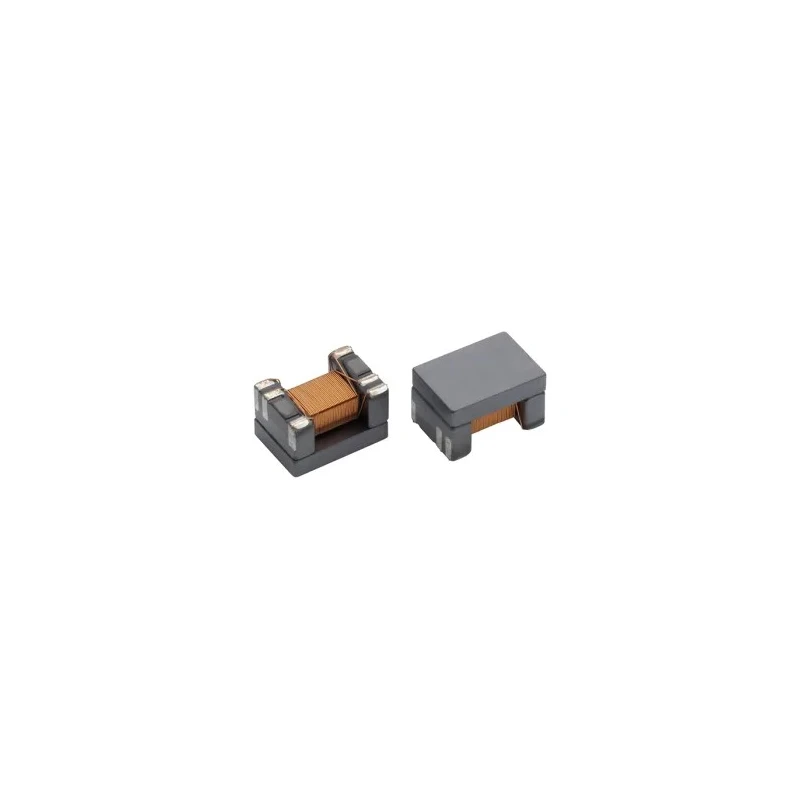

TDK Surface Mount Pulse Transformer 1CT:1CT Turns Ratio, 6 Pins, 4.5mm Length ALT4532M-201-T001
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Length | 4.5mm |
| Model | ALT4532M-201-T001 |
| Depth | 2.9mm |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ALT |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | LANs |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Insertion Loss | 1.5dB |
| Turns Ratio | 1CT:1CT |
| Turns Ratio1CT | 1CT |
| 1CT | 1CT |
| TDK Surface Pulse Transformer 1CT | 1CT Turns Ratio |
Key Features
- Offers an insertion loss of 1.5 dB for efficient signal transmission.
- Compact dimensions of 4.5mm length, 3.2mm width, and 2.9mm depth.
- Operating temperature range from -40°C to 85°C for reliable performance.
- Surface mount type with 6 pins suitable for PCB integration.
- Conforms to RoHS standards ensuring environmental compliance.
- Lightweight design with only 120 mg weight enhancing usability in compact devices.
- Part of the ALT series optimized for LAN applications such as 10BASE-T, 100BASE-TX, and 1000BASE-T.
- Utilizes auto winding technology for consistent high quality.
Product Description
TDK ALT4532M-201-T001 is a surface mount pulse transformer featuring a 1CT:1CT turns ratio, optimized for high-speed LAN communication applications including 10BASE-T, 100BASE-TX, and 1000BASE-T.
This pulse transformer has an insertion loss of 1.5 dB and a compact form factor measuring 4.5 mm in length, 3.2 mm in width, and 2.9 mm in depth, with a lightweight mass of 120 mg. It operates reliably within a temperature range of -40°C to 85°C, suitable for industrial and commercial electronics.
The ALT series pulse transformers from TDK use advanced auto winding technology, ensuring precision and consistency in performance. The six-pin surface mount design facilitates easy PCB integration, making it ideal for space-constrained electronic designs.
The product is RoHS compliant, confirming adherence to environmental regulations and safe material usage.
Applications include telecommunications, industrial automation, electronic instrumentation, and LAN networking equipment. This product is engineered for high reliability and performance in demanding environments.
Insertion loss of 1.5 dB for effective signal integrity. Compact dimensions for space-saving installations. Wide operating temperature range ensures durability. Surface mount type with 6 pins for secure electrical connections.
RoHS compliant to meet environmental standards. Lightweight design facilitates integration into portable devices. ALT series offers high-quality winding technology. Ideal for LAN communication network hardware. Supports industrial and laboratory electronic applications.
Explore more electronic components and Pulse Transformers on EnvMart to enhance your design and manufacturing capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The insertion loss of this model is 1.5 dB, which contributes to effective signal integrity during transmission.
This pulse transformer has compact dimensions of 4.5 mm in length, 3.2 mm in width, and 2.9 mm in depth.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for various environments.
This model features 6 pins, designed for secure electrical connections on a PCB.
The turns ratio of this pulse transformer is 1CT:1CT, optimized for high-speed LAN applications.
It conforms to RoHS standards, ensuring adherence to environmental regulations.
This model is optimized for high-speed LAN communication applications, including 10BASE-T, 100BASE-TX, and 1000BASE-T.
It utilizes advanced auto winding technology, ensuring consistent high quality and precision in performance.
This unit has a lightweight design, weighing only 120 mg, which enhances usability in compact devices.
It features a surface mount type design, facilitating easy integration into electronic circuits.
The country of origin for this pulse transformer is India.
This pulse transformer is designed for use with LANs, making it suitable for networking applications.
