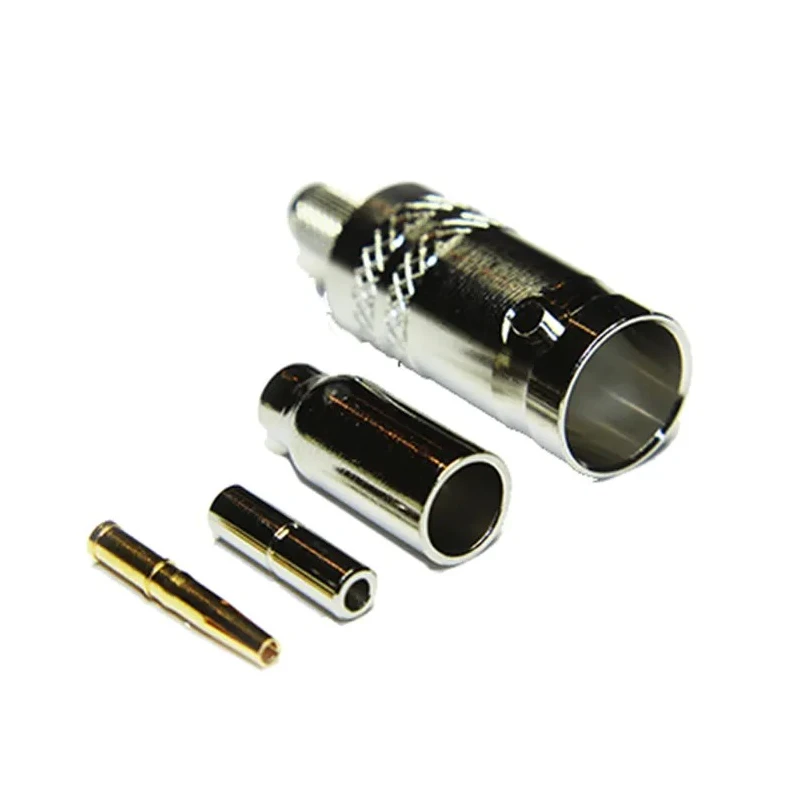

TE Connectivity BNC Series Coaxial Connector Cable Female BNC 75 Ω Straight Body Crimp 10-056-B36-AB
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 10-056-B36-AB |
| Mount Type | Cable |
| Operating Frequency | 3GHz |
| Contact Material | Phosphor Bronze |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 70°C |
| Cable Type | RG179 |
| Minimum Operating Temperature | -35°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Nickel plated brass body for durability and corrosion resistance.
- Gold plated phosphor bronze contact ensures excellent conductivity.
- Operates at frequencies up to 3 GHz for high-speed signals.
- Suitable for RG179 cable type with crimp termination.
- Bayonet coupling provides secure and quick connections with quarter turn operation.
- Temperature range from -35°C to 70°C for versatile environments.
- Compact standard size with 75 Ω impedance for broadcast and RF applications.
- Normal polarity female contact for compatibility in coaxial systems.
Product Description
COAX Connectors 10-056-B36-AB BNC Series Coaxial Connector Cable is a premium machined straight crimp jack designed for high performance in electronic and broadcast applications. Featuring a female BNC connector with a 75 Ω impedance, this connector is made with a nickel plated brass body and gold plated phosphor bronze contacts to ensure robust electrical connection and corrosion resistance.
The BNC connectors utilize a bayonet coupling mechanism, allowing quick and secure quarter-turn connections and disconnections. Designed for use with RG179 cable types, the crimp termination ensures a reliable and easy installation. The connector supports operating frequencies up to 3 GHz, making it suitable for high-speed data and video signals in broadcast markets meeting SMPTE 292M and 424M standards.
The operating temperature range of -35°C to 70°C allows the connector to perform reliably in various environmental conditions. The normal polarity female contact design ensures compatibility with common coaxial cable assemblies. Manufactured in Taiwan, this product offers a quality solution for electronics, telecommunications, broadcast, laboratory, commercial, and industrial equipment requiring secure RF connections.
Nickel plating on the body enhances corrosion resistance and durability. Gold plated phosphor bronze contacts ensure excellent signal transmission. BNC bayonet coupling mechanism for fast and secure connections. Suitable for RG179 cables with crimp termination for reliable installation.
Supports up to 3 GHz operating frequency for high-speed signals. Wide temperature operation from -35°C to 70°C for diverse applications. Compact and standard size fits typical coaxial connector requirements. Normal polarity design compatible with standard coaxial systems.
Manufactured under quality standards in Taiwan, Province Of China.
This connector is ideal for use in industrial, laboratory, broadcast, commercial, and telecommunications applications requiring robust and reliable coaxial connections. The BNC Series connectors are widely recognized for ease of use and excellent electrical and mechanical performance. Explore the extensive range of Coaxial Connectors and adapters to complement your system needs with confidence at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports operating frequencies up to 3 GHz, making it suitable for high-speed data and video signals.
It is designed for use with RG179 cable types and features a crimp termination for reliable installation.
The operating temperature range is from -35°C to 70°C, allowing it to function in various environmental conditions.
The body is made of nickel plated brass for corrosion resistance, and the contacts are gold plated phosphor bronze to ensure excellent conductivity.
The bayonet coupling allows for quick and secure connections with a quarter-turn operation, facilitating easy connection and disconnection.
This connector has a standard impedance of 75 Ω, making it suitable for broadcast and RF applications.
This model features a straight orientation, which is typical for many coaxial connections.
It features a female contact design with normal polarity, ensuring compatibility with common coaxial cable assemblies.
This connector is manufactured in Taiwan, Province Of China, adhering to quality standards.
It is classified as a standard size, which fits typical coaxial connector requirements.
This model utilizes a crimp termination type, ensuring a secure connection to the cable.
It is ideal for use in industrial, laboratory, broadcast, commercial, and telecommunications applications requiring secure RF connections.
