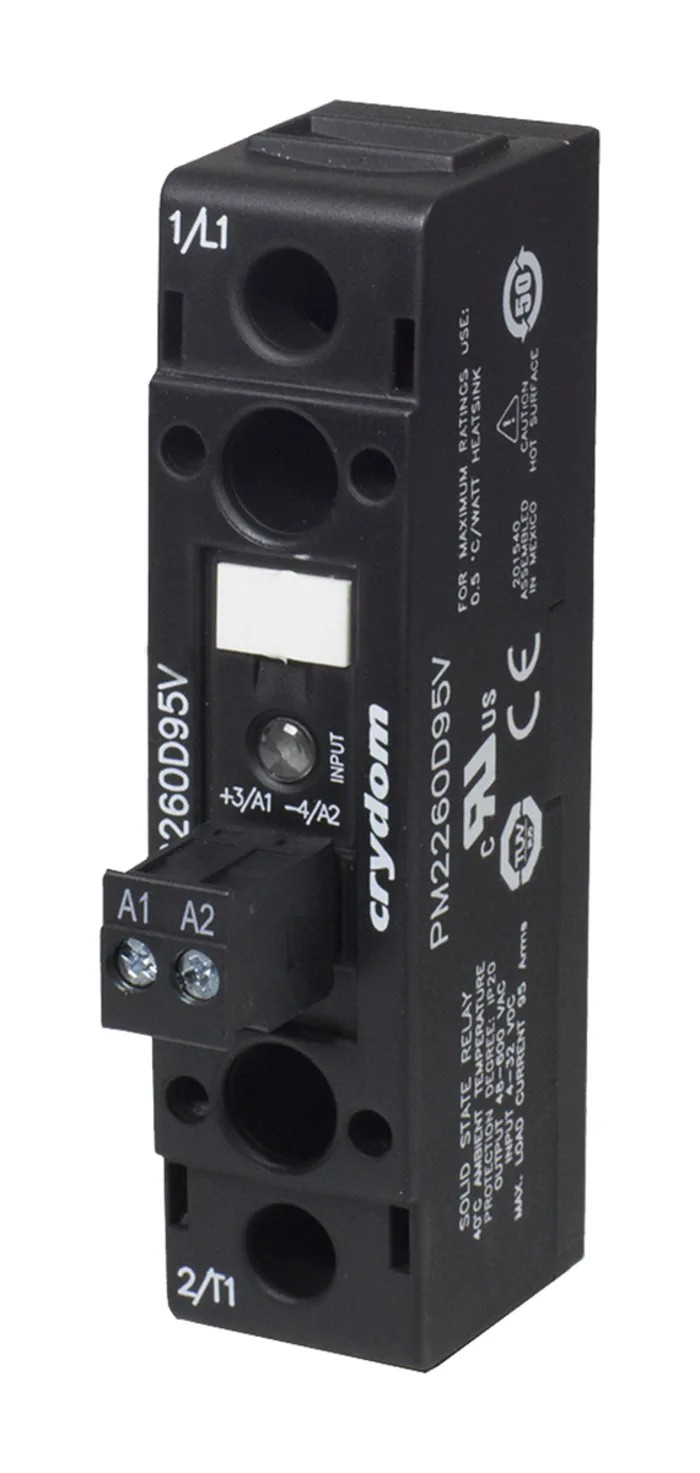

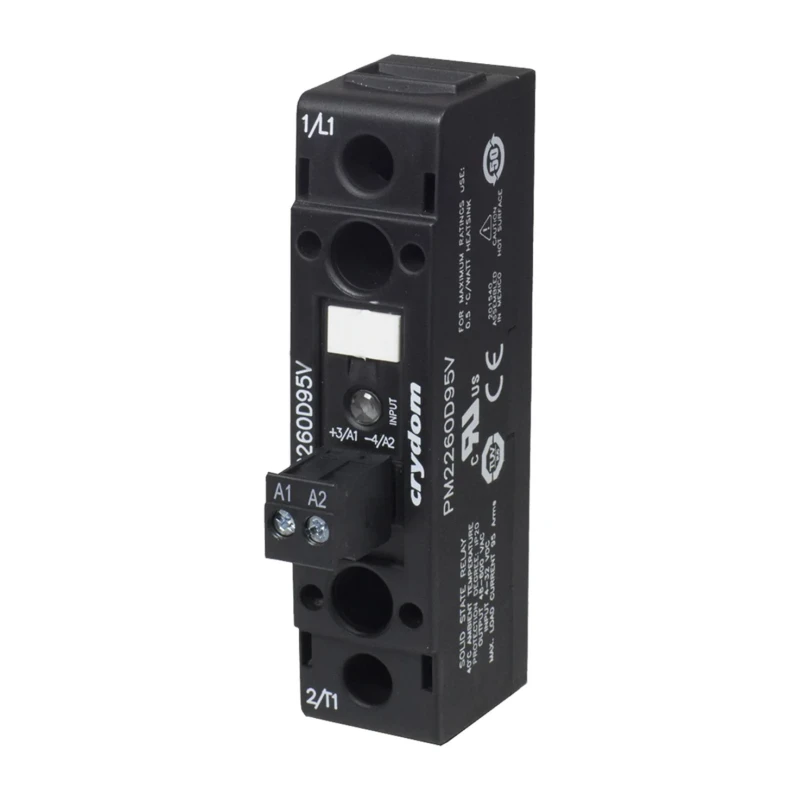

Crydom Solid State Relay 50 A Load DIN Rail Mount 600 Vrms Load 32V dc Control PM2260D50V

Crydom PM2260D50V solid state relay is designed for industrial and automation applications requiring reliable switching of loads up to 50 amps at voltages reaching 600 Vrms. This DIN rail-mounted relay offers precise control with input voltage range from 4 V DC to 32 V DC, making it suitable for a wide variety of control systems.

Its zero voltage switching function reduces electrical noise and extends relay life, while the MOSFET output ensures high-speed switching performance. The relay's robust IP20 touch-safe housing protects against accidental contact and provides basic ingress protection, ideal for manufacturing, HVAC, and industrial process control environments.

The relay supports operating temperatures from -40°C to 80°C, allowing use in harsh conditions. Its compact 22.5 mm width allows dense mounting in control panels. The device features screw terminals for secure connections with elevator screws suitable for ring terminals, facilitating easy and safe wiring.

This solid state relay is RoHS and CE compliant, meeting environmental and safety standards for industrial equipment. Thermal pad accessories are available separately to enhance heat dissipation when used in panel mount installations.

Common industrial applications include motor control, heating element switching, lighting control, machine automation, and process control. Its superior thermal performance and high surge current resistance make it a dependable component for continuous operation under demanding conditions.

Supports a maximum load current of 50 amps for reliable power handling. Designed for DIN rail mounting to fit standard industrial control panels. Operates with control voltages from 4 V DC to 32 V DC for versatile input control.

Equipped with screw terminals for secure and easy electrical connections. Features zero voltage switching to minimize electrical noise and stress on the relay contacts. Enclosed within an IP20 rated housing for touch-safe operation and basic protection.

Works reliably in temperature ranges from -40°C to 80°C for industrial environments. Compact design with dimensions 22.5mm width, 50mm depth, and 91.9mm height for space-saving installation. Low off-state leakage current of 1 mA and 8 pF capacitance for efficient performance.

Includes MOSFET output type for high-speed switching and durability. Explore the range of Crydom Solid State Relays on EnvMart to find dependable relay solutions for your industrial automation and control needs.
