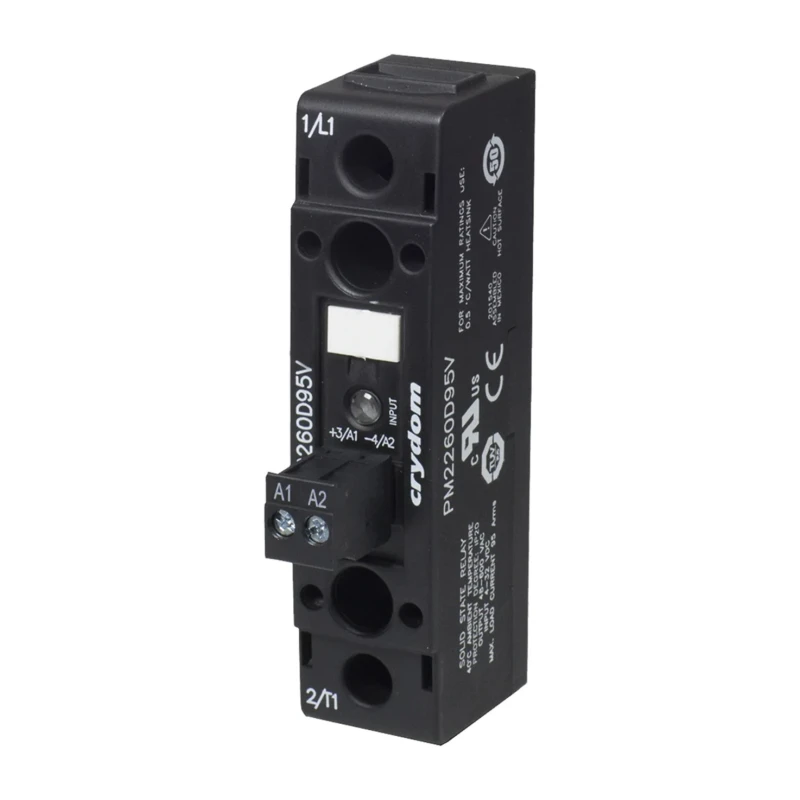

Crydom Solid State Relay, 95 A Load, DIN Rail Mount, 600 Vrms Load, 32V DC Control PM2260D95V

Crydom PM2260D95V Solid State Relay is a high-performance device offering a maximum load current of 95 A and a maximum load voltage of 600 Vrms, designed specifically for DIN rail mounting in industrial and automation applications. It supports DC control voltages from 4V to 32V, allowing integration with various control systems.

The relay features a zero voltage switching function which helps to reduce electrical noise and prolong equipment life. Its compact dimensions (91.9mm height, 50mm width, 22.5mm length) and DIN rail mount type make it ideal for compact control panels and industrial enclosures.

Equipped with secure screw terminal connections and housed in an IP20 rated casing, the relay ensures safe operation in electrical control environments. The MOSFET output type and minimal off-state leakage current of 1mA improve efficiency and reliability. The device’s capacitance of 8pF helps minimize voltage spikes during switching.

This product belongs to the NOVA22 series of Crydom relays which are recognized for their ability to handle surge currents up to 1290A for 20 milliseconds, extending protection and reliability especially when used with circuit breakers in place of fuses compliant with IEC60947-4-1.

These solid state relays are certified RoHS and CE compliant with tested resistance to operating temperatures from -40°C to 80°C, making them suitable for a wide range of industrial, electrical, automation, HVAC, manufacturing, and commercial applications.

Supports high load current up to 95 amperes for reliable power handling. DIN rail mount design ensures easy installation in control panels. Operates at a maximum load voltage of 600 Vrms suitable for AC and DC loads. Input control voltage ranges from 4V to 32V DC for flexible control compatibility.

Zero voltage switching function minimizes electrical noise during operation. Equipped with screw terminal type for secure electrical connections. Compact package with dimensions 91.9mm height, 50mm width, and 22.5mm length.

IP20 rated housing offers touch-safe protection suitable for industrial environments. Low off-state leakage current of 1mA reduces energy losses during off periods. MOSFET output type and 8pF capacitance contribute to efficient switching performance.

Explore the range of Crydom Solid State Relays on EnvMart for advanced industrial relay solutions with certified safety and high performance.
