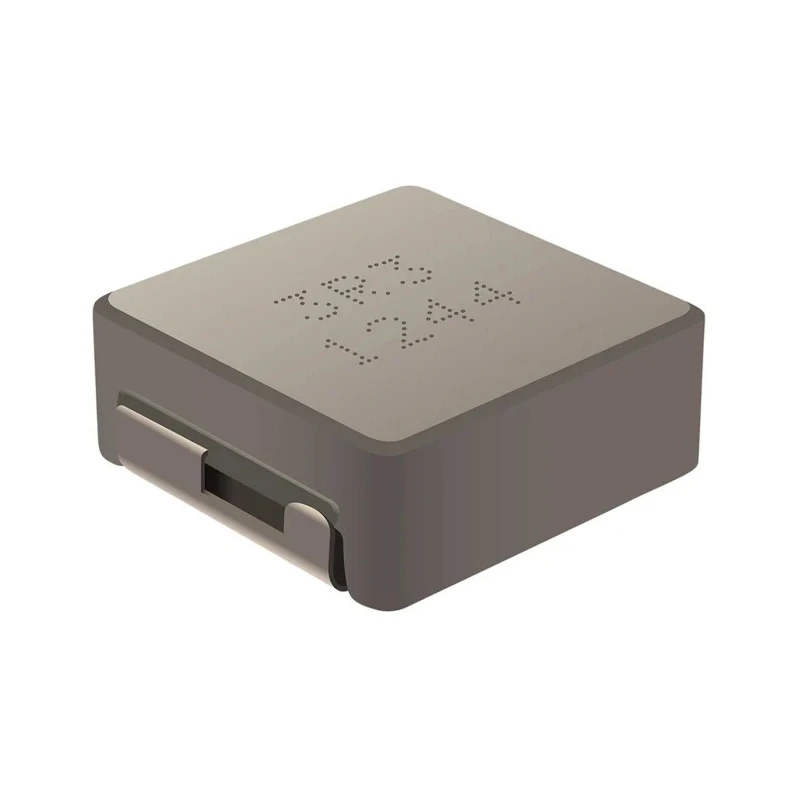

Bourns Shielded Wirewound Surface Mount Inductor 68 μH ±20% 7 A IDC Carbonyl Powder Core SRP1770TA

Bourns SRP1770TA is a shielded wirewound surface mount inductor featuring a carbonyl powder core with an inductance of 68 μH and a tolerance of ±20%. Designed to handle a maximum DC current of 7 A, this inductor is engineered for high saturation current capability and low magnetic interference thanks to its shielded design.

The component measures 17.3 mm in length, 16.9 mm in height, and 6.7 mm in depth, making it compact for surface mount applications. It comes in a 1770 package and uses solder termination for reliable PCB integration.

Operating in an extended temperature range of -40°C to 150°C, the SRP1770TA is RoHS compliant and meets the stringent AEC-Q200 automotive standard, making it highly suitable for automotive electronics such as driver assistance systems, lighting, and infotainment units. It is also ideal for industrial power supplies and DC/DC converters.

This wirewound inductor provides a maximum DC resistance of 80 mΩ and achieves a self-resonant frequency of up to 2 MHz, with a minimum quality factor of 20, ensuring excellent performance in power filtering and energy storage applications. The moulded construction provides durability and mechanical protection during assembly and operation.

Key features include carbonyl powder core material, shielded construction, and compliance with industry standards. This inductor is packaged on reels for efficient manufacturing processes.

Constructed with a carbonyl powder core and enameled copper wire ensuring high saturation current capacity. Shielded design minimizes magnetic radiation for sensitive electronic applications. Operating temperature range from -40°C up to 150°C for robust performance.

Complies with AEC-Q200 automotive standard, suitable for automotive and industrial applications. Available in a 1770 package case with 2 pins and solder termination style. Maximum DC resistance of 80 mΩ ensures efficient power handling.

Inductance tolerance of ±20% allowing precision circuit design. Maximum self-resonant frequency of 2 MHz with a minimum quality factor of 20. Moulded wirewound construction provides mechanical stability and durability. Explore more surface mount inductors and Power Inductors on EnvMart to find components suitable for industrial, automotive, and electronic manufacturing applications.
