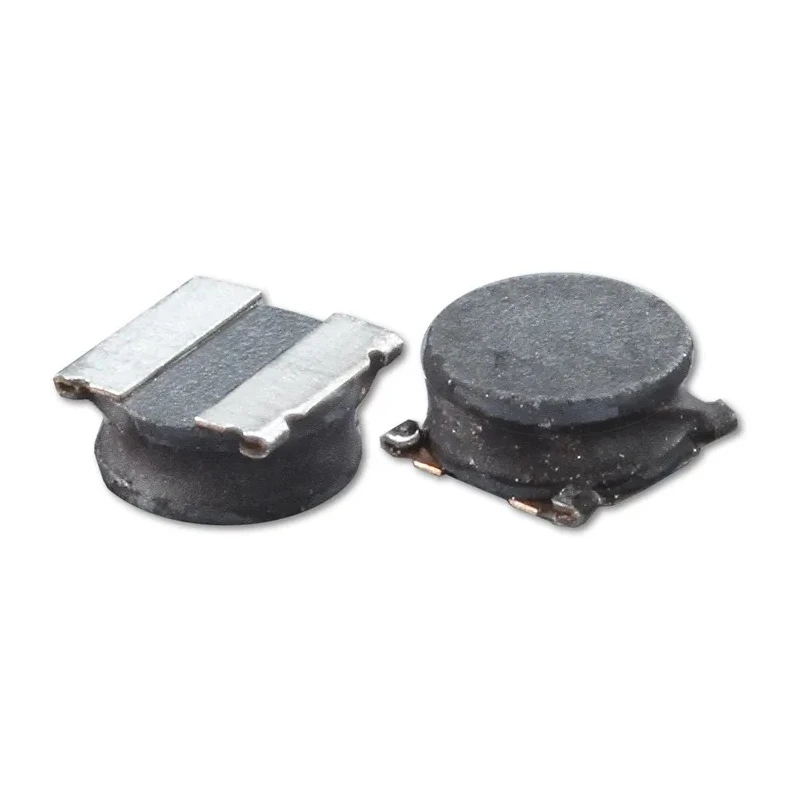

Abracon Shielded Surface Mount Inductor with Ferrite Core 2.2 μH Flat Wire Winding ±20% 1.6 A Idc ASPI-0315FS-2R2M-T2

Abracon ASPI-0315FS-2R2M-T2 shielded surface mount inductor features a ferrite core and is designed with flat wire winding to provide an inductance of 2.2 μH with a tolerance of ±20%. It supports a maximum DC current of 1.6 A Idc, making it suited for power electronics and portable communication devices such as mobile phones, digital cameras, and MP3 players.

This low profile inductor measures 3 mm in length, 2.5 mm in diameter, and 1.5 mm in height, offering a compact footprint optimized for space-constrained printed circuit board (PCB) layouts. The magnetic shielding through powder molding helps reduce electromagnetic interference (EMI), ensuring stable circuit performance.

Constructed with a flat wire winding and molded for durability, the inductor withstands mechanical stresses experienced during assembly and operation. It operates reliably across a wide temperature range from -40°C to 125°C and meets RoHS environmental compliance standards, making it ideal for modern electronics manufacturing.

The maximum self-resonant frequency of 86 MHz supports use in high-frequency circuits, and the device is supplied on tape and reel packaging, facilitating efficient surface mount technology (SMT) assembly processes. It has four pins and a surface mount termination style suitable for automated PCB mounting systems.

Compact 3 mm x 2.5 mm x 1.5 mm low-profile design. Magnetically shielded by magnetic powder molding for EMI reduction. Flat wire winding construction for stable inductance and current capacity. Maximum DC current of 1.6 A with ±20% inductance tolerance.

Operating temperature from -40°C to 125°C for harsh environment reliability. RoHS compliant and compatible with standard reflow soldering profiles. High reliability to mechanical stress during manufacturing and use. Supplied in tape and reel packaging for automated SMT assembly.

Maximum self-resonant frequency up to 86 MHz for high-frequency circuits.

This surface mount inductor is suitable for industrial, electronic component manufacturing, telecommunications, and consumer electronics applications. EnvMart’s selection of Abracon inductors ensures reliable high-performance components for compact electronic designs.
