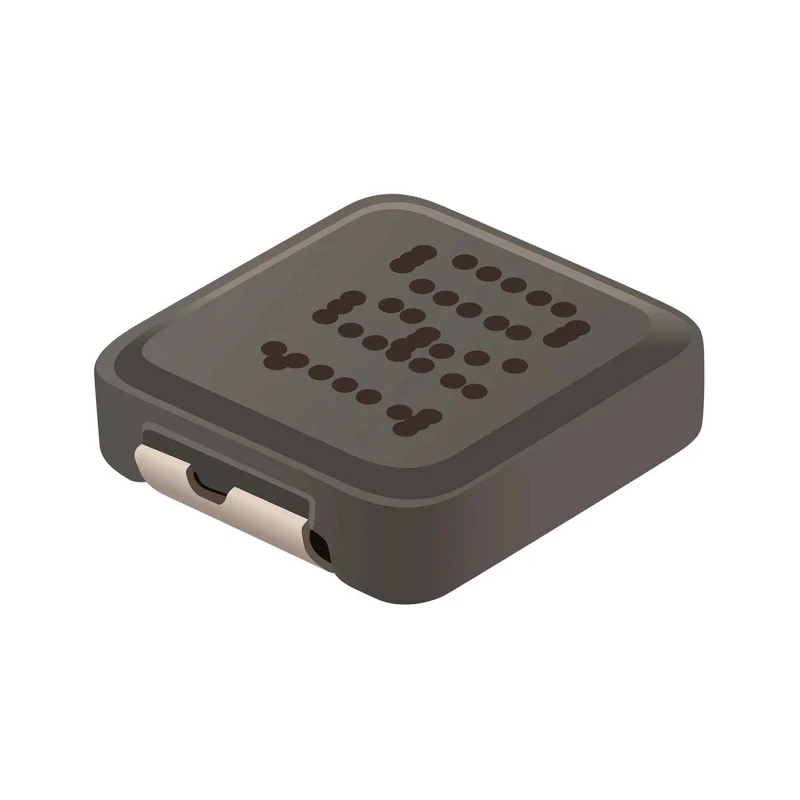

Bourns Shielded Wirewound Surface Mount Inductor 10 μH ±20% 2 A Maximum DC Current Carbonyl Powder Core SRP5015TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 5.2mm |
| Length | 5.7mm |
| Model | SRP5015TA |
| Depth | 1.3mm |
| Packaging | Reel |
| Series | SRP5015TA |
| Maximum Operating Temperature | 150°C |
| Wire | Enamelled copper |
| Minimum Operating Temperature | -40°C |
| Core Material | Carbonyl Powder |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 5015 |
| Maximum DC Current | 2A |
| Pin Count | 2 |
| Maximum DC Resistance | 235mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 21MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor uses a carbonyl powder core for high saturation current.
- Its shielded construction minimizes magnetic radiation.
- The package case size is 5015 with a length of 5.7 mm and height of 5.2 mm.
- It meets the AEC-Q200 automotive standard and is RoHS compliant.
- Maximum operating temperature is 150°C, suitable for automotive and industrial applications.
- The inductor construction is wirewound with enamelled copper wire.
- The type termination style is solder with 2 pins for mounting.
- Maximum DC resistance is 235 mΩ, and maximum self-resonant frequency is 21 MHz.
Product Description
Bourns SRP5015TA is a shielded wirewound surface mount inductor featuring a carbonyl powder core designed for high saturation current and low magnetic radiation. It has an inductance value of 10 μH with ±20% tolerance and can handle a maximum DC current of 2 A. The compact 5015 package case measures 5.7 mm in length, 5.2 mm in height and 1.3 mm in depth, making it ideal for space-sensitive automotive and industrial applications.
This inductor series complies with the automotive standard AEC-Q200, making it suitable for systems including driver assistance devices, vehicle lighting, and infotainment electronics. Its RoHS compliance and halogen-free construction enhance environmental safety. Wirewound construction using enamelled copper wire ensures reliable electrical performance and durability. The solder termination style with 2 pins facilitates secure mounting on printed circuit boards.
The SRP5015TA inductor has a maximum operating temperature of 150°C and a maximum DC resistance of 235 mΩ. Its maximum self-resonant frequency of 21 MHz and minimum quality factor of 10 contribute to stable performance in high-frequency power applications such as power supplies and DC-DC converters.
Shielded construction to minimize magnetic interference. Carbonyl powder core with high saturation current capacity. Compliant with the AEC-Q200 automotive standard. Compact 5015 package size tailored for surface mounting.
Designed for operation at temperatures up to 150°C. RoHS compliant and halogen free for environmental safety. Wirewound inductor with enamelled copper wire construction. Solder termination style with 2-pin configuration.
Wide inductance range in the series from 0.15 μH to 22 μH.
This inductor is ideal for use in automotive electronic systems, HVAC power supplies, industrial manufacturing, and other applications requiring reliable, low-profile inductors with high saturation current and low magnetic emissions. Its robust features and quality standards make it a dependable component in demanding environments.
Explore the full range of Bourns surface mount inductors and Power Inductors on EnvMart for various electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 10 μH with a tolerance of ±20%.
It can handle a maximum DC current of 2 A.
The dimensions of this model are 5.7 mm in length, 5.2 mm in height, and 1.3 mm in depth.
The maximum operating temperature is 150°C, making it suitable for high-temperature applications.
Yes, it complies with the AEC-Q200 automotive standard, making it suitable for automotive applications.
It features a carbonyl powder core designed for high saturation current.
The termination style is solder with a 2-pin configuration for easy mounting.
The maximum self-resonant frequency is 21 MHz, which is beneficial for high-frequency applications.
The minimum operating temperature is -40°C, allowing for use in cold environments.
The maximum DC resistance is 235 mΩ, which contributes to its efficiency in circuits.
The inductor is constructed with enamelled copper wire, ensuring reliable electrical performance.
It is packaged on a reel, facilitating easy handling and assembly.
