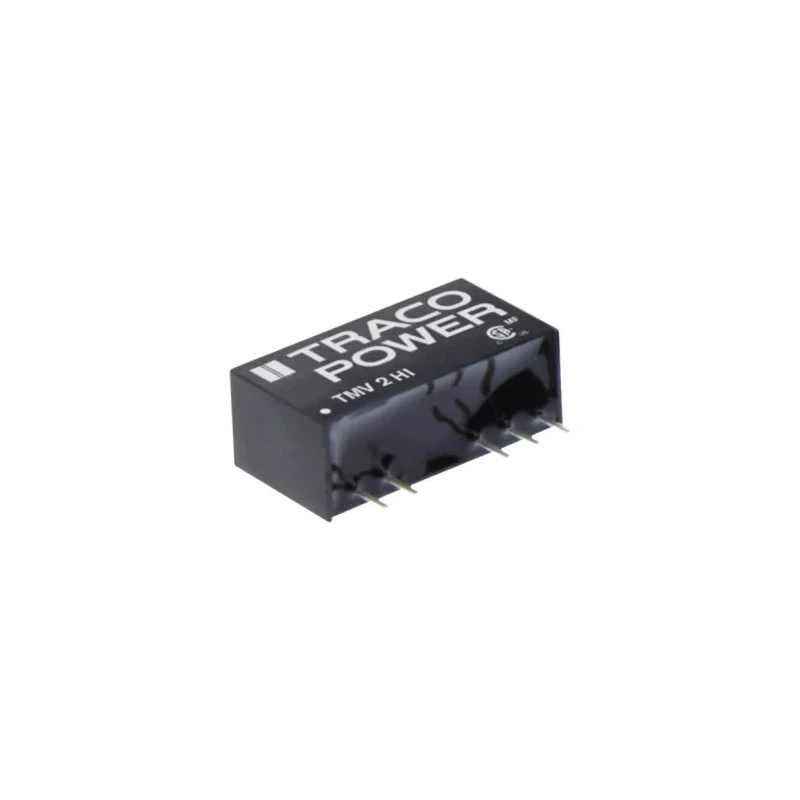

TRACOPOWER DC/DC Converter 9V DC Output 222mA 16.5V DC Maximum Input 13.5V Minimum Input 2W Through Hole SIP-7 TMV 2-1509SHI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMV 2HI DC/DC Converter, 9V dc/ 222 mA |
| Brand | TRACOPOWER |
| Efficiency | 75% |
| Length | 19.5mm |
| Model | TMV 2-1509SHI |
| Depth | 10.2mm |
| Width | 7.1mm |
| Mount Type | Through Hole |
| Series | TMV 2HI |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1110000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 16.5V dc |
| Minimum Input Voltage | 13.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 222mA |
| Isolation Voltage | 5.2kV dc |
| EN 60950-1 | 2006/A11:2009/A1:2010/A12:2011 |
Key Features
- The converter is designed for high isolation with 5.2kV DC isolation voltage ensuring safety in harsh environments.
- Compact SIP-7 package dimensions are 19.5mm length, 7.1mm width, and 10.2mm depth for easy PCB integration.
- Operates reliably within a wide temperature range from -40°C to +85°C without derating.
- Achieves an efficiency of 75% suitable for various industrial and electronic applications.
- Built to meet industry standards CAN/CSA, ANSI/UL, cULus, IEC, and EN certifications for quality assurance.
- Features a single output with ±5% output voltage adjustment range for precise voltage regulation.
- Provides continuous short-circuit protection for robust, long-term operation with MTBF of approximately 1,110,000 hours.
- The TRACOPOWER TMV 2HI series is ideal for space-critical IGBT applications and modern transportation electronics.
Product Description
TRACOPOWER TMV 2-1509SHI DC/DC Converter is a miniature, isolated 2 Watt power supply module designed for reliable voltage conversion with high efficiency and isolation. Delivering 9V DC output at 222mA from input voltages ranging between 13.5V and 16.5V DC, the TMV 2-1509SHI supports varied electronic and industrial uses including transportation, IGBT drives, and modern appliances.
The device features a SIP-7 through-hole package with compact dimensions of 19.5mm length, 7.1mm width, and 10.2mm depth, enabling space-saving PCB integration. It offers a high isolation voltage of 5.2kV DC, making it suitable for applications requiring electrical isolation and safety compliance.
Operating within an extended temperature range of -40°C to +85°C, the converter maintains optimal function without power derating. Its 75% efficiency ensures effective power usage with reduced heat generation. The product comes with continuous short-circuit protection and a long MTBF of 1,110,000 hours, supporting sustained operation in demanding environments.
Designed to meet rigorous international standards including CAN/CSA-C22.2 No 60950-1-07, ANSI/UL No. 60950-1, IEC 60950-1, and EN 60950-1 series certifications, this DC/DC converter guarantees quality and safety compliance. The adjustable output voltage range of ±5% provides flexibility for precise voltage tuning in sensitive circuits.
The TMV 2HI series DC-DC converters are optimized for space-critical IGBT and transportation applications, offering compact size, high isolation, and robust thermal performance. The through-hole mounting type ensures secure and durable PCB attachment, suitable for industrial, laboratory, HVAC, manufacturing, and automotive electronics sectors.
The converter delivers 9V DC output at 222mA current with 2W maximum power. Compact SIP-7 package supports through-hole PCB mounting. High isolation voltage rating of 5.2kV DC ensures safety. Wide operating temperature range: -40°C to +85°C.
75% efficiency for optimal power conversion. Complies with major international safety standards and approvals. Output voltage adjustable ±5% for precise application control. Long MTBF ~1,110,000 hours ensures reliability.
Explore our extensive selection of DC/DC Converters at EnvMart for reliable power management solutions tailored to your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 9V DC output at a current of 222mA.
It operates with input voltages ranging from 13.5V to 16.5V DC.
The maximum output power of this unit is 2W.
The SIP-7 package has dimensions of 19.5mm in length, 7.1mm in width, and 10.2mm in depth.
It features a high isolation voltage rating of 5.2kV DC.
The operating temperature range is from -40°C to +85°C without derating.
This unit achieves an efficiency of 75%.
Yes, it provides continuous short-circuit protection for robust operation.
It complies with CAN/CSA, ANSI/UL, IEC, and EN standards for quality assurance.
The mean time between failures (MTBF) is approximately 1,110,000 hours.
This model features a single output.
It supports through-hole mounting for secure PCB attachment.
