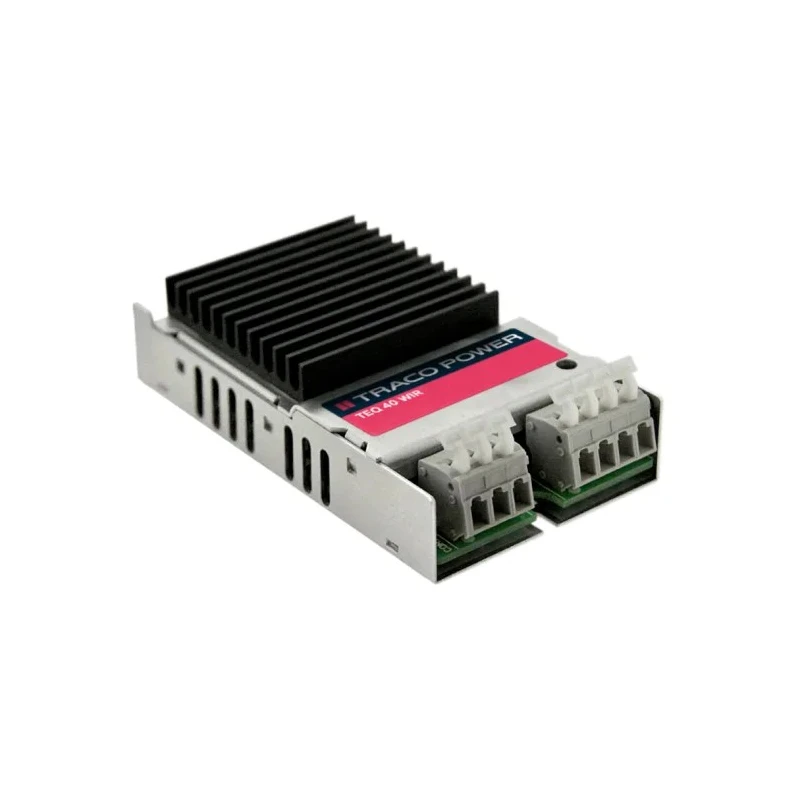

TRACOPOWER High-Efficiency 40W Dual Output DC/DC Converter 15V/-15V Chassis Mount TEQ 40-2423WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEQ 40WIR DC/DC Converter, 15V dc/, 36V |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 103mm |
| Model | TEQ 40-2423WIR |
| Depth | 26.1mm |
| Width | 57.2mm |
| Mount Type | Chassis Mount |
| Series | TEQ 40WIR |
| Maximum Operating Temperature | 92°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 1.33mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 1:6 |
| Output Voltage 2 | -15V dc |
| Input Ratio1 | 6 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- It provides a maximum output power of 40W suitable for industrial and railway applications.
- The device has a compact metal chassis with dimensions 103mm length x 57.2mm width x 26.1mm depth.
- It supports an isolation voltage of 1.6 kV DC ensuring safety and reliability.
- Operational temperature range is broad from -40°C to +92°C with thermal and short circuit protection.
- This model has a mean time between failures rating of 1,000,000 hours for enhanced durability.
- Mounting type is chassis mount, suitable where PCB mounting is not feasible.
- Includes under-voltage lockout to prevent damage during low input voltage conditions.
Product Description
TRACOPOWER TEQ 40-2423WIR is a high-performance DC/DC converter module delivering dual isolated outputs at 15V and -15V DC with a maximum output power of 40W. It operates with an ultra-wide input voltage range of 9.5V to 36V DC, making it adaptable to varying supply conditions especially in industrial and railway environments.
Housed in a rugged metal chassis designed for secure mounting on a chassis rather than PCB, this module is engineered to maintain high efficiency around 89% and withstand operating temperatures from -40°C up to 92°C, using its heatsink design and thermal management features.
The converter offers essential protections including under voltage lockout, over temperature shutdown, and short circuit protection to ensure reliability and longevity in demanding conditions. It features an isolation voltage of 1600V DC, providing electrical safety in application.
The unit's compact dimensions of 103 mm length, 57.2 mm width, and 26.1 mm depth allow flexible installation in space-constrained setups. With a robust MTBF of one million hours, it promises exceptional reliability.
The converter supports dual outputs at +15V and -15V DC. Ultra-wide input range accommodates 9.5V to 36V DC sources. Designed for chassis mounting with a durable metal enclosure. High electrical isolation and protection features ensure safety.
Operates efficiently up to 89% across industrial temperature ranges. Includes under-voltage lockout and short circuit protection. Compact size and lightweight facilitate versatile integration. Reliable long-life performance with MTBF of 1,000,000 hours.
This DC/DC converter is ideal for industrial automation, railway systems, power supply units, and other demanding electrical equipment applications where stable, isolated dual voltage outputs are required. Its rugged design ensures it withstands harsh environmental conditions while maintaining performance.
Explore the TRACOPOWER series of DC/DC Converters for reliable power management and efficient voltage conversion. Browse EnvMart to find compatible power components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 40W, suitable for various industrial applications.
This unit provides dual outputs at +15V and -15V DC.
It operates with an ultra-wide input voltage range of 9.5V to 36V DC.
The efficiency of this model is around 89%, ensuring effective power conversion.
The dimensions are 103 mm in length, 57.2 mm in width, and 26.1 mm in depth.
This model is designed for chassis mounting, making it suitable for installations where PCB mounting is not feasible.
It features an isolation voltage of 1.6 kV DC, ensuring electrical safety in applications.
The operational temperature range is from -40°C to +92°C, allowing it to function in extreme conditions.
It includes under-voltage lockout, over-temperature shutdown, and short circuit protection for enhanced reliability.
The MTBF rating for this model is 1,000,000 hours, indicating a high level of reliability.
This model has two outputs, providing both +15V and -15V DC.
It is ideal for industrial automation, railway systems, and other demanding electrical equipment applications.
