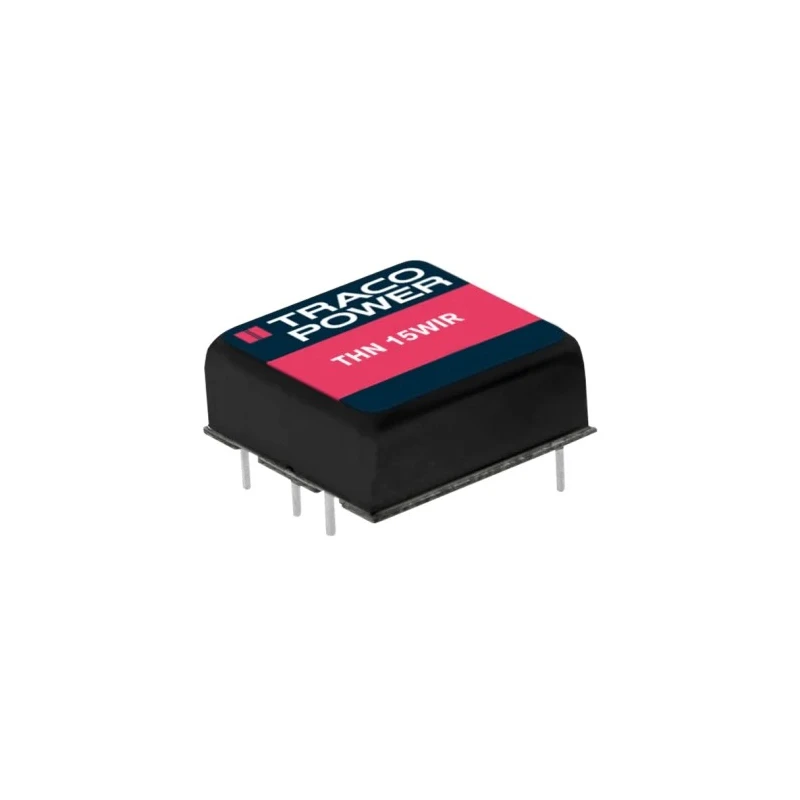

TRACOPOWER DC/DC Converter 15 W, PCB Mount, 5V DC Output, 1.5A, 9 - 36V Input THN 15-2421WIR

The TRACOPOWER THN 15-2421WIR is a high-performance DC/DC converter designed for industrial environments requiring robust, reliable power conversion. With a compact PCB mount footprint, this module delivers a regulated 5V DC output at up to 1.5A, and supports an ultra-wide input voltage range of 9V to 36V DC, offering flexibility for applications with variable supply conditions.

Featuring a maximum output power of 15 W and high typical efficiency of 86%, the THN 15-2421WIR is well-suited for demanding operations. Its rugged construction ensures resistance to electromagnetic interference, shock, and vibration, making it especially appropriate for railway, transportation, industrial electronics, and mobile instrumentation scenarios.

The converter offers two isolated outputs and a 4:1 input ratio. Output voltage is adjustable within ±4.5V DC to ±5.5V DC for custom installation requirements, with remote on/off control allowing for further operational flexibility. Safety is ensured by a 3kV DC isolation voltage, protecting sensitive downstream equipment and operators.

Reliable operation is guaranteed from -40°C to 90°C, thanks to careful thermal and EMI management. Built-in protection features include EMI filtering, under-voltage lockout, and short circuit protection - helping extend mean time between failures (MTBF) to 1,600,000 hours. Compact dimensions of 25.4 mm × 25.4 mm × 9.9 mm allow easy PCB mounting where space is limited.

Common applications include railway systems, transportation equipment, industrial control panels, and data acquisition instrumentation, especially in mobile and harsh environments requiring consistent, isolated power.

Provides 5V DC output voltage with up to 1.5A current for stable power supply. Supports an ultra-wide input voltage range from 9V to 36V DC, ideal for various industrial applications. Compact PCB mount design facilitates integration in space-sensitive environments.

Offers maximum output power of 15 W and high efficiency at 86%. Features 3kV DC isolation voltage, ensuring safe operation and protection. Operates reliably in harsh environments, with an operating temperature from -40°C to 90°C.

Adjustable output voltage range and remote on/off capability for versatile control. Built-in EMI filters, under-voltage lockout, and short circuit protection enhance reliability. Discover more industrial power solutions and explore the full range of TRACOPOWER DC/DC Converters in the Electronics & Electricals category at EnvMart.
