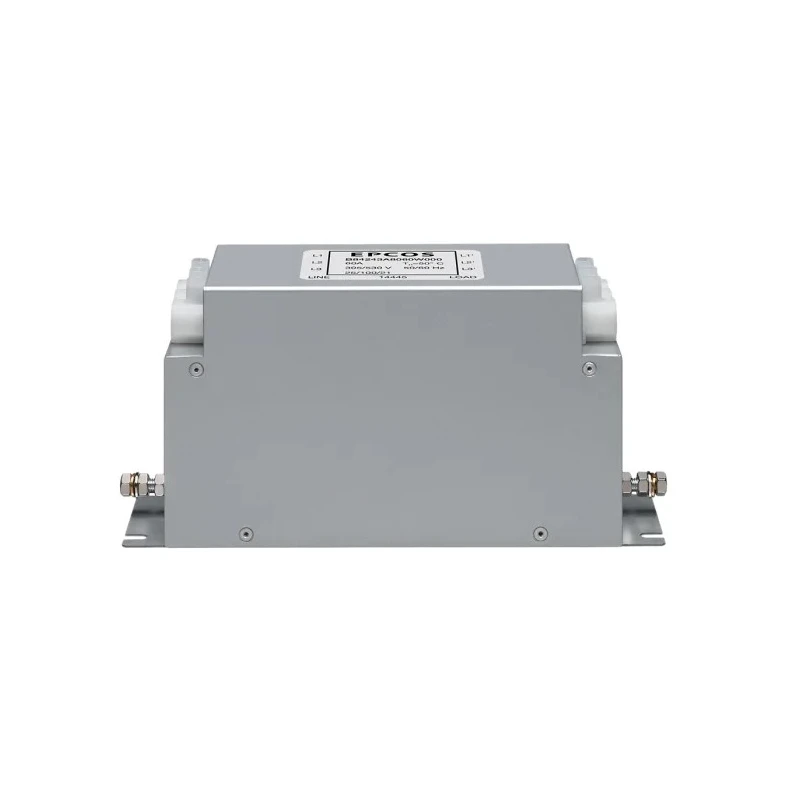

TDK 3 A 530V AC 50Hz 60Hz Chassis Mount EMC Filter Terminal Block 3 Phase B84243A8003U000

TDK B84243A8003U000 is a professional-grade EMC filter designed for industrial and commercial applications requiring reliable noise suppression and filtering on 3 phase power lines. This chassis mount filter supports 3 A maximum current at 530V AC voltage and operates efficiently at standard industrial frequencies of 50 Hz and 60 Hz. The metal casing provides durability and EMI shielding, suitable for power supplies, textile machines, packaging equipment, and similar machinery where electromagnetic compatibility is critical.

The filter is engineered to operate safely in harsh environments with operating temperature range from -25°C to 100°C. It features low leakage current rated at 2.6mA, making it compliant with safety regulations and minimizing potential interference. The terminal block termination style includes finger-safe blocks enhancing worker safety during electrical installation or maintenance.

Compact dimensions of 190mm length, 95mm height, and 40mm depth allow integration into various industrial chassis or control panels without requiring excessive space. The device has a resistance of 40 milliohms, ensuring minimal voltage drop and power dissipation during operation. It is certified under UL 1283 standard for line filters, ensuring quality and reliability.

This EMC filter from TDK’s B84243A series is manufactured in China and is ideal for industries such as industrial manufacturing, electrical machinery, power electronics, textile processing, and packaging automation where power line noise suppression is a necessity. Installation is straightforward with chassis mounting and terminal block termination for secure electrical connections.

Professional range of three phase power line EMC filters in metal case. Suitable for power supplies, textile machines, and packaging machines. Low leakage current of 2.6 mA to ensure safety and compliance. Operates reliably between -25°C and 100°C temperatures.

Chassis mount style for easy and secure installation. Equipped with finger-safe Terminal Blocks for user protection. Compact size dimensions: 190mm length, 95mm height, 40mm depth. Complies with UL 1283 safety standard. Resistance value of 40 mΩ ensures minimal power loss.

Designed for 3 phase electrical systems requiring a 530V AC maximum voltage. Explore the full range of EMC Filters and related power line filters on EnvMart for industrial-grade electronic component solutions.
