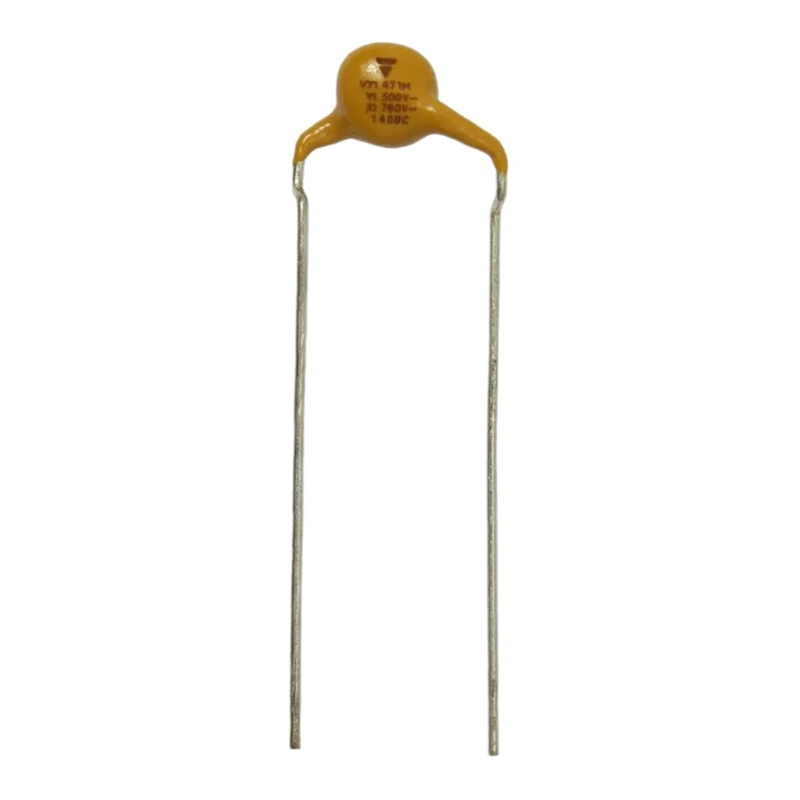

Vishay Single Layer Ceramic Capacitor 3.3 nF 500, 760V AC Through Hole Y5U Dielectric VY1 Compact VY1332M51Y5UC63V0
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500, 760V ac |
| Diameter | 13mm |
| Brand | Vishay |
| Height | 20mm |
| Model | VY1332M51Y5UC63V0 |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | VY1 Compact |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±20 % |
| Capacitance | 3.3nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 2.5% |
| Standards/Approvals | CSA, RoHS, IEC 60384-14, DIN EN 60384-14 |
| Package/Case | Disc |
| Pin Count | 2 |
| Dielectric | Y5U |
Key Features
- High reliability single layer AC disc capacitor construction.
- Encapsulated in flame retardant epoxy resin for enhanced safety.
- Radial tinned copper clad steel leads ensure durable connectivity.
- Operates within a temperature range of -40°C to 125°C for wide application scope.
- Meets CSA, RoHS, IEC 60384-14, and DIN EN 60384-14 standards.
- Dissipation factor of 2.5% enabling efficient AC performance.
- Can withstand 10 kV pulses (10 per polarity) for surge robustness.
- Suitable for line bypass, antenna coupling, and across-the-line applications.
Product Description
Vishay VY1332M51Y5UC63V0 is a single layer ceramic capacitor designed with a capacitance of 3.3 nF and capable of handling AC voltages of 500 and 760 V. It is engineered for through hole mounting with a compact VY1 series disc package and Y5U dielectric material, delivering ±20% capacitance tolerance.
This capacitor is constructed using a ceramic disc coated with silver on both sides and encapsulated in flame retardant epoxy resin to ensure high reliability and safety even under severe operating conditions. The radial leads are made from tinned copper clad steel enhancing mechanical stability and solderability.
Operating temperature ranges from -40°C to 125°C making it suitable for diverse industrial and commercial electronic applications. Its 2.5% dissipation factor supports efficient energy handling in AC circuits.
Flame retardant epoxy encapsulation enhances safety. Disc package dimensions: 20mm height, 13mm diameter, 5mm width with radial leads. Compliant with international standards including CSA, RoHS, IEC 60384-14, and DIN EN 60384-14.
Capable of withstanding 10 kV pulses (10 per polarity) ensuring protection against voltage spikes. Excellent for line bypass, antenna coupling, and across-the-line filtering applications. Y5U dielectric provides a compact design with cost-effectiveness.
Manufactured in China under Vishay’s stringent quality control, this capacitor is ideal for industrial, manufacturing, HVAC, telecommunications, and consumer electronics circuits where reliable AC filtering and coupling are required.
Explore more Vishay electronic components and capacitors in the Electronics & Electricals category at EnvMart for trusted performance and quality.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 3.3 nF.
It is rated for AC voltages of 500V and 760V.
This capacitor operates within a temperature range of -40°C to 125°C.
The dimensions are 20mm in height, 13mm in diameter, and 5mm in width.
It is designed for through hole mounting.
The dielectric material is Y5U.
The dissipation factor is 2.5%.
It meets CSA, RoHS, IEC 60384-14, and DIN EN 60384-14 standards.
It features radial tinned copper clad steel leads for enhanced connectivity.
It is suitable for line bypass, antenna coupling, and across-the-line applications.
This model has 2 pins.
It is manufactured in China under Vishay’s quality control.
