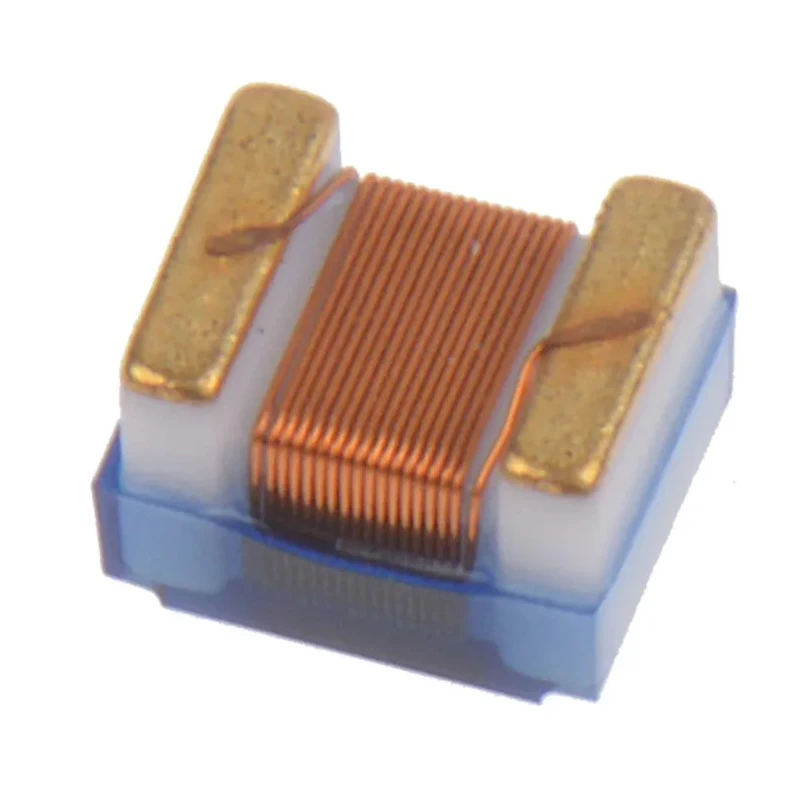

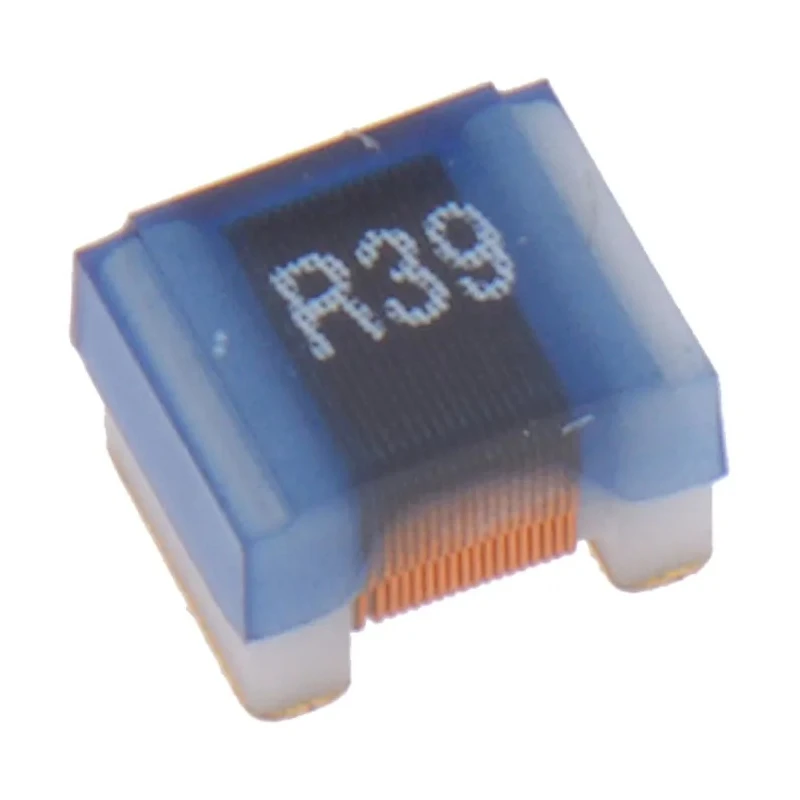

Wurth Elektronik WE-KI 1008A Shielded Wirewound Surface Mount Inductor, Ceramic Core, 390 nH, 470 mA, Q:45 744762239A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.6mm |
| Length | 2.5mm |
| Model | 744762239A |
| Depth | 2mm |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 390nH |
| Standards/Approvals | RoHS |
| Package/Case | 1008A |
| Maximum DC Current | 470mA |
| Maximum DC Resistance | 1.06Ω |
| Maximum Self Resonant Frequency | 530MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Wirewound |
Key Features
- This 1008A package case inductor offers excellent shielding and wirewound construction for stable performance.
- The inductance value is precisely 390 nanohenries for accurate circuit design.
- Maximum DC current rating of 470 mA supports moderate power applications.
- Features a ceramic core material with high thermal stability for operation between -40°C and 125°C.
- Maximum DC resistance is 1.06 Ohms, ensuring efficiency in power transfer.
- The inductor has a maximum self-resonant frequency of 530 MHz suitable for RF and wireless communication circuits.
- RoHS compliant ensuring environmental and safety standards adherence.
- Recommended for applications including wireless LAN, Bluetooth, and RF transceiver communications.
Product Description
Wurth Elektronik 744762239A WE-KI 1008A Shielded Wirewound Surface Mount Inductor features a ceramic core designed for high-frequency electronic circuits. With an inductance of 390 nH and a maximum DC current capacity of 470 mA, it provides reliable inductance performance and excellent Q factor of 45 for signal integrity.
This inductor's wirewound construction and shielding enhance its stability and reduce electromagnetic interference, making it ideal for applications in wireless LAN, Bluetooth, and RF transceiver communications. The component operates efficiently between -40°C minimum and 125°C maximum operating temperatures, suitable for demanding industrial and communication environments.
The compact 1008A package with dimensions 2.5 mm length, 1.6 mm height, and 2 mm depth enables easy surface mounting on PCBs, supporting modern electronic manufacturing techniques such as reflow soldering.
The maximum DC resistance of 1.06 ohms ensures minimal power loss during operation, while the high self-resonant frequency of 530 MHz broadens the range of frequency applications. This RoHS-compliant inductor also assures compliance with environmental regulations.
This Wurth Elektronik wirewound surface mount inductor is widely used in industrial, telecommunications, electronic manufacturing, and RF signal applications. Its design supports the latest standards in wireless communication circuitry.
1008A package shielded wirewound inductor with ceramic core. Inductance of 390 nH ensuring circuit tuning accuracy. Current rating up to 470 mA DC. High Q factor of 45 for reduced losses at high frequencies. Temperature range from -40°C to 125°C for industrial reliability.
Maximum DC resistance at 1.06 Ohms. Maximum self-resonant frequency 530 MHz for RF applications. Compact dimensions allow for surface mounting on PCBs. RoHS compliant for environmental safety. Explore our range of electronic components and Inductors at EnvMart for all industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is precisely 390 nanohenries (nH).
It has a maximum DC current rating of 470 mA, suitable for moderate power applications.
The maximum self-resonant frequency is 530 MHz, making it suitable for RF applications.
The dimensions of the 1008A package are 2.5 mm in length, 1.6 mm in height, and 2 mm in depth.
This inductor operates efficiently between -40°C and 125°C, suitable for demanding environments.
The maximum DC resistance is 1.06 Ohms, ensuring efficiency in power transfer.
It features a ceramic core material, which provides high thermal stability.
Yes, this inductor is RoHS compliant, adhering to environmental and safety standards.
It is recommended for applications including wireless LAN, Bluetooth, and RF transceiver communications.
The inductor has a minimum quality factor of 45, which helps reduce losses at high frequencies.
This model features a wirewound construction, enhancing its stability and reducing electromagnetic interference.
The country of origin for this inductor is Malaysia.
