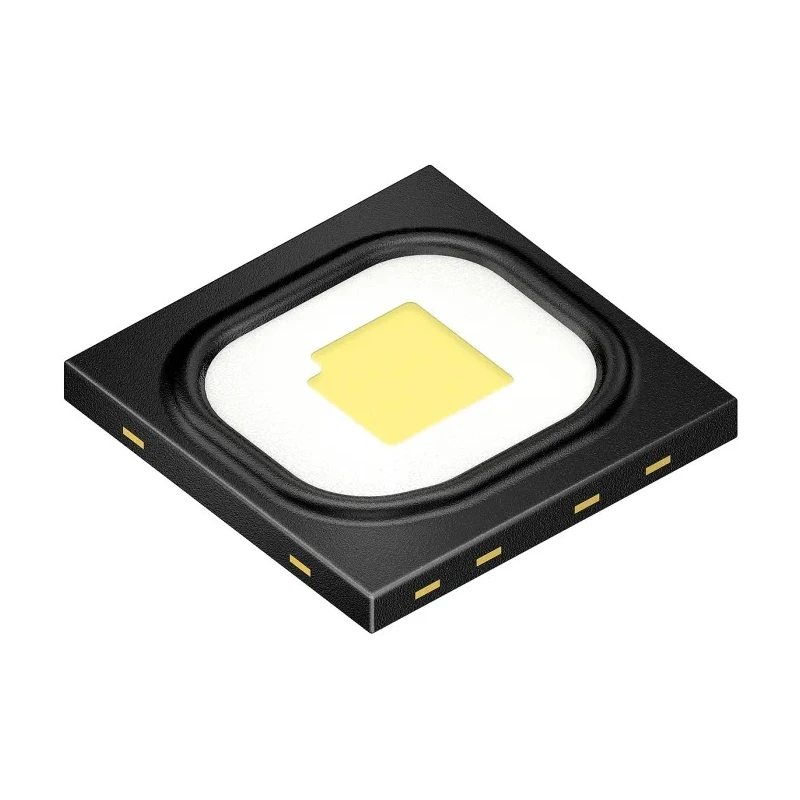

ams OSRAM 3.05 V White LED SMD Epoxy Surface Mount OSLON Black Flat LUW HWQP-8M7N-EBVF46FCBB46-8F8H

ams OSRAM LUW HWQP-8M7N-EBVF46FCBB46-8F8H White LED SMD Epoxy Surface Mount LED operates at 3.05 V with a maximum forward current of 1500 mA. This high brightness LED belongs to the OSLON Black Flat series, renowned for compact, ultra-flat multi-chip arrays that allow slim design implementations. Its SMD epoxy package and QFN construction provide excellent thermal management with low resistance of 4K/W, enhancing performance and reliability in harsh environments.

Featuring a color temperature of 5500 K, the LED outputs a luminous flux between 250 and 400 lumens, making it suitable for demanding automotive lighting applications. The viewing angle is 120 degrees through an oval lens measuring 3.85 x 3.85 x 0.6 mm, designed for uniform light emission without additional lenses. The robust design and compliance with IEC 62471:2008 and automotive standard AEC-Q101 ensure safety and quality.

This LED is ideal for automotive headlamps including low and high beams, fog lights, daytime running lights, cornering lights, bicycle lights, and backup lights. Its surface mount and compact form factor enable flexible integration in slim and space-constrained lighting systems.

This LED features a forward voltage of 3.05 V and operates safely at a maximum current of 1500 mA. It comes in a compact SMD epoxy package with a surface mount design, ideal for slim and space-efficient layouts. The LED provides luminous flux ranging from 250 to 400 lumens with a color temperature of 5500K.

Designed for automotive use, it meets AEC-Q101 standards and IEC 62471:2008 safety regulations. Its oval lens shape and 120-degree viewing angle ensure uniform and wide light distribution. The robust QFN package with ceramic converter ensures low thermal resistance of 4K/W.

Applications include automotive headlamps, fog lights, day running lights, cornering lamps, bicycle lights, and backup lights.

Manufactured in Malaysia, this LED is supplied in tape and reel packaging for efficient automated assembly. The OSLON Black Flat series LEDs from ams OSRAM are known for their superior light quality and thermal stability, offering excellent performance in industrial, automotive, and commercial lighting applications. Browse more LEDs and optoelectronic components on EnvMart for your electronics projects.
