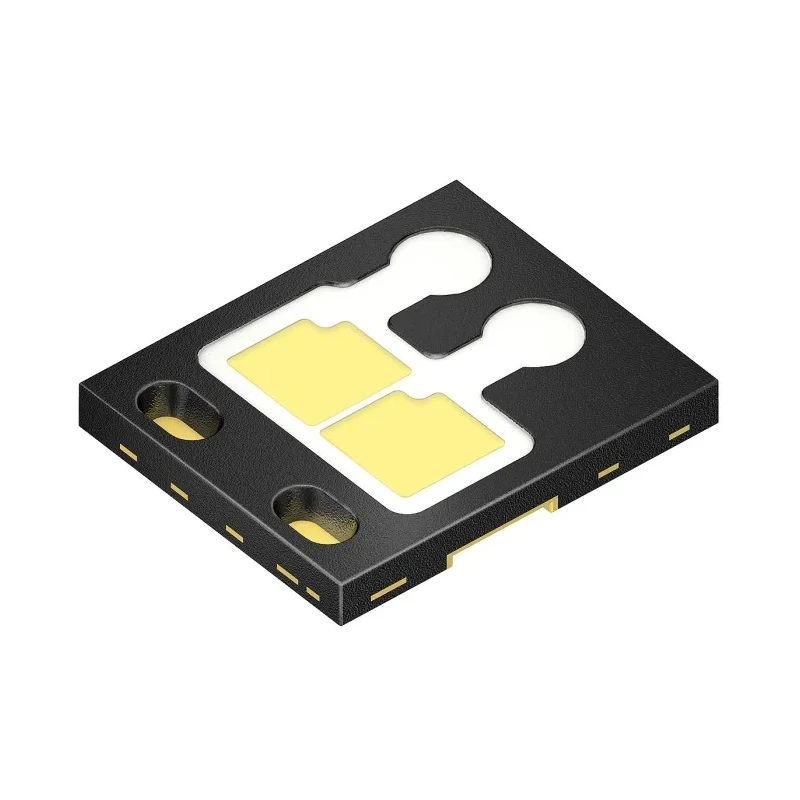

ams OSRAM White LED SMD Epoxy Surface Mount OSLON Black Flat 6.55 V Forward Voltage KW H2L531.TE -6P5Q-EBVF46FCBB46-1

ams OSRAM KW H2L531.TE -6P5Q-EBVF46FCBB46-1 White LED SMD Epoxy Surface Mount from the OSLON Black Flat Series is a highly efficient, ultra-flat multi-chip LED array designed for slim industrial and automotive lighting applications. This LED array is engineered to provide high light output even at high currents, featuring a uniform distribution of light, excellent thermal stability, and superior contrast, making it perfect for applications that require enhanced visibility and safety.

The LED features a robust SMD epoxy package with a ceramic converter, ensuring durability and reliability in demanding environments. It operates safely at a maximum forward current of 1500mA with a forward voltage of 6.55 V. The device includes two LEDs and four connection pins housed in a compact size with lens dimensions measuring 3.1 x 3.75 x 0.43 mm. Its rectangular lens shape contributes to a broad viewing angle of 120 degrees, delivering optimal illumination coverage.

This white LED offers a luminous flux ranging from 500 to 800 lumens and a brightness level between 174.9 to 249.2 candela, with a color temperature of 6000 K, producing crisp and high-quality light output. The product conforms to IEC 62471:2008 photobiological safety and the AEC-Q101 automotive reliability standards, making it suitable for critical lighting applications.

Common industrial and automotive use cases include integration into vehicle headlamps, low beams, high beams, daytime running lights, fog lamps, cornering lights, bicycle lights, and backup lights. The device is designed to function without an additional lens, enabling more compact and streamlined lighting designs.

The OSLON Black Flat LED series from ams OSRAM offers designers flexibility with its slim profile and exceptional performance. Its low thermal resistance of 4K/W ensures efficient heat dissipation for reliable long-term operation even under elevated current loads.

Robust SMD epoxy package with ceramic converter for durability. High brightness with UX: 3 chip technology for efficient light output. Low thermal resistance (4 K/W) for effective heat management. Wide operating range for automotive and industrial lighting applications.

Uniform light distribution enhances visibility and safety. Compact size enables slim and high-performance lighting designs. Compliant with IEC 62471:2008 and AEC-Q101 automotive standards. Ideal for headlights, fog lights, running lights, and backup lighting.
