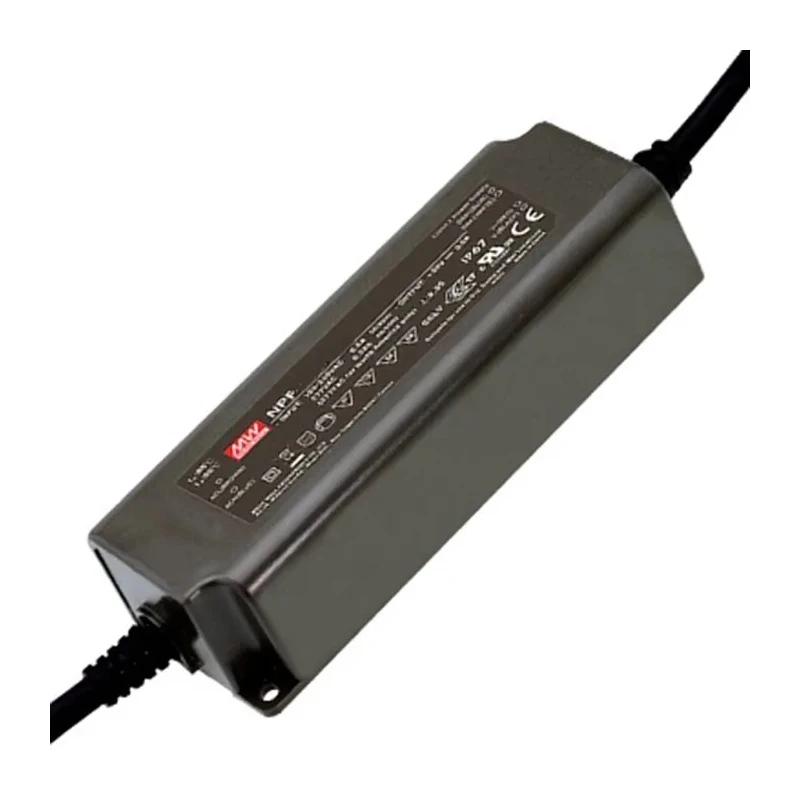

MEAN WELL 120W IP67 5 Output Dimmable Constant Voltage LED Driver, 36V, 3.4A, PWM Resistance Control

MEAN WELL NPF-120D-36 is a high-performance 120W dimmable constant voltage LED driver rated IP67, designed to power LED lighting systems with 5 output channels delivering 36 volts at 3.4 amperes. Ideal for industrial, commercial, and outdoor lighting applications, it is engineered to withstand dusty, humid, and wet environments.

The driver incorporates a built-in 3-in-1 dimming functionality supporting resistance, PWM signal, and 0-10Vdc dimming options, allowing flexible control of light intensity. Its universal AC input range from 90Vac to 305Vac with active power factor correction ensures efficient operation and minimized energy losses.

Constructed with a fully encapsulated design using flame retardant 94V-0 plastic and silicone potting, this device offers robust protection against vibration up to 5G and optimizes heat dissipation. The enclosure features IP67 protection for ingress resistance, making it suitable for demanding environments such as outdoor fixtures, signage, and architectural lighting.

Safety and reliability are assured by compliance with international standards including UL8750, CSA, ENEC, CE, CB, and SELV, along with integrated protections against short circuit, over current, over voltage, and over temperature conditions. Operation is passive cooled by free air convection within a temperature range from -40°C to +70°C without requiring additional cooling.

The IP67 rating combined with class II power unit design and double insulated weather-resistant cables enables versatile installation options in both wet and dry locations. This LED driver is suited for various industrial, laboratory, construction, HVAC, and manufacturing lighting systems demanding dependable performance.

Provides high efficiency up to 95% with low no-load power consumption below 0.15W. Fully encapsulated in IP67 rated housing suitable for wet, damp, and dry locations. Built-in 3-in-1 dimming function including 0-10V, PWM signal, and resistance control.

Designed with active PFC function for stable power input ranging from 90 to 305Vac. Equipped with protection against short circuit, over current, over voltage, and over temperature. Operating temperature range from -40°C to +70°C for harsh environment applications.

Constructed with flame retardant plastic and silicone potting for anti-vibration up to 5G and enhanced heat dissipation. Complies with multiple safety standards such as UL, CE, CB, ENEC, and SELV. Browse our selection of industrial LED drivers including the MEAN WELL NPF series to find reliable power solutions for your lighting design projects.
