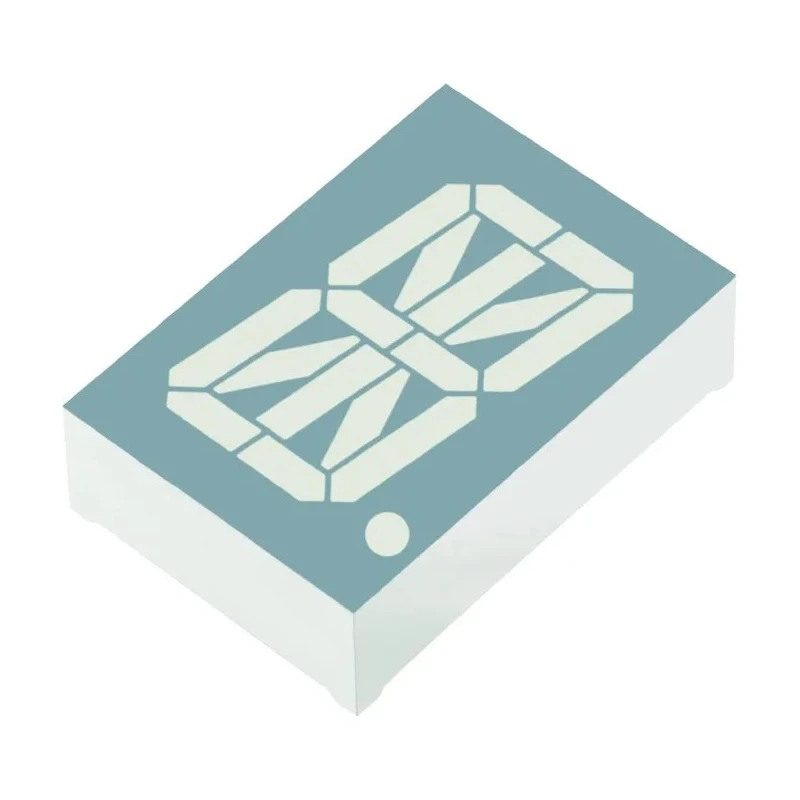

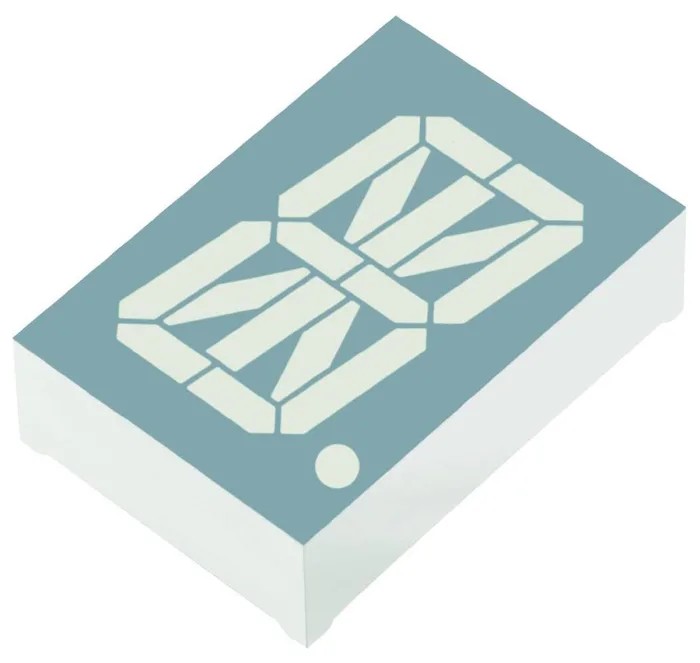

Kingbright 1 Digit 16 Segment Anode Red LED Display 30.5 mm Character Height PSA12-11SURKWA

Kingbright PSA12-11SURKWA is a high-contrast, single digit 16 segment LED display designed for industrial, laboratory, and electronic control applications. Featuring a 30.5 mm (1.2 inch) character height, this through-hole mounted display offers clear and precise alphanumeric representation using red LEDs with a luminous intensity of 63mcd, suitable for diverse environmental conditions ranging from -40°C to 85°C.

The display utilizes an anode common connection configuration and operates at a forward voltage of approximately 2.5V with a forward current of 30mA, maintaining low power dissipation at 150mW to ensure energy efficiency and prolonged device life. The decimal point is positioned to the right side, supporting numeric and alphanumeric displays with enhanced clarity.

The mechanical design includes a grey face with white illuminated segments and external dimensions of 27.5 mm width, 11.5 mm height, and 40 mm depth, allowing easy installation in electronic panels and devices using the through-hole mounting method. This product complies with RoHS standards, guaranteeing environmental safety.

This LED display module is ideal for use in industrial control panels, electronic instrumentation, measurement and control equipment, and laboratory devices that require clear visual numeric and alphanumeric indication under varying ambient conditions.

This is a single digit 16 segment alphanumeric LED display. Mount type is through-hole for reliable PCB mounting. Luminous intensity of 63mcd ensures visible output. Wide operating temperature of -40°C to 85°C suits harsh environments.

Low power consumption at 150mW power dissipation. Red LED color with 630nm dominant wavelength provides vibrant display. External dimensions: 27.5 mm width, 11.5 mm height, 40 mm depth. Decimal point located on the right side for numeric displays.

This Kingbright 16 segment LED Display offers robust and reliable alphanumeric output for electronic display applications. Explore more electronic components and display modules at EnvMart for industrial and laboratory automation solutions.
