| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3mm |
| Model | BZX84-B8V2,215 |
| Mount Type | Surface |
| Series | BZX84B |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 700nA |
| Nominal Zener Voltage Vz | 8.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 15Ω |
| Typical Voltage Temperature Coefficient | 4.6mV/°C |

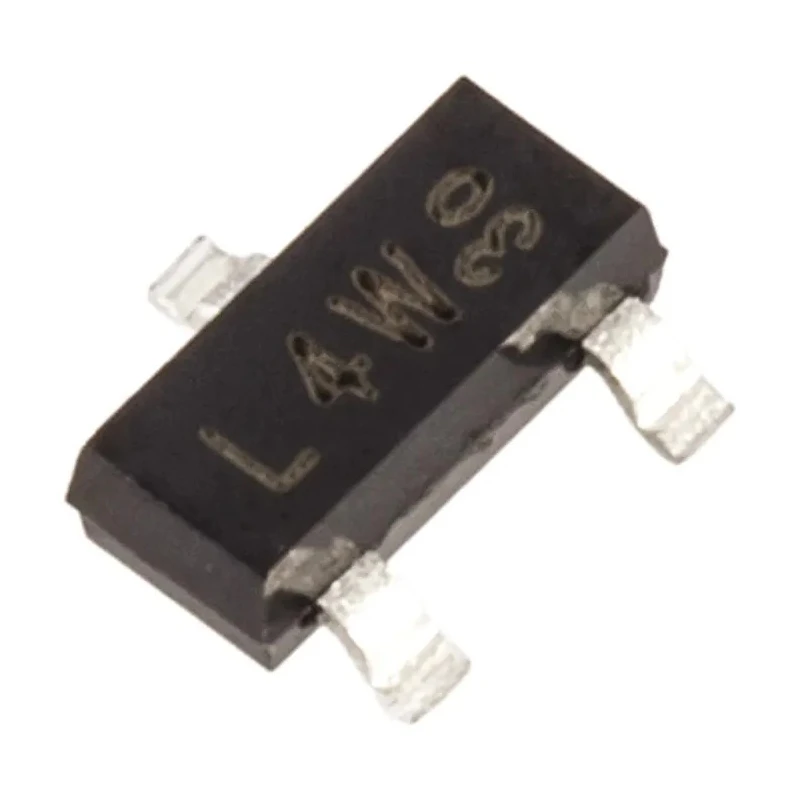

Nexperia BZX84-B8V2,215 is a high precision 1.82 V Zener diode designed for voltage regulation and protection duties in electronic circuits. This single diode is packaged in a compact SOT-23 surface mount housing with three pins, enabling effective integration into modern PCB layouts.
The diode supports up to 250 mW maximum power dissipation and has a nominal Zener voltage of 8.2 V with a 2% tolerance, providing stable voltage regulation within industrial and automotive environments. Its maximum reverse leakage current is very low at 700 nA, enhancing circuit reliability.
Featuring a test current of 5 mA and a maximum Zener impedance of 15 ohms, the device offers precise voltage control. It comfortably operates within temperatures from -65°C to 150°C, making it suitable for harsh automotive and industrial conditions. Compliance with the AEC-Q101 automotive standard ensures its quality and durability.
The diode's small form factor of 1.1 mm height and 3 mm length helps in space-saving PCB designs. Designed and manufactured in China, this device is recommended for electronic, industrial, and automotive applications requiring stable voltage reference and regulation.
Nominal Zener voltage is 8.2 V suitable for voltage regulation applications. Surface mount package type SOT-23 with 3 pins for compact PCB design. Maximum power dissipation of 250 mW ensures reliable operation under load.
Test current is 5 mA with maximum Zener impedance of 15 ohms. Maximum reverse leakage current is 700 nA ensuring minimal leakage in circuits. Operating temperature range from -65°C to 150°C supporting automotive grade applications.
Height and length are 1.1 mm and 3 mm respectively for PCB footprint planning. Complies with automotive standard AEC-Q101 for quality and reliability.
EnvMart offers a comprehensive range of semiconductor components, including the Nexperia BZX84-B8V2,215 Zener diode, suited for various electronic and industrial uses. Explore our extensive catalog for quality components tailored to your project requirements.
