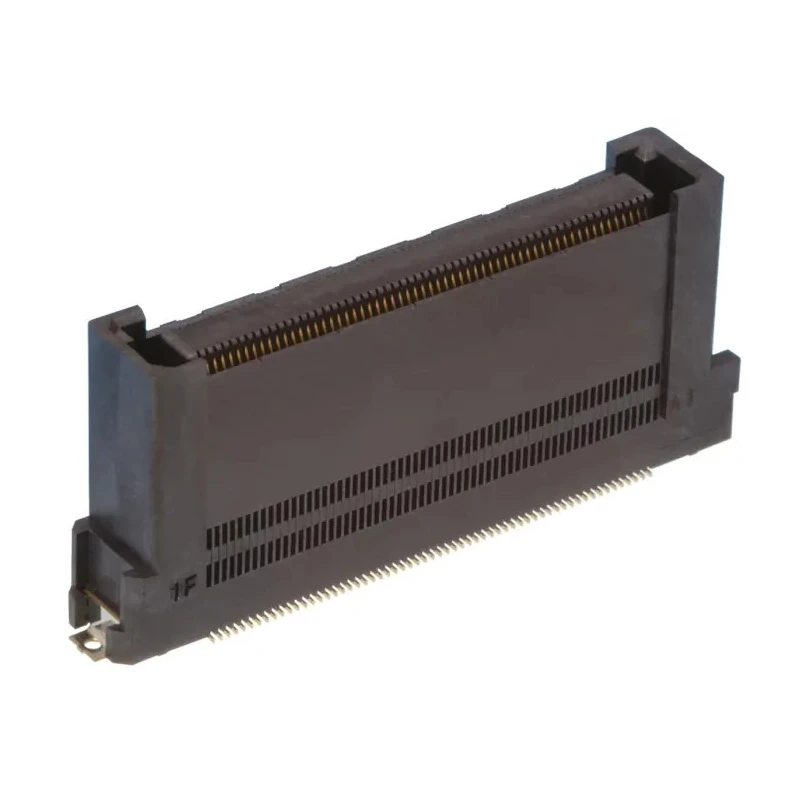

Hirose FunctionMAX FX20 Series Straight Surface PCB Socket 100-Contact 2 Row 0.5 mm Pitch Solder

Free Delivery in India | Lowest Global Shipping Charges

Hirose FunctionMAX FX20 Series Straight Surface PCB Socket 100-Contact 2 Row 0.5 mm Pitch Solder

Name: Hirose FunctionMAX FX20 Series Straight Surface PCB Socket 100-Contact 2 Row 0.5 mm Pitch Solder
Brand: Hirose
SKU: 381086
Price: 5.58 USD
Availability: InStock



Category PCB Socket Brand Hirose Condition New

Specifications

Country of Origin	Malaysia
Voltage	50V
Brand	Hirose
Orientation	Straight
Current	500mA
Model	FX20
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	FunctionMAX FX20
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	15mm

Key Features

Features a unique floating structure to absorb mounting misalignment errors.
Capable of handling a current capacity of 500mA per contact.
Constructed with a liquid crystal polymer housing for durability and stability.
Includes self-cleaning dual beam contacts plated with gold for excellent conductivity and vibration resistance.
Operates reliably between -55°C and 85°C temperature range.
Designed for surface mount with straight orientation suitable for industrial and automotive applications.
Supports a voltage rating of 50V compatible with multiple electronic devices.
Stacking height of 15 mm enables compact multi-layer board assemblies.

Product Description

Hirose FX20-100S-0.5SV10 FunctionMAX FX20 Series Straight Surface PCB Socket is a high-performance 100-contact, 2-row board-to-board connector with a fine 0.5 mm pitch designed for precise and reliable electrical connections. The socket features a floating structure embedded within its housing that self-aligns contacts during mating to absorb positional errors and prevent solder cracking or misalignment issues.

The connector is made with a liquid crystal polymer housing and bronze contacts plated in gold, providing excellent durability, conductivity, and corrosion resistance. It supports a current capacity of 500mA per contact and a voltage rating of 50V. The dual beam contact design ensures high resistance to vibration and stable conductivity, vital for industrial and automotive environments.

The FX20 socket has a stacking height of 15 mm and a straight orientation for versatile surface mounting on printed circuit boards. Operating temperature ranges from -55°C to 85°C suit harsh industrial conditions. These connectors are commonly used in automotive units, broadcast equipment, base station transceivers, industrial and measuring instrumentation, medical devices, printers, projectors, and smart meters.

The FunctionMAX range provides advanced floating technology to enable safe mating by compensating mounting misalignments and reducing mechanical stress, thus increasing reliability and lifespan.

Unique floating structure absorbs mounting misalignment to avoid damage. Reliable dual beam contacts offer enhanced vibration resistance. Gold plating on contacts ensures high conductivity and durability. Compact 0.5 mm pitch facilitates high density board assembly.

Surface mount with straight orientation for easy integration. Wide operating temperature range from -55°C up to 85°C. Suitable voltage of 50V supports various electronic applications. Ideal for automotive, industrial, and medical device applications.

Manufactured in Malaysia with strict quality controls. Explore the comprehensive range of Hirose connectors and PCB Sockets from EnvMart for your industrial and electronic component needs.
