STMicroelectronics Operational Amplifier 2-Channel, 400 kHz, 5.5V, 8-Pin DFN TSZ122IQ2T

Free Delivery in India | Lowest Global Shipping Charges

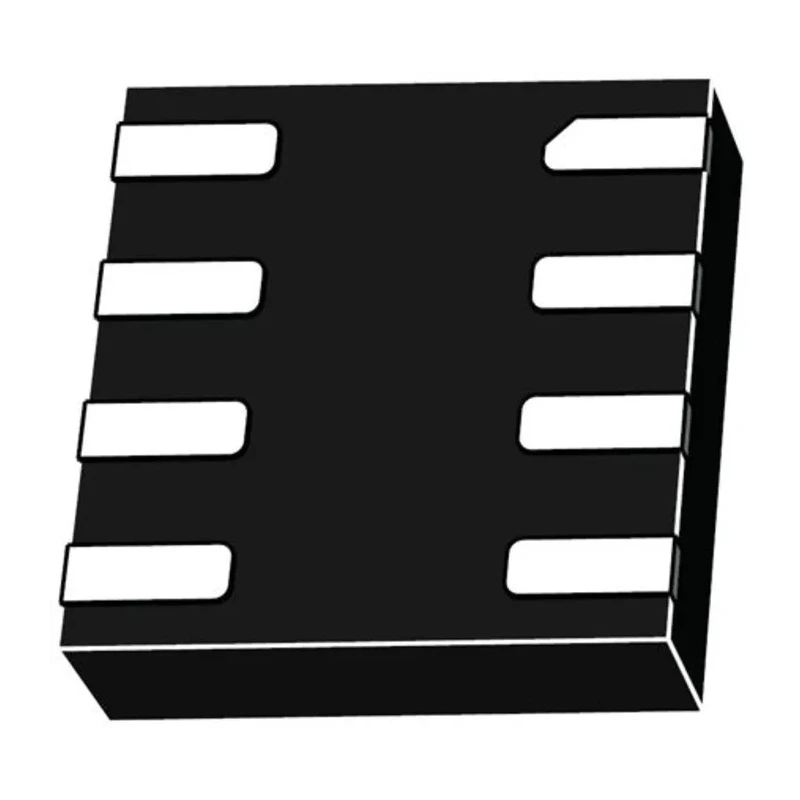

STMicroelectronics Operational Amplifier 2-Channel, 400 kHz, 5.5V, 8-Pin DFN TSZ122IQ2T

Name: STMicroelectronics Operational Amplifier 2-Channel, 400 kHz, 5.5V, 8-Pin DFN TSZ122IQ2T
Brand: STMicroelectronics
SKU: 379571
Price: 2.02 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	0.55mm
Length	2.15mm
Model	TSZ122IQ2T
Width	2.15mm
Mount Type	Surface
Series	TSZ122
Output Current	4mA
Maximum Operating Temperature	125°C
Package Type	DFN
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.8V
GBP - Gain Bandwidth Product	400kHz
Input Bias Current	300 pA
Slew Rate	0.19V/μs
ESD high tolerance	4 kV (HBM)
Input Offset Current	600 pA
Extended temperature range	-40°C to +125°C
High accuracy and stability	offset voltage 5 μV max

Key Features

Dual-channel operational amplifier with gain bandwidth product of 400 kHz.
Operates from 1.8 V to 5.5 V supply voltage range.
Extremely low input offset voltage ensuring precise signal amplification.
Low power consumption at maximum 40 μA with rail-to-rail input and output.
Designed with an 8-pin DFN surface mount package for compact PCB integration.
Operating temperature range from -40°C to +125°C suitable for harsh environments.
Automotive grade compliant meeting AEC-Q100 standards.
High electrostatic discharge protection rated at 4 kV (HBM).

Product Description

STMicroelectronics TSZ122IQ2T is a very high accuracy, zero drift, micro-power operational amplifier optimized for precision signal processing in industrial, automotive, and consumer electronics. It features extremely low offset voltage (maximum 5 μV) and stable performance over temperature extremes from -40°C to +125°C.

This dual-channel operational amplifier integrates a rail-to-rail input and output stage, allowing extended input common mode voltage range and output swing near the supply rails. It operates on a 1.8 V to 5.5 V supply voltage with a low quiescent current of 40 μA at 5 V, making it ideal for battery-powered and low-power applications.

The device is supplied in a compact 8-pin DFN surface mount package with dimensions of 2.15 mm x 2.15 mm and a height of 0.55 mm, which provides excellent space savings on densely packed circuit boards.

Dual-channel configuration with gain bandwidth product of 400 kHz. Low input bias current of 300 pA and input offset current of 600 pA. Slew rate of 0.19 V/μs ensuring accurate transient response. Output current capability up to 4 mA suitable for driving loads.

Meets RoHS compliance and automotive standard AEC-Q100 for reliable use in automotive systems.

This amplifier is well-suited for precision sensor interfaces, data acquisition systems, signal conditioning, and other applications requiring stable and accurate amplification under varied operating conditions. The high electrostatic discharge tolerance of 4 kV (HBM) enhances device robustness during handling and in-field use.

STMicroelectronics offers detailed technical documentation, reference designs, and compliance certifications to support design integration of the TSZ122IQ2T operational amplifier. Explore and select products in the Operational Amplifier category at EnvMart for reliable components optimized for demanding electronics and industrial applications.
