Microchip Operational Amplifier 2-Channel Surface Mount DFN Package 1 MHz Gain Bandwidth 1.8 to 6 V MCP6002-E/MC

Microchip MCP6002-E/MC operational amplifier is a compact surface mount dual-channel amplifier with a 1 MHz gain bandwidth product, designed for precision and low power applications. It operates on a wide voltage range from 1.8 V to 6 V, making it suitable for various low voltage electronic systems in industrial, automotive, and consumer electronics.

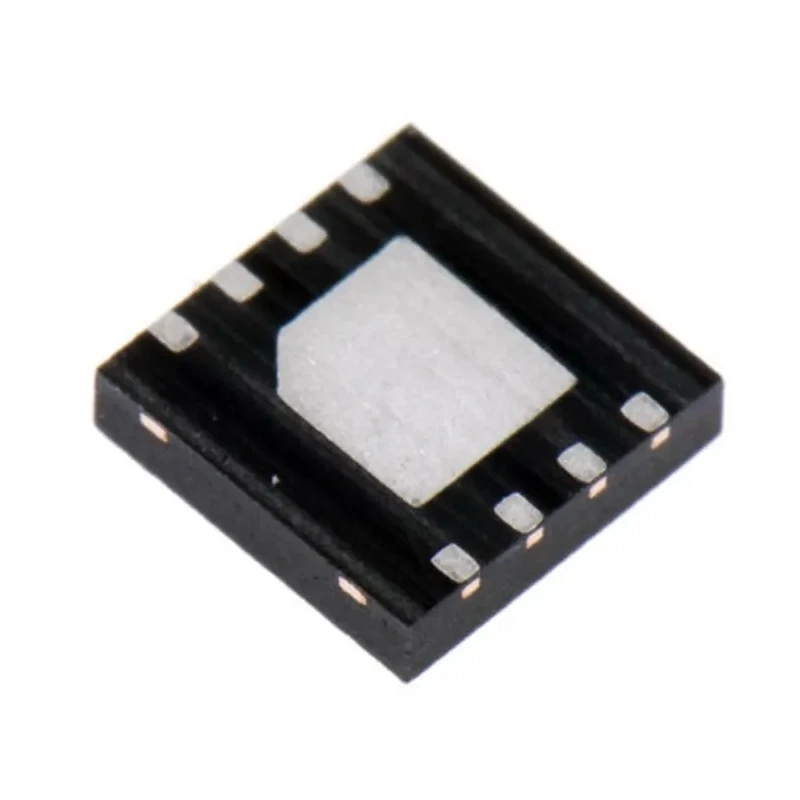

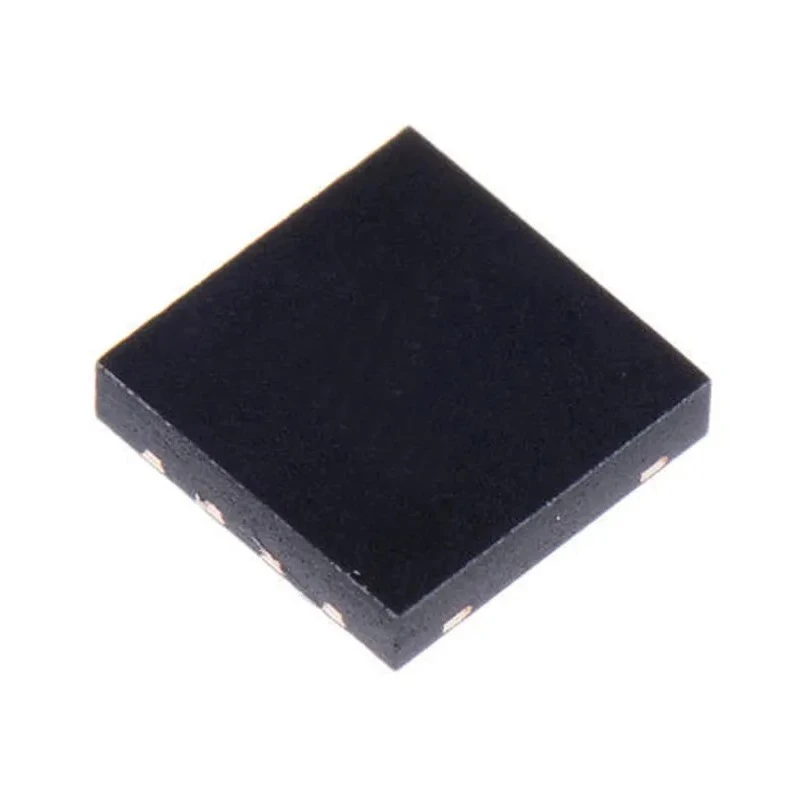

This device features an 8-pin DFN package type, offering a small footprint with dimensions of 2 mm by 3 mm and a height of 0.95 mm, ideal for space-constrained designs. It supports operation in harsh conditions with a temperature range from -40°C up to 125°C. The input bias current is exceptionally low at 1 picoampere, along with an input offset voltage of 4.5 mV, which ensures accurate amplification of signals.

The slew rate of 0.6 V/μs and output current capability up to 23 mA allow this operational amplifier to handle moderate dynamic signals and loads effectively. The product is certified with ESD protection of 4 kV or higher on all pins, conforming to HBM and MM standards, ensuring robust handling in manufacturing and application environments.

Typical applications include signal conditioning, filtering, and amplification in electronic circuitry used in industrial control, instrumentation, medical devices, and consumer products. The MPC6002 series is known for its reliability and ease of integration in modern PCB designs.

This operational amplifier features a dual channel configuration ideal for compact electronics designs. It comes in an 8-pin DFN package optimized for space saving in PCB layouts. The device supports wide operating temperatures ranging from -40°C to 125°C for industrial usage.

The amplifier has a low input bias current of 1 pA and a low input offset voltage of 4.5 mV ensuring precision. It offers a slew rate of 0.6 V/μs suitable for many signal conditioning applications. The maximum output current is 23 mA, enabling it to drive moderate loads.

The package provides ESD protection of at least 4 kV on all pins meeting industry standards. Voltage supply range from 1.8 V minimum to 6 V maximum supports battery and low voltage systems. The compact dimensions of 2 mm length x 3 mm width x 0.95 mm height enhance integration options.
