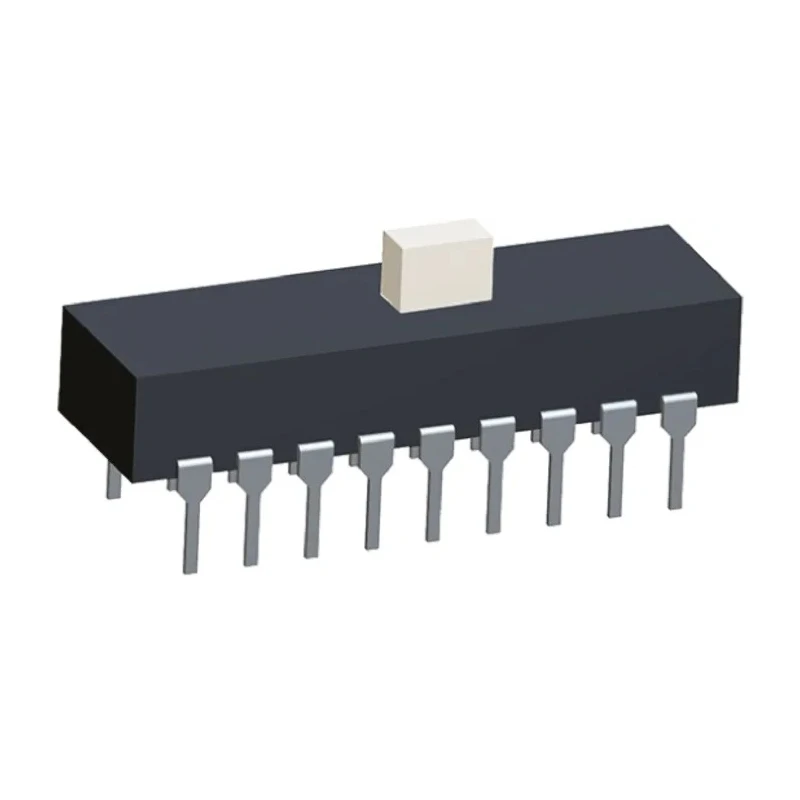

TE Connectivity PCB Slide Switch DPDT Latching 300mA Nylon Actuator ASE Series 3-1825010-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature Range | -40°C +80°C, making them particularly suited to harsh environments |
| Length | 25.4mm |
| Width | 7.37mm |
| Mount Type | PCB |
| Series | ASE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | REACH, ELV, RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 300mA |
| Mechanical Life | 15000Cycles |
| Contact AC Voltage | 115V ac |
| Electrical Life | 10000 operations |
| Actuator Material | Nylon |
Key Features
- This switch features a DPDT contact configuration for controlling two separate circuits simultaneously.
- It uses a latching switch operation, ensuring stable on-on switching with no momentary faults.
- Manufactured from durable nylon actuator material suitable for harsh environments.
- This PCB mount slide switch operates at up to 28V DC and 115V AC contact voltages.
- The switch supports a maximum contact current of 300mA, ideal for control and instrumentation circuits.
- It has a compact size with length 25.4mm and width 7.37mm for standard PCB layouts.
- It offers a long mechanical life rated at 15,000 cycles and electrical life of 10,000 operations.
- Operating temperature ranges from -40°C to 80°C, suitable for challenging industrial conditions.
Product Description
TE Connectivity 3-1825010-7 PCB Slide Switch DPDT Latching with 300mA contact current and nylon actuator from the ASE series is engineered for telecom grade electronic and industrial applications requiring reliable switching performance on printed circuit boards.
This double-pole double-throw (DPDT) slide switch provides the capability to switch two independent circuits in an On-On configuration, utilizing latching action to maintain circuit states securely until toggled.
The switch body features a durable nylon actuator, designed for robust handling and long service life even in harsh temperature conditions ranging from -40°C to +80°C. It is constructed to meet rigorous standards including REACH, ELV, and RoHS, ensuring both environmental compliance and component safety.
With solder terminal type for through-hole PCB mounting, the switch supports contact voltages of 28V DC and 115V AC, and can safely carry currents up to 300mA. The length of 25.4mm and width of 7.37mm make it compatible with standard PCB footprints.
The mechanical design guarantees at least 15,000 cycles of reliable operation while the electrical life is rated for 10,000 switching operations, making it suitable for instrumentation, test equipment, and communication devices.
This latching slide switch features a make-before-break contact configuration ensuring no momentary open circuits when toggling between contacts, enhancing reliability in precision electronic controls.
This product includes a TE Connectivity ASE series slide switch with nylon actuator. Suitable for industrial, telecommunications, instrumentation, and test measurement applications requiring precise PCB mounted switch control.
It is highly suitable for harsh or variable environmental industrial conditions. Meets global electrical and environmental compliance standards. Offers long durability with mechanical and electrical life ratings. Explore our Electronics & Electricals category for more high-quality PCB Slide Switches and related components designed for demanding industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double-pole double-throw (DPDT) contact configuration, allowing it to control two separate circuits simultaneously.
It supports a maximum contact current of 300mA, making it suitable for control and instrumentation circuits.
The switch operates at contact voltages of up to 28V DC and 115V AC.
It operates within a temperature range of -40°C to 80°C, suitable for harsh environments.
The mechanical life of this switch is rated for 15,000 cycles, ensuring reliable operation over time.
It uses a PCB mount type with solder terminals for through-hole mounting.
The actuator is made from durable nylon material, designed for robust handling in various conditions.
This model has an electrical life rating of 10,000 operations, suitable for frequent use.
Yes, it meets several standards including REACH, ELV, and RoHS, ensuring environmental compliance.
The switch has a length of 25.4mm and a width of 7.37mm, making it compatible with standard PCB layouts.
This switch features a latching operation, which maintains the circuit state securely until toggled.
It is suitable for industrial, telecommunications, instrumentation, and test measurement applications requiring precise control.
