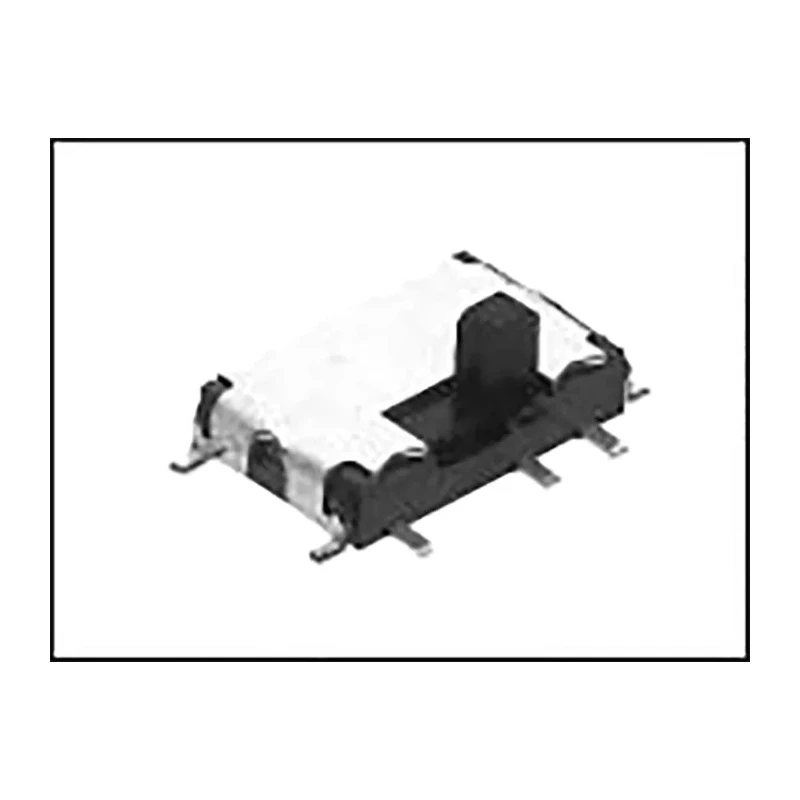

Alps Alpine Surface Slide Switch DPDT Latching 300mA SSSS820201
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Length | 6.7mm |
| Model | SSSS820201 |
| Depth | 3.4mm |
| Width | 4.1mm |
| Mount Type | Surface |
| Series | SSSS8 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Switch Contact Current | 300mA |
| Mechanical Life | 10000Cycles |
Key Features
- DPDT contact configuration offering versatile switching.
- Latching switch operation for reliable state retention.
- Rated for 300mA contact current suitable for signal or low-power device switching.
- Surface mount for easy integration on printed circuit boards.
- Solder terminal type ensures secure electrical connectivity.
- Compact design with 6.7mm length, 4.1mm width, and 3.4mm depth.
- Mechanical life of 10,000 cycles ensures durability in operation.
- Temperature range from -40°C to 85°C for robust performance in varied environments.
Product Description
Alps Alpine SSSS820201 is a precision surface slide switch designed for compact and high-density electronic applications. Featuring DPDT (Double Pole Double Throw) contact configuration, the switch provides reliable multi-circuit switching, making it suitable for signal routing and device control tasks. Its latching operation maintains switched state after actuation, allowing for stable position retention critical for industrial, laboratory, and commercial electronics.
The SSSS820201 supports a contact current of up to 300mA, ensuring compatibility with both signal-level and low-power loads. Its surface-mount form factor is optimized for PCB assembly, facilitating automated placement and secure soldering. The solder terminal type further assures robust connection integrity during usage and handling.
Its compact footprint - measuring 6.7mm in length, 4.1mm in width, and 3.4mm in depth - makes it an excellent choice for miniaturized equipment, portable devices, and densely populated circuit boards. The switch offers a mechanical life of 10,000 cycles, supporting long-term operational reliability in manufacturing, instrumentation, and industrial control environments.
DPDT contact configuration allows switching between two independent circuits. Latching operation preserves switch state after actuation for process control. Surface-mount design simplifies PCB integration and reduces space requirements.
300mA contact rating enables flexible use across signal and power applications. Wide operating temperature range (-40°C to 85°C) supports industrial deployment. Solder terminals ensure secure electrical and mechanical anchoring on boards.
RoHS compliant for regulated industries. 10,000-cycle mechanical life ensures switch longevity in usage cycles.
This Alps Alpine slide switch is commonly employed in industrial electronics, laboratory instrumentation, portable consumer devices, telecom and networking hardware, and automation systems where space-saving, reliable switching is required.
Explore more PCB switches, slide switches, and Alps Alpine components in EnvMart's Electronics & Electricals category for efficient circuit control and device integration.
Explore more products in our PCB Slide Switch category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile multi-circuit switching.
It is rated for a maximum contact current of 300mA, suitable for signal-level and low-power applications.
This model measures 6.7mm in length, 4.1mm in width, and 3.4mm in depth, making it compact for high-density applications.
The Alps Alpine SSSS820201 operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
It features a surface mount design, which simplifies integration onto printed circuit boards and facilitates automated placement.
This model utilizes solder terminals, ensuring secure electrical connectivity and mechanical anchoring on circuit boards.
The mechanical life of the switch is rated at 10,000 cycles, indicating its longevity in operational use.
It features a latching operation, which maintains the switched state after actuation for reliable position retention.
Yes, it is RoHS compliant, which is important for regulated industries and environmental considerations.
This slide switch is commonly employed in industrial electronics, laboratory instrumentation, portable consumer devices, and telecom hardware.
It belongs to the SSSS8 series, which includes various surface mount slide switches designed for compact applications.
Key features include DPDT contact configuration, latching operation, a 300mA contact rating, and a wide operating temperature range of -40°C to 85°C.
