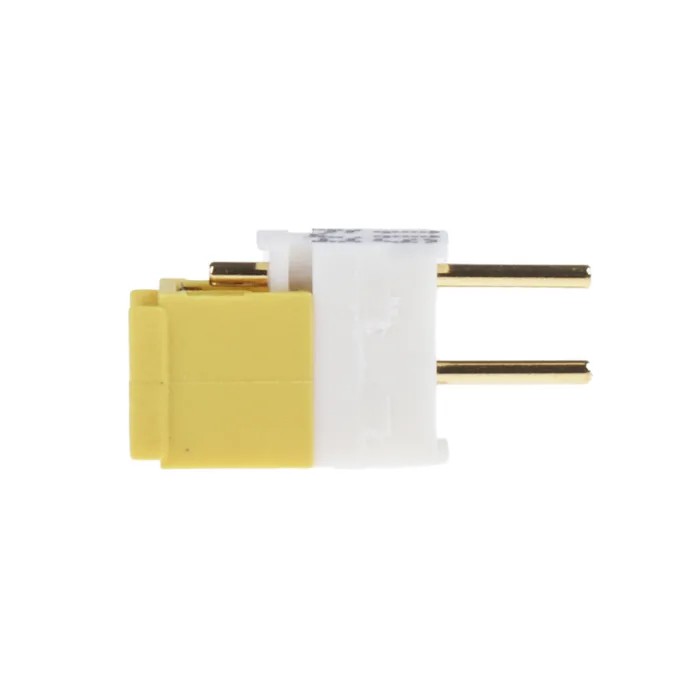

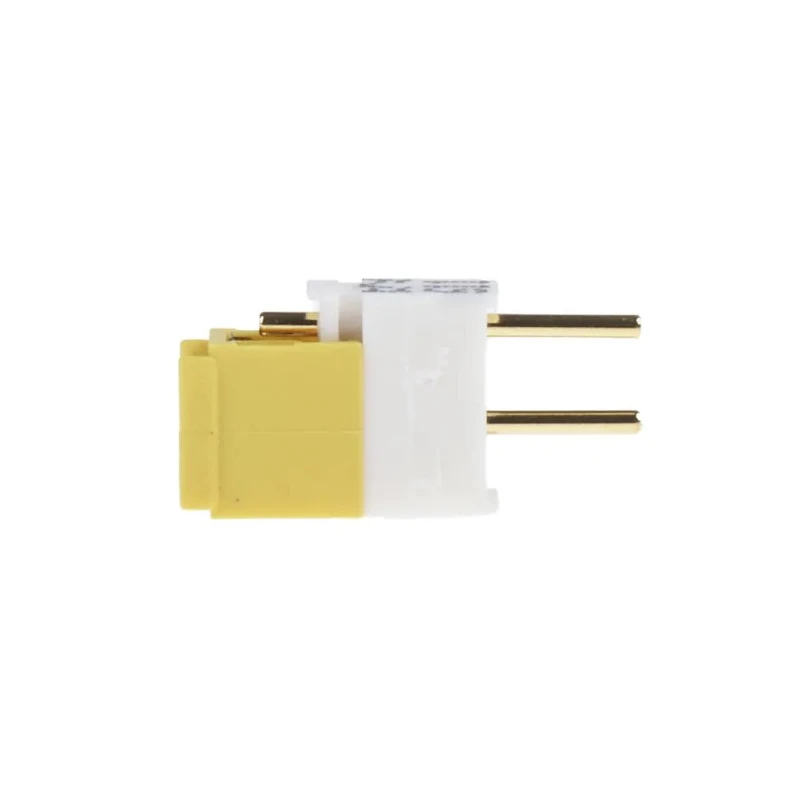

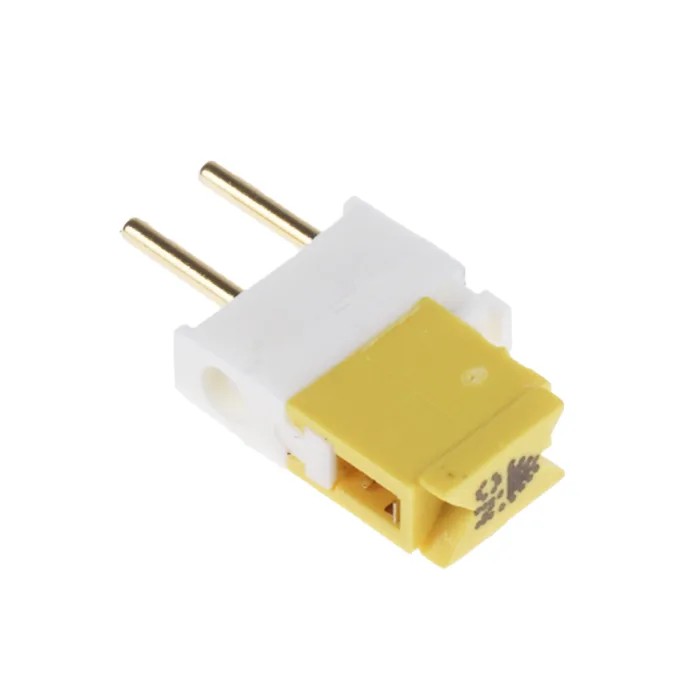

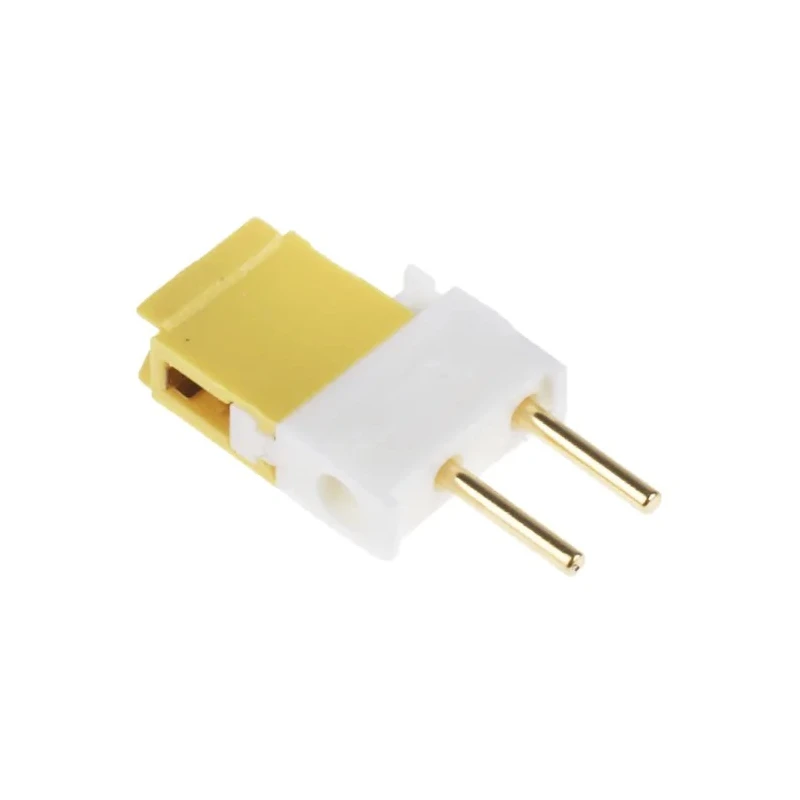

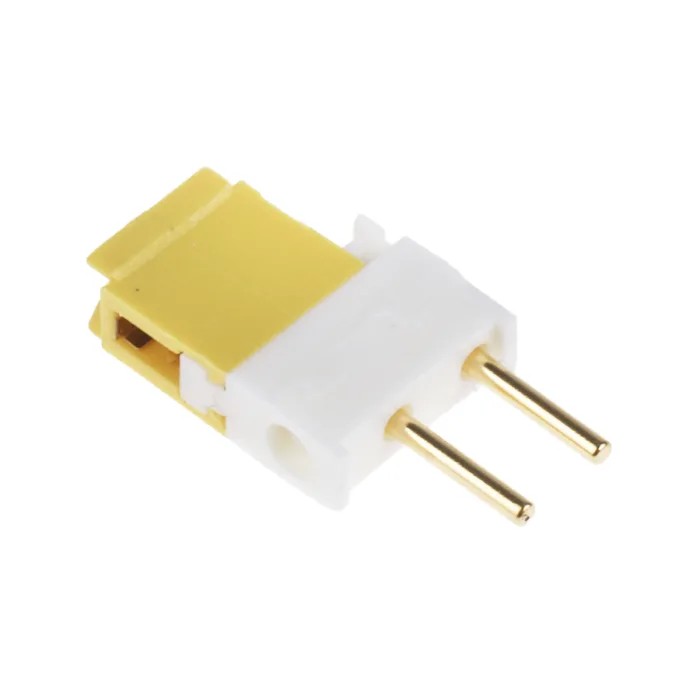

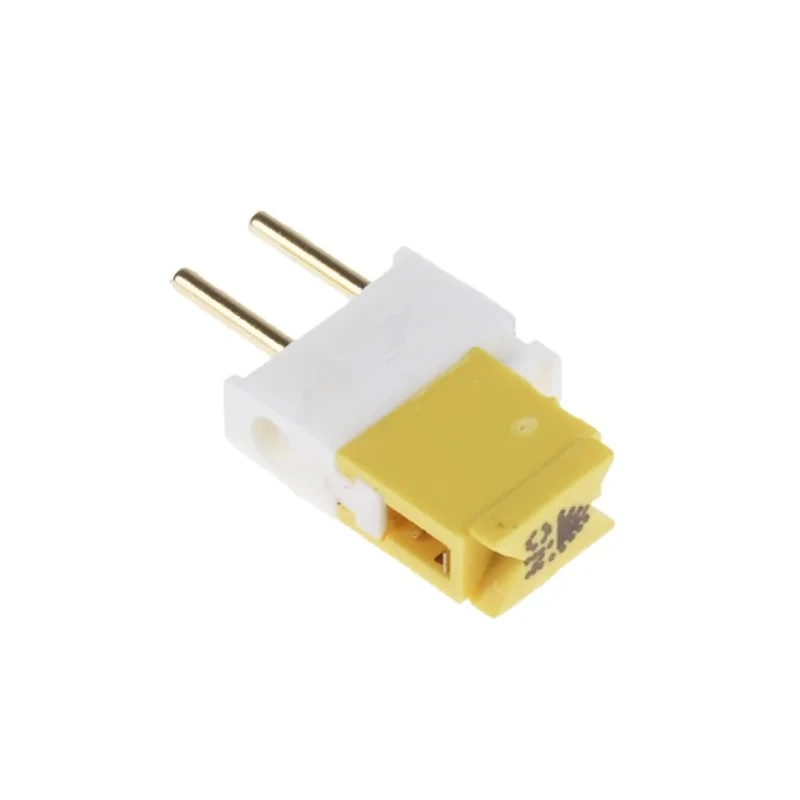

ERG Slide Jumper Switch, Actuator Type Slide, 2.54mm Pitch, MPN JSA4 01 G1
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | ERG |
| Model | JSA4 01 G1 |
| Actuator Type | Slide |
Key Features
- Eliminates the need for parking pins on the PCB or exposed bare pins.

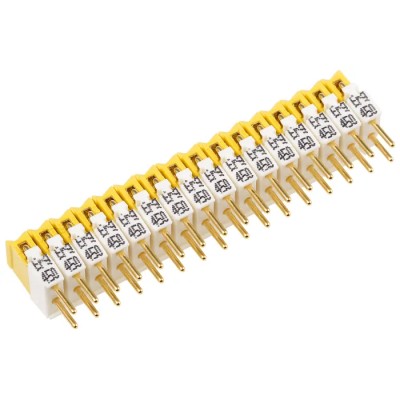

- Available in single or 16 way breakable versions for flexible configurations.
- Features hard gold plated wiper switches with a 4 point contact design for durability.
- Offers positive location with screwdriver actuation and tactile click feedback.
- Compatible with hand and flow soldering processes, minimizing solder wicking.
- Recommended PCB hole diameter is 0.8mm for single switches and 1.0mm for multipole variants.
- Ideal for diverse electronics applications requiring compact, reliable jumper switching.
Product Description
ERG JSA4 01 G1 Slide Jumper Switch is designed for precision ON/OFF switching of PCB track signals with a standardized 2.54mm pitch. This switch type serves as a superior alternative to conventional jumper links by eliminating the necessity for parking pins on the PCB and avoiding exposed bare pins, enhancing safety and reliability in circuit design.
The switch is available in both single and breakable 16 way configurations, allowing adaptability in varying circuit requirements. It uses a hard gold plated wiper mechanism featuring a 4 point contact design, which ensures consistent electrical connectivity and resists corrosion for extended service life.
The positive location is assured by a slide actuator type that provides tactile feedback via a positive click and interaction using a screwdriver for easy installation and adjustment. This design supports both hand soldering and automated flow soldering with minimal solder wicking, preserving PCB integrity. The recommended PCB hole diameters are 0.8mm for single switches and 1.0mm for multipole switches to optimize soldering quality.
This jumper switch is ideally suited for electronic circuit applications in industrial automation, consumer electronics, and embedded systems where reliable switching and compact design are critical. Its design allows for easy integration into various PCB assemblies while ensuring high-performance signal routing control.
Eliminates bare exposed pins and parking pins on PCB. Single or 16 way breakable design. Hard gold plated wiper switches with 4 point contact. Positive location with screwdriver actuation and tactile click. Compatible with hand and flow soldered PCBs.
Recommended PCB hole diameter 0.8mm (single), 1.0mm (multipole). Reliable performance for electronics and automation uses.
Explore EnvMart’s extensive selection of electronic switches for your industrial and laboratory requirements. Find precision switch solutions from trusted brands like ERG and optimize your PCB designs with advanced jumper options.
Explore more products in our PCB Slide Switch category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ERG Slide Jumper Switch has a standardized pitch of 2.54mm, making it suitable for PCB track signal switching.
This model is available in both single and 16 way breakable configurations, allowing for flexible circuit adaptations.
It uses a slide actuator type, which provides tactile feedback through a positive click when operated with a screwdriver.
The recommended PCB hole diameter is 0.8mm for single switches and 1.0mm for multipole variants to optimize soldering quality.
This switch is compatible with both hand soldering and automated flow soldering processes, minimizing solder wicking.
It features a hard gold plated wiper mechanism with a 4 point contact design, which ensures consistent electrical connectivity and resists corrosion.
The switch is manufactured in Taiwan.
It is ideally suited for electronic circuit applications in industrial automation, consumer electronics, and embedded systems.
It eliminates the need for parking pins on the PCB and avoids exposed bare pins, enhancing safety and reliability in circuit design.
The actuator provides tactile feedback via a positive click, which aids in confirming the switch's position during operation.
Its primary function is to provide precision ON/OFF switching of PCB track signals, serving as an alternative to conventional jumper links.
Key features include a slide actuator, customizable configurations, hard gold plating, and compatibility with various soldering methods.
